1. Fuse holder for F1A 250V fuse.
2. Power In - Powercon compatible network input jack.
3. DMX In - 3-pin DMX input.
4. On-board menu - LED display with control buttons. Displays operating mode and other system settings.
5. MIC - Microphone for music control.
6. DMX Out - 3-pin DMX output.
7. Power Out - Powercon compatible power outlet socket.
8. Catch eyelet - The device must be secured with a suitable safety cable against dropping.
The assignment of the connection leads is as follows:
Line
Brown
conductor
Blue
Yellow/Green PRedective
conductor
The pRedective conductor must be connected!

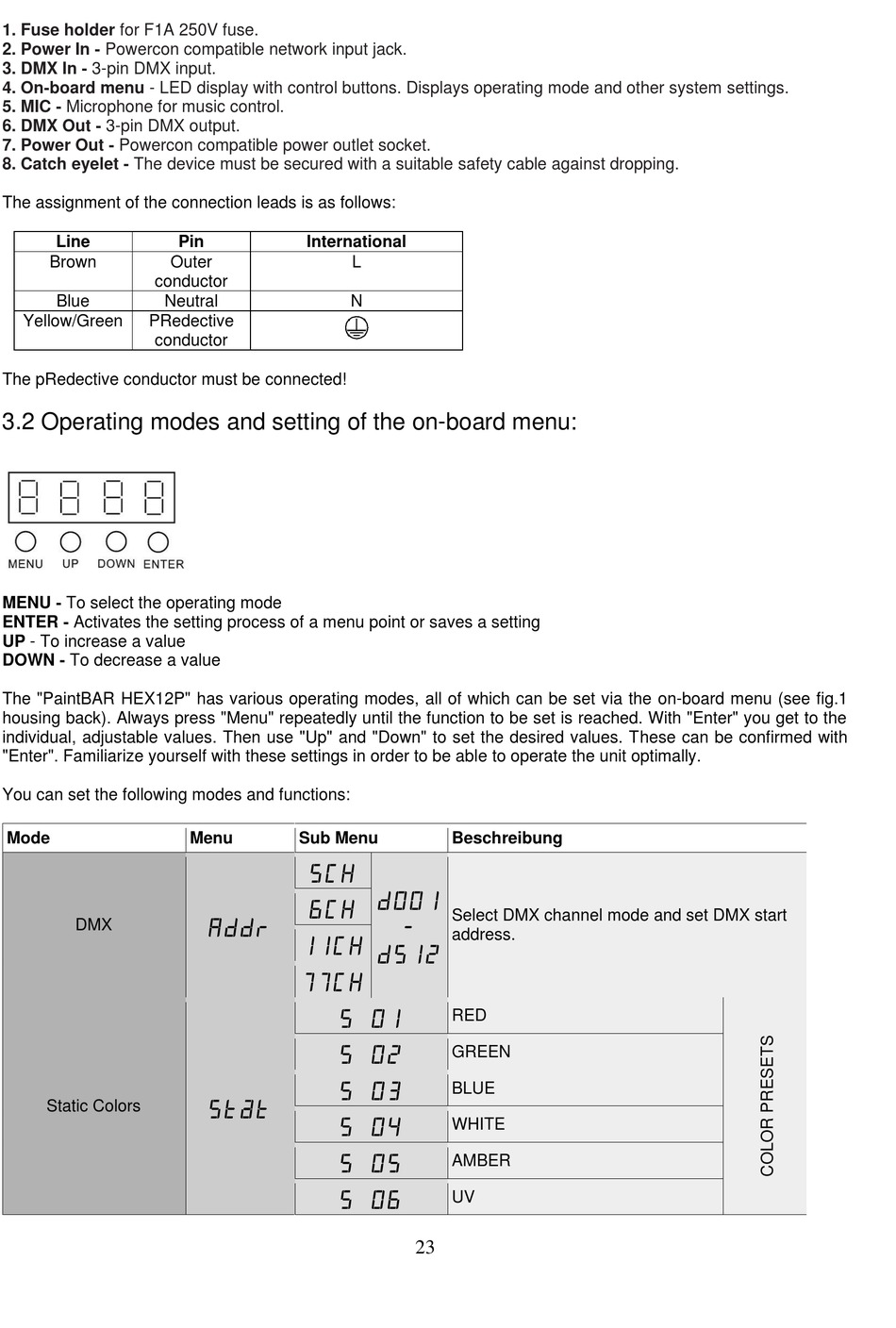

3.2 Operating modes and setting of the on-board menu:

MENU - To select the operating mode
ENTER - Activates the setting process of a menu point or saves a setting
UP - To increase a value
DOWN - To decrease a value
The "PaintBAR HEX12P" has various operating modes, all of which can be set via the on-board menu (see fig.1
housing back). Always press "Menu" repeatedly until the function to be set is reached. With "Enter" you get to the
individual, adjustable values. Then use "Up" and "Down" to set the desired values. These can be confirmed with
"Enter". Familiarize yourself with these settings in order to be able to operate the unit optimally.
You can set the following modes and functions:
Mode
DMX
Static Colors
Pin International
Outer
Neutral
Menu Sub Menu
5CH
6CH
Addr
11CH
77CH
Stat
L
N
Beschreibung
d001
Select DMX channel mode and set DMX start
-
address.
d512
S 01
RED
S 02
GREEN
S 03
BLUE
S 04
WHITE
S 05
AMBER
S 06
UV
