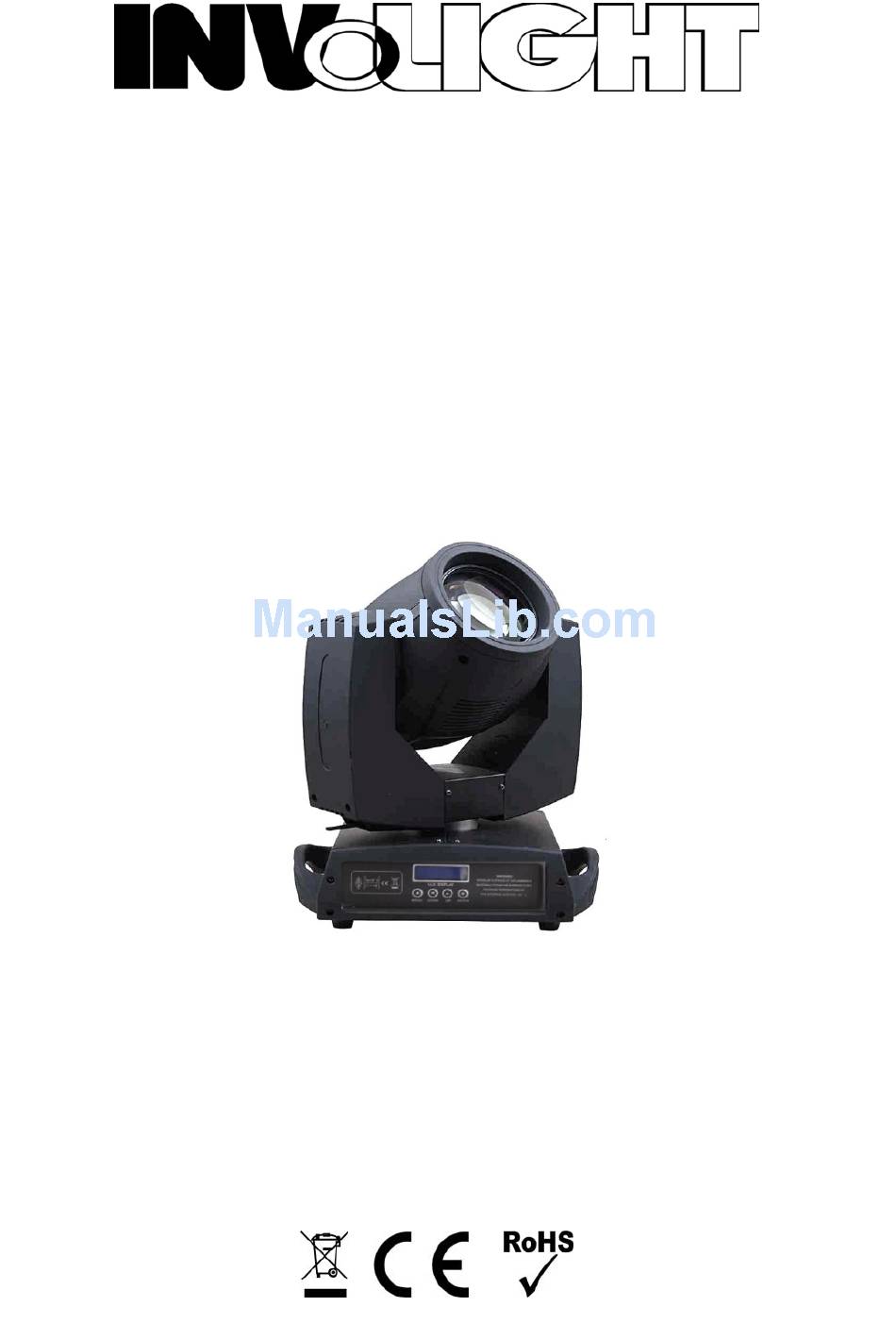

- Page 1 Bedienungsanleitung User manual MH5R Beam www.destilan-deutschland.de...
-
Page 2: Table Of Contents
Table of contents INTRODUCTION ……………………………………………….…………………………..2 SAFETY INSTRUCTIONS…………………………………………………………………2 OPERATING DETERMINATIONS…………………………………………….…………..3 DESCRIPTION OF THE DEVICE…………………………………………………………4 INSTALLATION………………………………………………………………….…………..5 OPERATION……………………………………………………………………….………...6 Stand alone operation…………………………………………………………….…………6 Master slave operation…………………………………………………………….……..…6 DMX controlled operation………………………………………………………….…….…6 Addressing…………………………………………………………………………….…..…6 Control board………………………………………………………………………….…..…6 DMX protocol………………………………………………………………………….…..…7 TECHNICAL SPECIFICATIONS…………………………………………………….……7... -
Page 3: Introduction
CAUTION ! Keep this device away from rain and moisture Unplug mains lead before opening the housing For your own safety, please read this user manual carefully before you initially start-up Every person involved with installation. operation and maintenance of this fixture has to - be qualified - follow the instruction of this manual - consider this manual to be part of the total product... -
Page 4: Installation
Features > Fit with 5R lamp > 16 DMX channels in optional > Static gobo wheel comes 17 gobos with blank > Color wheel comes 14 colors with white > Strobe effect with 1-10 flashes per second > Color change with rainbow effect ,Gobo shaking effect >... -
Page 5: Operation
The earth has to be connected. The device must only be connected with an electric installation carried out in compliance with IEC standards. OPERATION After you connected the effect to the mains, The fixture starts running Stand Alone operation In the stand alone mode, the fixture can be use without controller Master/slave-operation The master/slave-operation enables that several devices can be synchronized and controlled by one master-device... -
Page 6: Dmx Protocol
Factory setting Back to factory setting Yes/no Reset All rest Yes/no D MX-p rot oc o l Channel Value Function 0-255 Pan movement TILT 0-255 Tilt movement PAN FINE 0-255 Pan fine movement TILT FINE 0-255 Tilt fine movement FROST 0-255 Frost effect PAN TILT SPEED... - Page 7 14-20 Gobo 2 21-27 Gobo 3 28-34 Gobo 4 35-41 Gobo 5 42-48 Gobo 6 49-55 Gobo 7 56-62 Gobo 8 63-69 Gobo 9 70-76 Gobo 10 77-83 Gobo 11 84-90 Gobo 12 91-97 Gobo 13 98-104 Gobo 14 105-111 Gobo 15 112-118 Gobo 16...
-
Page 8: Technical Specifications
TECHNICIAL SPECIFICATIONS Model MH5R Beam Lamp 5R Platinum lamp Voltage 230v 50Hz Power consumption: 300W Size and Weight 44 ×41×54cm(L×W×H) 16kg www.destilan-deutschland.de...
