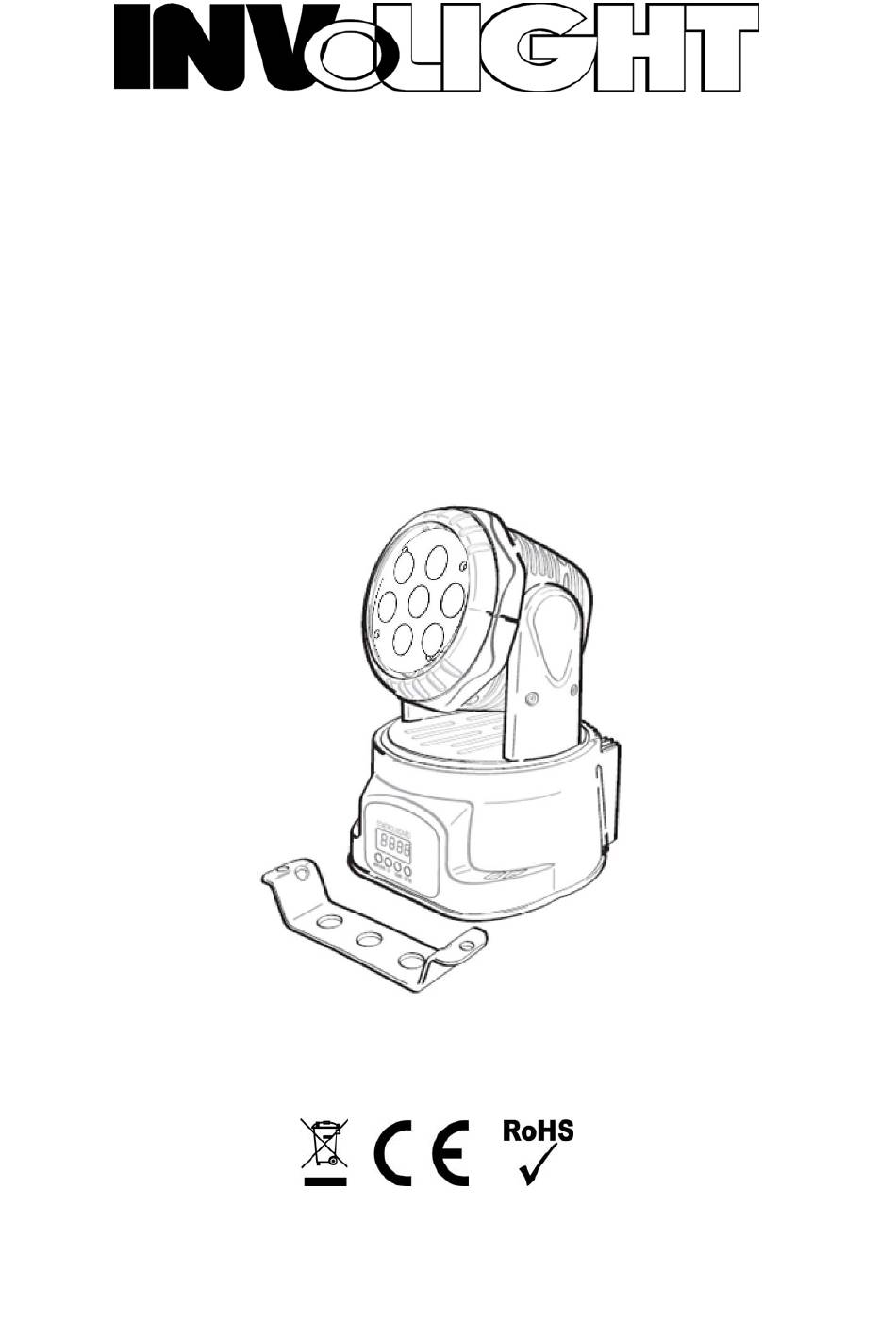

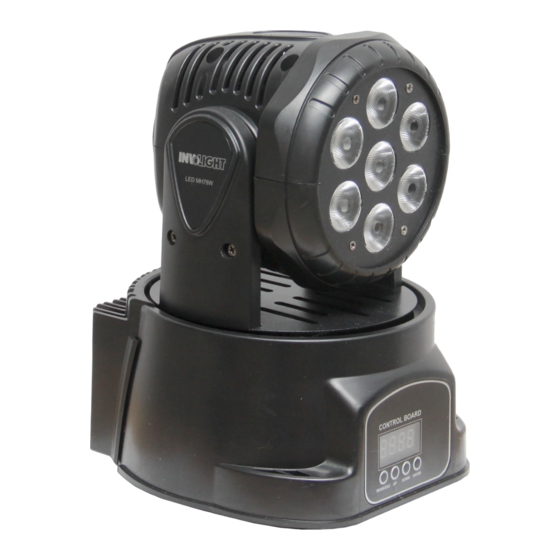

- Page 1 Bedienungsanleitung User manual LED MH78W www.destilan-deutschland.de...
-
Page 2: Table Of Contents
Table of contents INTRODUCTION ……………………………………………….…………………………..2 SAFETY INSTRUCTIONS…………………………………………………………………2 OPERATING DETERMINATIONS…………………………………………….…………..3 DESCRIPTION OF THE DEVICE…………………………………………………………4 INSTALLATION………………………………………………………………….…………..5 OPERATION……………………………………………………………………….………...6 Stand alone operation…………………………………………………………….…………6 Master slave operation…………………………………………………………….……..…6 DMX controlled operation………………………………………………………….…….…6 Addressing…………………………………………………………………………….…..…6 Control board………………………………………………………………………….…..…6 DMX protocol………………………………………………………………………….…..…7 TECHNICAL SPECIFICATIONS…………………………………………………….……7... -
Page 3: Introduction
CAUTION ! Keep this device away from rain and moisture Unplug mains lead before opening the housing For your own safety, please read this user manual carefully before you initially start-up Every person involved with installation. operation and maintenance of this fixture has to - be qualified - follow the instruction of this manual - consider this manual to be part of the total product... -
Page 4: Description Of The Device
to mortal electrical shock. Never modify, bend, strain mechanically, put pressure on, pull or heat up the power cord. Never operate next to sources of heat or cold. Disregard can lead to power cord damages, fire or mortal electrical shock. The cable insert or the female part in the device must never be strained. There must always be sufficient cable to the device. -
Page 5: Operation
Connection with the mains. The earth has to be connected. The device must only be connected with an electric installation carried out in compliance with IEC standards. OPERATION After you connected the effect to the mains, The fixture starts running Stand Alone operation In the stand alone mode, the fixture can be use without controller Master/slave-operation... -
Page 6: Dmx Protocol
M EN U MAP The device has two operation modes, It can be operated in Stand Alone or in DMX controlled d001 001-512 DMX mode and set address MAFA FASt Master auto mode in fast MStS Master sound mode MStc Stand-alone mode SlAu Slave mode... - Page 7 Blue 0-255 0-100% Blue White 0-255 0-100% White Mix color No function 10-255 32 different color change Mix color speed 0-255 Mix color speed adjustment Auto program 0-255 Auto program 8 DMX channel mode Channel Value Function 0-255 Pan movement 0~630 Tilt 0-255 Tilt movement 0~180...
-
Page 8: Technical Specifications
TECHNICIAL SPECIFICATIONS Model LED MH78W Voltage 110V- 250V / 50-60Hz Power consumption: 7pcs 8w RGBW Quad LEDs Gross Weight 3.5Kgs Dimensions 28(H) x 22(W) x 27(L) mm www.destilan-deutschland.de http://acctech.ru/cat/vrashhayushhiesy_golovy/...
