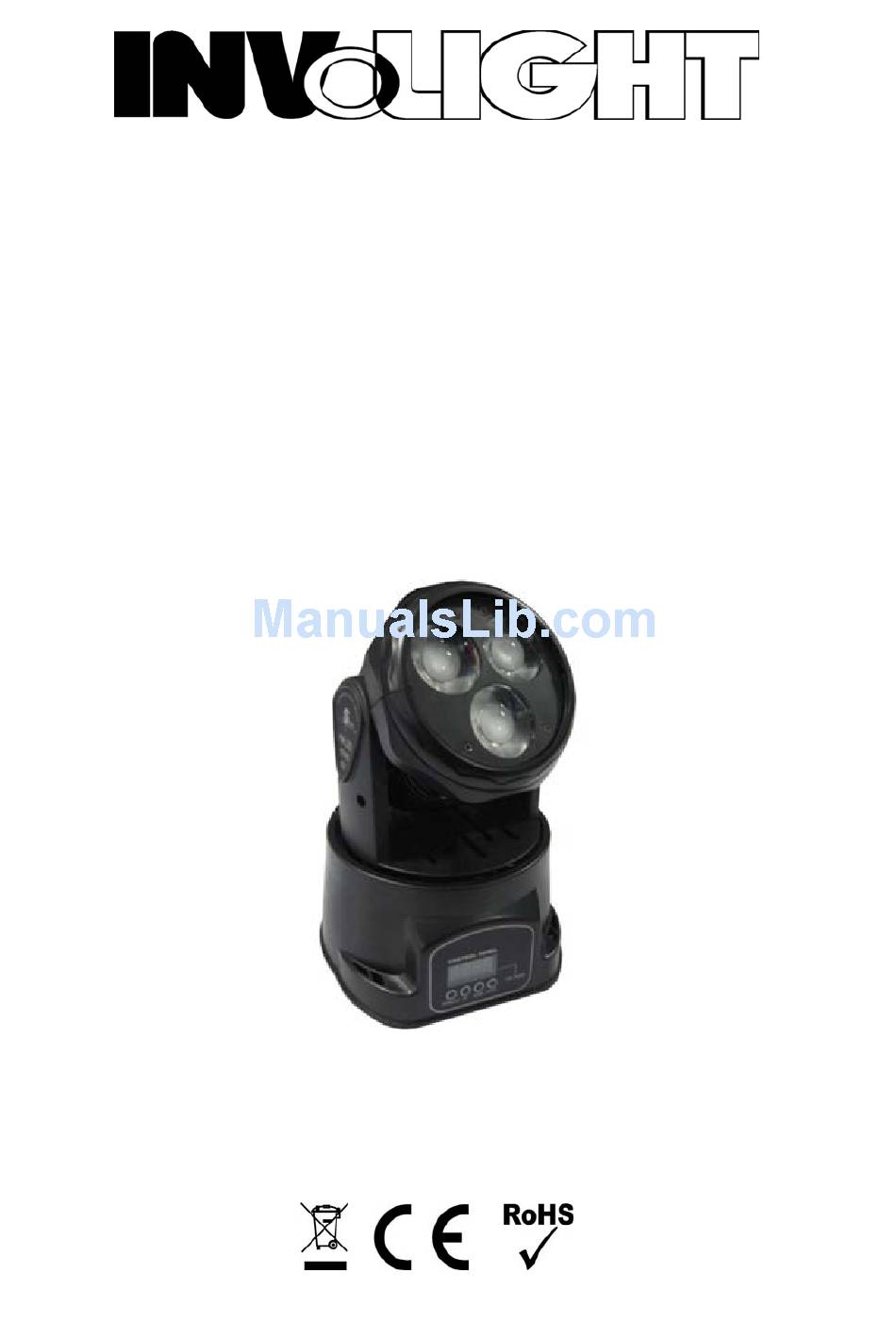

- Page 1 Bedienungsanleitung User manual LED MH315T COB www.destilan-deutschland.de...
-
Page 2: Table Of Contents
Table of contents INTRODUCTION ……………………………………………….…………………………..2 SAFETY INSTRUCTIONS…………………………………………………………………2 OPERATING DETERMINATIONS…………………………………………….…………..3 DESCRIPTION OF THE DEVICE…………………………………………………………4 INSTALLATION………………………………………………………………….…………..5 OPERATION……………………………………………………………………….………...6 Stand alone operation…………………………………………………………….…………6 Master slave operation…………………………………………………………….……..…6 DMX controlled operation………………………………………………………….…….…6 Addressing…………………………………………………………………………….…..…6 Control board………………………………………………………………………….…..…6 DMX protocol………………………………………………………………………….…..…7 TECHNICAL SPECIFICATIONS…………………………………………………….……7... -
Page 3: Safety Instruction
CAUTION ! Keep this device away from rain and moisture Unplug mains lead before opening the housing For your own safety, please read this user manual carefully before you initially start-up Every person involved with installation. operation and maintenance of this fixture has to - be qualified - follow the instruction of this manual - consider this manual to be part of the total product... -
Page 4: Description Of The Device
connections with the mains with particular caution! Never touch them with wet hands .as this could lead to mortal electrical shock. Never modify, bend, strain mechanically, put pressure on, pull or heat up the power cord. Never operate next to sources of heat or cold. Disregard can lead to power cord damages, fire or mortal electrical shock. -
Page 5: Installation
Connection with the mains. The earth has to be connected. The device must only be connected with an electric installation carried out in compliance with IEC standards. OPERATION After you connected the effect to the mains, The fixture starts running Stand Alone operation In the stand alone mode, the fixture can be use without controller Master/slave-operation... -
Page 6: Operation
M EN U MAP The device has two operation modes, It can be operated in Stand Alone or in DMX controlled A001 (address code setting from A001-------A512) AU01(auto-moving speediness) AU02(slow speed auto-moving) SN01(Sound control for color changing) SN02( Sound control for strobe) RPOF(Set pan to forward-rotating) RPON(Set pan circumrotate reverse) RTOF(Set tilt to forward-rotating) -
Page 7: Dmx Protocol
Resume reverse Windows default .Press the MENU until it shows DFON. .press ENTER to confirm。 D MX-p rot oc o l 11 DMX channel mode Channel Value Function 0-255 Pan movement 0~630 Tilt 0-255 Tilt movement 0~180 Pan Tilt speed 0-255 Pan &... - Page 8 TECHNICIAL SPECIFICATIONS Model LED MH315TCOB Voltage 110V- 250V / 50-60Hz Power consumption: 3pcsX15w RGB 3 in 1 COB LEDs Gross Weight 3.5Kgs Dimensions 28(H) x 22(W) x 27(L) mm www.destilan-deutschland.de...
