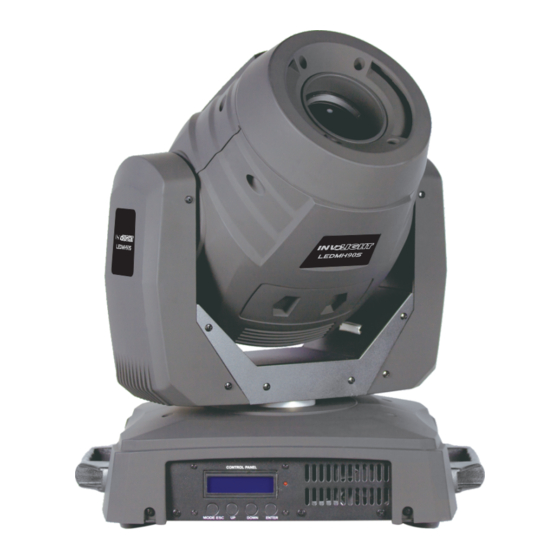

involight LEDMH90S User Manual
  1. Manuals
  2. Brands
  3. involight Manuals
  4. Lighting Equipment
  5. LEDMH90S
  6. User manual

involight LEDMH90S User Manual

Hide thumbs

Advertisement

Quick Links

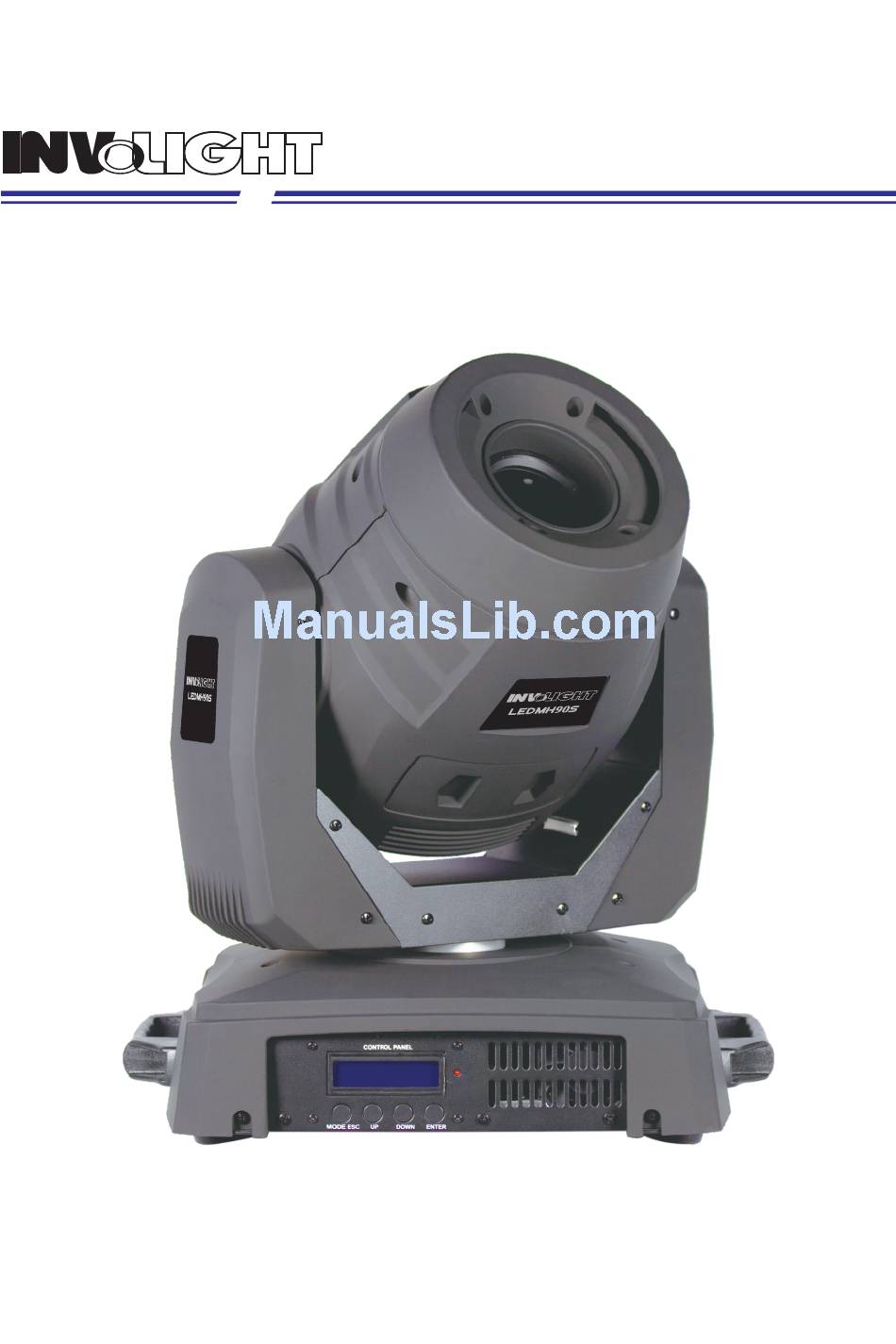

90
LEDMH
S
USER MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the LEDMH90S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for involight LEDMH90S

Summary of Contents for involight LEDMH90S

  • Page 1 LEDMH USER MANUAL...

  • Page 2: Table Of Contents

    . 1 . TABLE OF CONTENTS Maintenance---------------------------------------------------- 1 Statement------------------------------------------------------- 1 Attention Item ------------------------------------------------- 2 Product introduction ------------------------------------------ 2 15 Control Channel ------------------------------------------- 3 10 Control Channel ------------------------------------------- 7 That Control Display ------------------------------------------10 Fault conditions ------------------------------------------------14 Maintenance 1. Please keep the light in dryness and avoiding use in wet place. 2.

  • Page 3: Attention Item

    . 2 . Attention Item 1. For guarantee the life of product, please don't put it on the wet place and also not use it in the place over 40 degree. 2. Please don't lay the product on the unfixable or shakable place. 3.

  • Page 4: Control Channel

    . 3 . 15 Control Channel Accept DMX512 control channel, detail as follow: Channel Feature DMX-value 1 PAN 0~255 540° 2 TILT 0~255 270° PAN spinner 3 PAN 16bit 0~255 TILT spinner 0~255 4 TILT 16bit 5 X/Y Speed PAN / TILT controllable speed with decreasing 0~255 White Blue...
  • Page 5 . 4 . Channel Feature DMX-value Gobo 1 Shake with increasing speed 80~99 Gobo 2 Shake with increasing speed 100~119 Gobo 3 Shake with increasing speed 120~139 Gobo 4 Shake with increasing speed 140~159 GOBO Gobo 5 Shake with increasing speed Wheel 160~179 Gobo 6 Shake with increasing speed...
  • Page 6 . 5 . Channel Feature DMX-value Close Open 8~22 Strobe effect with increasing speed 23~85 Open 86~100 Shutter Pulse strobe 101~165 Open 166~180 Random Shutter 181~245 Open 246~255 0~255 Dimmer 0~100% mechanic dimmer 12 Focus 0~255 Motorized focus, zoom out to zoom in White Stop, static prism effect 8~15...
  • Page 7 . 6 . Feature Channel DMX-value 90~99 All channel reset 100~12 9 Reserved Channel function 130~19 2 Run random pnogramme 193~25 5 Sound control Reserved Effect 1 10~19 Effect 2 20~29 Effect 3 30~39 Effect 4 40~49 Effect 5 50~59 Effect 6 60~69 Effect 7...

  • Page 8: Control Channel

    . 7 . 10 Control Channel Accept DMX512 control channel, detail as follow: Channel Feature DMX-value 1 PAN 0~255 540° 2 TILT 0~255 270° White Blue 8~15 Yellow 16~23 Pink 24~31 Green 32~39 40~47 Light Blue 48~55 orange red 56~63 64~66 White 3 Color...
  • Page 9 . 8 . Feature Channel DMX-value Gobo 4 Shake with increasing speed 140~159 Gobo 5 Shake with increasing speed 160~179 GOBO Gobo 6 Shake with increasing speed 180~199 Wheel Gobo 7 Shake with increasing speed 200~219 Positive rainbow effect with increasing speed 220~237 Negative rainbow effect with increasing speed 238~255...
  • Page 10 . 9 . Feature Channel DMX-value Random Shutter 181~245 Shutter Open 246~255 0~255 Dimmer 0~100% mechanic dimmer 9 Focus 0~255 Motorized focus, zoom out to zoom in White Stop, static prism effect 8~15 Rotation prism effect Positive rainbow 10 Prism 16~127 Rotation prism effect Negative rainbow...

  • Page 11: That Control Display

    . 10 . That Control Display 1、Top menu, present the current operation: DMX Signal DMX mode: select channel 1 - channel 512 DMX Address: 001 2. Press the <MODE/ESC> button repeatedly until you reach the desired menu function.Press the <ENTER> button to select the menu function currently displayed, or to enable menu option.
  • Page 12 . 11 . 3-Pan < 3-Pan Pan mode Positive 4-Tilt Select: Normal 3-Pan Pan mode Negative Select: Reverse 4-Tilt < 4-Tilt Tilt mode Positive 5-Display Select: Normal 4-Tilt Tilt mode Negative Select: Reverse 5-Display < 5-Display The Background lighting long-light 6-Pan Angle Select: Bright The Background lighting will turn...
  • Page 13 . 12 . 8-Channel < 8-Channel Basic / Advanced mode Advance mode 9-Temp. Disp Select: Advance 8-Channel Basic / Advanced mode Basic mode Select: Basic 9-Temp. Disp < independent temperature of each LED temperature 10-Reset System 10-Reset System < 10-Reset System whole machine reset seletion no reset 11-Load set...
  • Page 14 . 13 . 3-Color Init < 3-Color Init <ENTER> Motor start bit adjustment for Color wheel 4-Gobo 1 Init Set: 128 4-Gobo 1 Init < 4-Gobo 1 Init <ENTER> Motor start bit adjustment for Gobo wheel 1 5-Grota Init Set: 128 5-Grota Init <...

  • Page 15: Fault Conditions

    . 14 . Fault conditions Lamp Hot：When the LED reach 90℃, it is protected by the system and turn off automatically, and display will show "Lamp Hot". Open：Under the condition that the temperature resistance of the LED is not connected or already damaged, the display will be "open". Short：Under the condition that the temperature resistance of the LED is short circuited, the display will be "Short".
  • Page 16 LEDMH...
