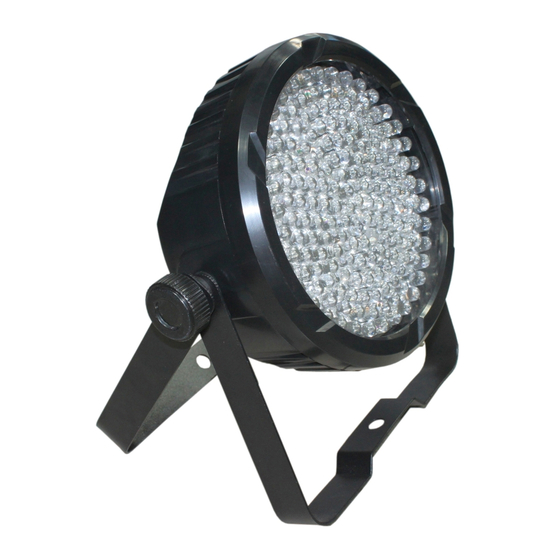

- Page 2 DMX LED Par64,177*10 RGB This series of products have rich effect program, and shows simplicity in operation. There are 5 working modes. Size:29*29.5*10cm Weight:1.6kgs Wattage: 30W Power input: AC 120V/240V, 60Hz/50Hz Power in and power out optional ...
- Page 3 DMX Mode1：1-ch FUNCTIO value No use 1-22 23-45 Green 46-68 Blue 69-91 Cyan 92-114 Yellow 115-137 Orange 138-160 Pink 161-183 Purple 184-206 Dark Blue Light 207-229 Green 230-252 White Warm 253-255 White DMX Mode2：3-ch CHANNEL VALUE FUNCTION 0-255 0-255 GREEN BLUE 0-255 DMX Mode3：4-ch...
- Page 4 0-255 Mster Dimming Red Dimming 0-255 Red Dimming 55 R(255) 9-17 R(255) G(50) 18-26 R(255) G(150) 27-35 R(255) G(255) 36-44 R(200) G(255) 45-53 R(100) G(255) 54-62 R(40) G(255) 63-71 G(255) 72-80 G(255) B(50) 81-89 G(255) B(150) 90-98 G(255) B(255) 99-107 G(150) B(255) 108-116 G(50) B(255)
- Page 5 sensitivity could be changed 0-255 Green Dimming0-255 0-255 Blue Dimming0-255 NO FUNCTION 10-255 STROBE （Slow—Fast） 0-24 To choose 29 static colors through CH2 25-49 Pr02（seven colors gradual change） 50-74 Pr03（three colors gradual change） 75-99 Pr04（seven colors step change） 100-124 Pr05（three colors step change） 125-149 Pr06（illusion1）...
- Page 6 seconds, it will run the mode that is set by user.
