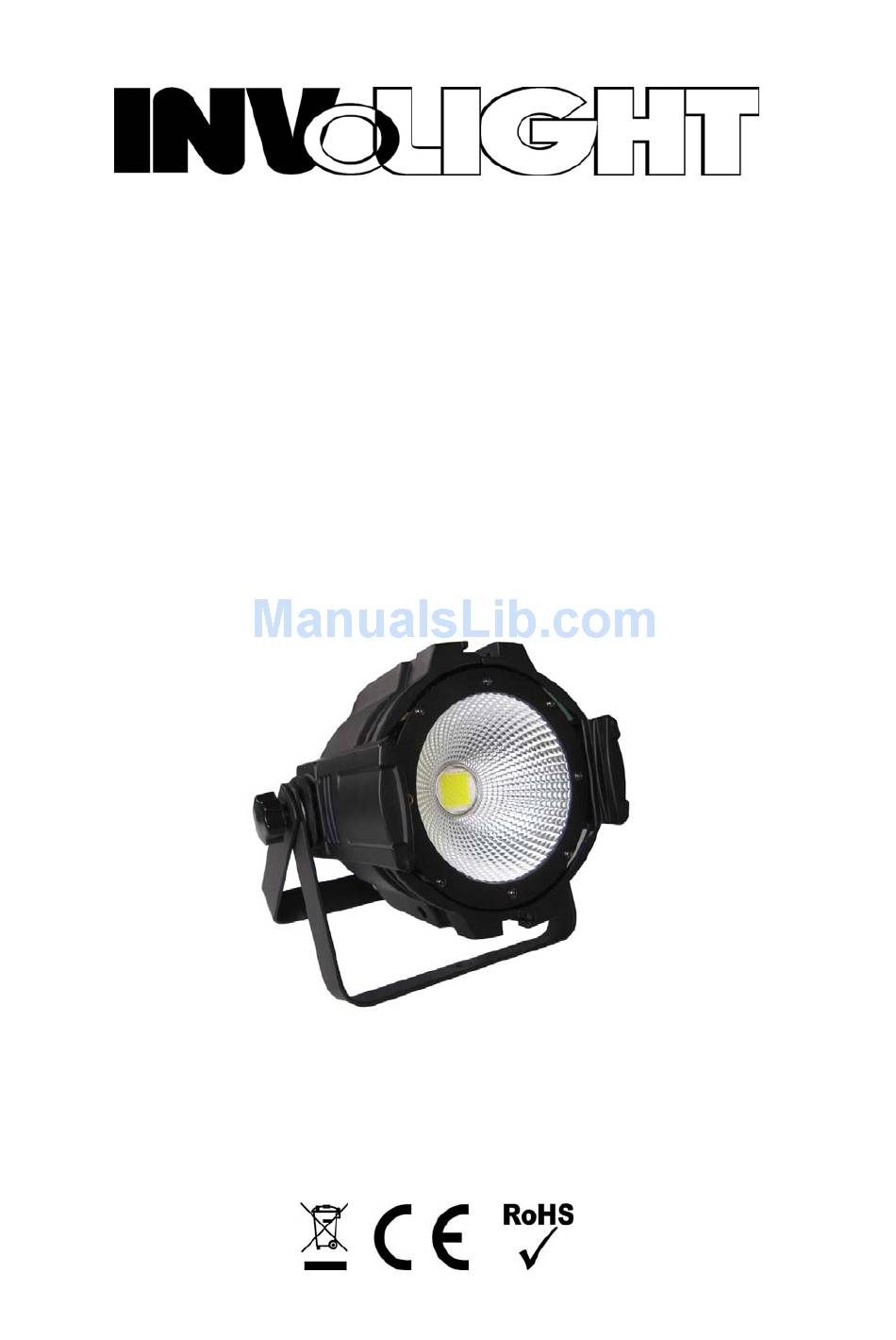

Page 1: User Manual
Bedienungsanleitung User manual COBPAR100T www.destilan-deutschland.de... - Page 2 Table of contents INTRODUCTION ……………………………………………….…………………………..2 SAFETY INSTRUCTIONS…………………………………………………………………2 OPERATING DETERMINATIONS…………………………………………….…………..3 DESCRIPTION OF THE DEVICE…………………………………………………………4 INSTALLATION………………………………………………………………….…………..5 OPERATION……………………………………………………………………….………...6 Stand alone operation…………………………………………………………….…………6 Master slave operation…………………………………………………………….……..…6 DMX controlled operation………………………………………………………….…….…6 Addressing…………………………………………………………………………….…..…6 Control board………………………………………………………………………….…..…6 DMX protocol………………………………………………………………………….…..…7 TECHNICAL SPECIFICATIONS…………………………………………………….……7...
-
Page 3: Safety Instruction
CAUTION ! Keep this device away from rain and moisture Unplug mains lead before opening the housing For your own safety, please read this user manual carefully before you initially start-up Every person involved with installation. operation and maintenance of this fixture has to - be qualified - follow the instruction of this manual - consider this manual to be part of the total product... - Page 4 immediately. Malfunction or short-circuits caused by metal parts my cause mortal injuries. Never look directly into the light source, as sensitive persons may suffer an epileptic shock (especially meant for epileptics)Keep away children and amateurs. Never leave this device running unattended. OPERATING DETERMINATIONS This device is designed for permanent operation.
- Page 5 DANGER OF FIRE! When installing the device, make sure there is no highly-inflammable material(decoration articles, etc.)within a distance of min.0.5m. DMX 512 connection/ connection between fixture The wires must not come into contact with each other, otherwise the fixture will not work at all or properly.
- Page 6 he main menu is accessed by pressing the Mode/Esc-button, Browse through the submenu by pressing Up or Down .Press the Enter-button in order to select the desired menu. You can change the selection by pressing Up or Down, Confirm every selection by pressing the Enter-button. You can leave every mode by pressing the Mode/Esc-button .The functions provided are described in the following setting.
- Page 7 White balance adjustment CAL 1 WT01 to WT.11 to adjust R/G/B/W from 0~255 Ps:when run stat dmx mode, channel 6 can show 11 different white color RGB adjust correct color for RGB CAL 2 RGB adjust from 25~255 Note：output default setting address code is A001, pan is positive circumrotate、tilt is positive circumrotate、LED positively reveal.
- Page 8 No function 10-211 Each 10 value with a ID from ID1 until ID19 211-222 Each value with a ID from ID20 until ID66 TECHNICIAL SPECIFICATIONS Model COBPAR100T Voltage 110V- 250V / 50-60Hz Power consumption: 120w 100W RGB COB leds Gross Weight 2.9Kgs...
