PIPETBOY acu 2 Operating instructions

466079_V17

Table of Contents

Need help?

Do you have a question about the PIPETBOY acu 2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Integra PIPETBOY acu 2

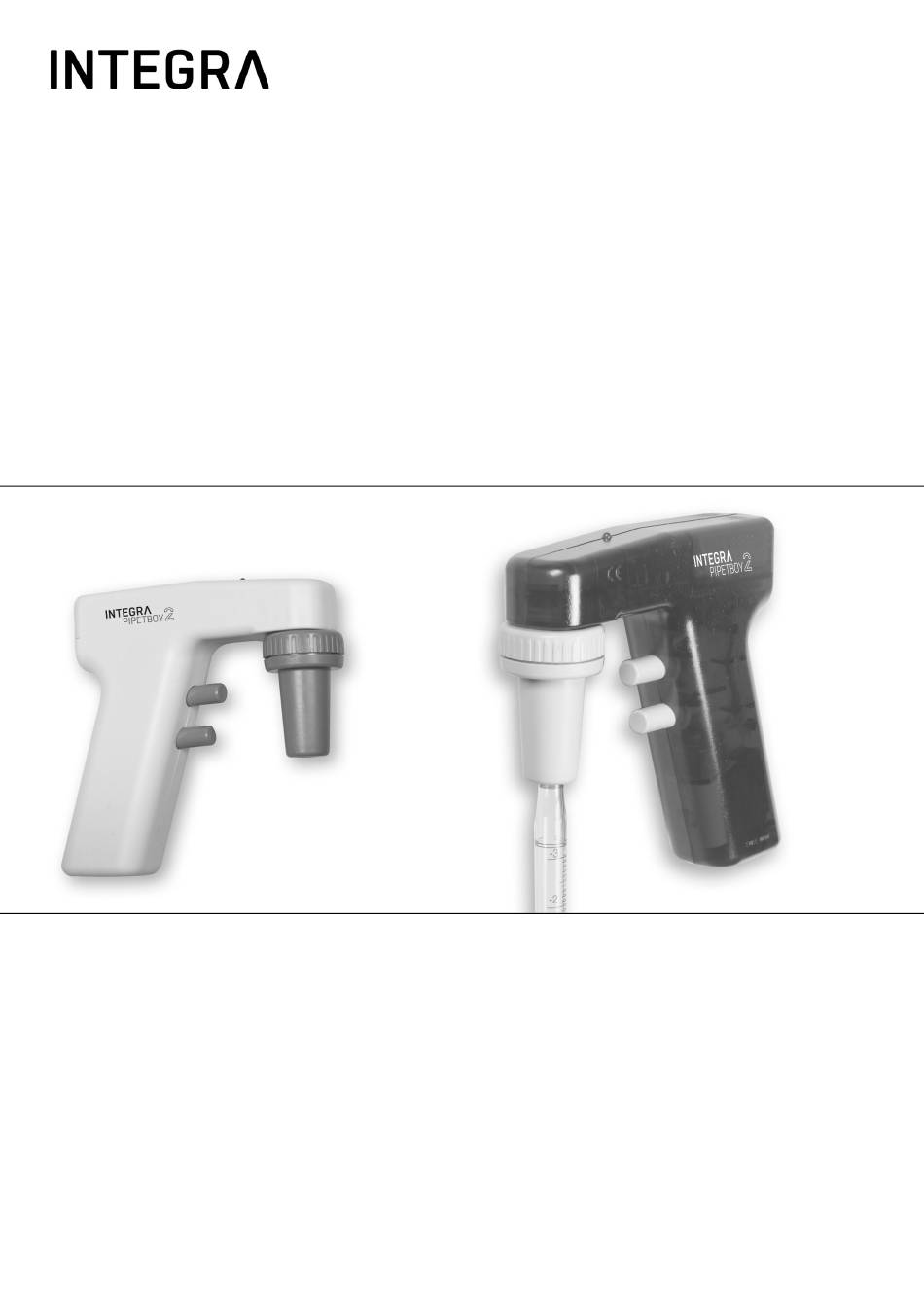

Page 1 PIPETBOY acu 2 Operating instructions 466079_V17...
Page 2 Declaration of conformity INTEGRA Biosciences AG – 7205 Zizers, Switzerland declares on its own responsibility that the devices Description Models PIPETBOY acu 2 155000, 155015, 155016, 155017, 155018, 155019, 155022, 155023, 155024 Accessories 153210, 153211, 153214, 153216, 155066 comply with:...
Page 3 PIPETBOY acu 2 – Declaration of conformity GBR Regulations Scope Date effective S.I. 2016/1101 Electrical equipment safety 08.12.2016 S.I. 2016/1091 Electromagnetic compatibility (EMC) 08.12.2016 S.I: 2008/2164 Batteries and accumulators regulations 26.09.2008 S.I. 2013/3113 Waste electrical and electronic equipment (WEEE) 01.01.2019 S.I.
Page 4 PIPETBOY acu 2 – Declaration of conformity CHN Regulations Scope Date effective AQSIQ Order 5 /2001 (CCC) safety and EMC requirements for 01.08.2003 electrical equipment Order 32/2016 Restriction of hazardous substances (RoHS) 01.07.2016 CHN Standards Scope GB4943.1-2011 Information technology equipment safety...
Page 5: Table Of Contents
This operating instruction manual applies to serial number 1350 000 or higher of PIPETBOY acu 2 / PIPETGIRL. Manufacturer and customer service Your local INTEGRA Biosciences representative, further information, and operating instructions in other languages can be found at www.integra-biosciences.com or are available on request info@integra-biosciences.com. INTEGRA Biosciences AG INTEGRA Biosciences Corp.
Page 6: Introduction
PIPETBOY acu 2. Safety notes 1) Do not use or charge PIPETBOY acu 2 in an atmosphere with danger of explosion. Also, do not pipette highly flammable liquids such as acetone or ether. 2) When handling dangerous substances, comply with the material safety data sheet (MSDS) and with all safety guidelines such as the use of protective clothing and safety goggles.
Page 7 Regardless of the listed safety notes, additionally applicable regulations and guidelines of trade associations, health authorities, trade supervisory offices, etc. must be observed. Please visit our website www.integra-biosciences.com on a regular basis for up to date information regarding REACH classified chemicals contained in our products.
Page 8: Description Of The Device
PIPETBOY acu 2 - Operating instructions V17 Description of the device Description of the device Scope of delivery • PIPETBOY acu 2 device • 1 rechargeable Li-ion battery • Mains adapter • Wall mount • Hydrophobic sterile filter 0.45 µm (spare) •...
Page 9: Installation
Installation Charging the battery A full charge takes 3.5 hours. Before the first use, PIPETBOY acu 2 should be charged until the battery charge indicator (4) turns green, showing that the battery is full. When the battery charge indicator (4) starts flashing red, PIPETBOY acu 2 can be used for around 100 pipetting cycles before shutting down.
Page 10: Operation
“to deliver” (TD) pipettes that are not of the “blow-out” type (blow-out pipettes have two thin rings or a frosted band around the neck). PIPETBOY acu 2 is featured with a “TURBO” mode. Plug the mains adapter cable into the pipette controller and turn the thumb wheel completely to the right for maximal speed.
Page 11 PIPETBOY acu 2 – Operating instructions V17 Operation www.integra-biosciences.com...
Page 12 PIPETBOY acu 2 – Operating instructions V17 Operation INTEGRA Biosciences AG...
Page 13: Maintenance
PIPETBOY acu 2: liquid should not leak out of a filled pipette before the dispensing button is pressed. Cleaning and servicing PIPETBOY acu 2 can be cleaned with a cloth moistened with soapy water or with a 70 % ethanol. Disassembly of the nose piece: Unscrew the nose piece (7) from the handle by turning it counter clockwise.
Page 14: Technical Data
PIPETBOY acu 2 device must not be disposed of with unsorted municipal waste. Do not dispose of the device in a fire. PIPETBOY acu 2 contains a Li-ion battery. Do not modify the battery in any way. Dispose of the PIPETBOY acu 2 device and the battery separately in accordance with the laws and regulations in your area governing disposal of devices containing Li-ion batteries.
Page 15 Technical Data Chemical compatibility The table below lists PIPETBOY acu 2 parts that come into contact with the aspirated liquid or its aerosols and vapors, and rates the compatibility of these parts to a few of the chemicals commonly used in laboratories. To determine the compatibility of a component to a chemical not listed in the table, please consult one of the several tables available on the internet.
Page 16: Accessories
PIPETBOY acu 2 - Operating instructions V17 Accessories Accessories Accessories Part No. Stand for for a well organized work area, to park PIPETBOY acu 2 with 155065 PIPETBOY inserted pipette Wall mount for holding PIPETBOY acu 2 on the wall...
Page 17 PIPETBOY acu 2 / PIPETGIRL 155066 (with serial number >=1350001) ARNING Only use the battery Li-ion for PIPETBOY acu 2 serial number (serial number >=1350001; LED is white when inactive, red or green when active)! The NiMH battery for PIPETBOY acu is not compatible!
