Rear Panel - Standard Horizon MATRIX Series Owner's Manual

Key
Press the
Press and hold the
again reverts to the previous selected working channel.
[ DISTRESS ] Key
Used to send a DSC Distress Call. To send the distress call refer to section
"9.3.1 Transmitting a DSC Distress Alert".
7.2

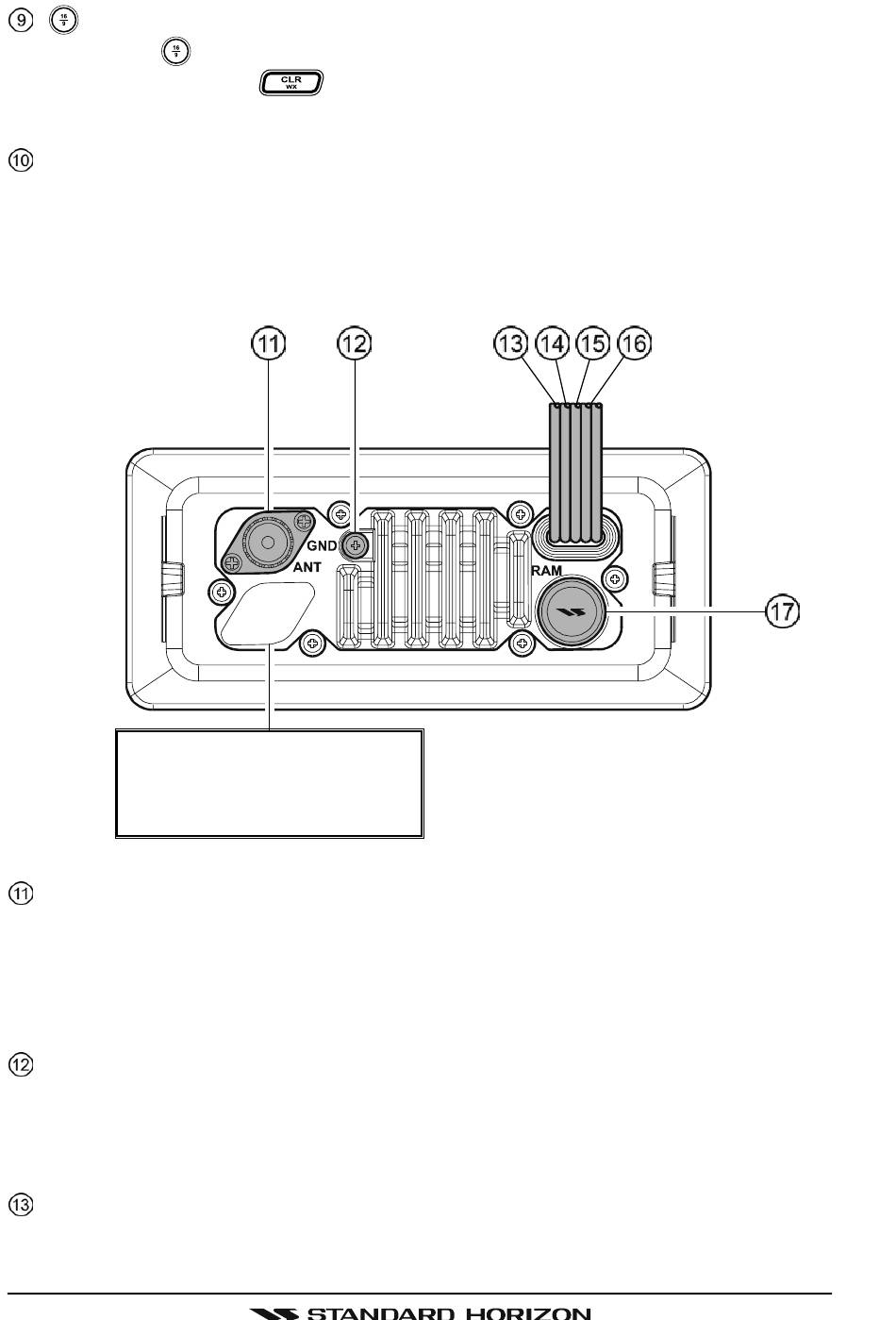

REAR PANEL

Never remove this rubber cap.
When this rubber cap is re-
moved, the water resistance
performance is lost.
ANT Jack ( Antenna Jack )
Connects an antenna to the transceiver. Use a marine VHF antenna with
an impedance of 50 ohms.
Note: On the GX2150 the antenna connection is used to receive marine
and AIS transmissions.
GND Terminal ( Ground Terminal )
Connects the GX2000/GX2150 to a good ground, for safe and optimum
performance.
Use the screw supplied with the GX2150 and GX2000 only.
Accessory Connection Cable ( Green, Blue, Gray, & Brown )
Connects the GX2000/GX2150 to a GPS receiver and AIS receiver
(GX2000). Refer to section "6.5 ACCESSORY CABLE".
Page 26
key briefly to recall channel 16 from any channel location.
key to recall channel 9. Pressing the [16/9] key
GX2000/GX2150
