2.5.
Connecting peripheral devices
It is possible to connect 2 after-market AV-sources, an after-market rear-view camera and an
after-market navigation to the video-interface.
Before final installation of the peripheral devices, we recommend a test-run to detect
incompatibility of vehicle and interface. Due to changes in the production of the vehicle
manufacturer is always the possibility of incompatibility.

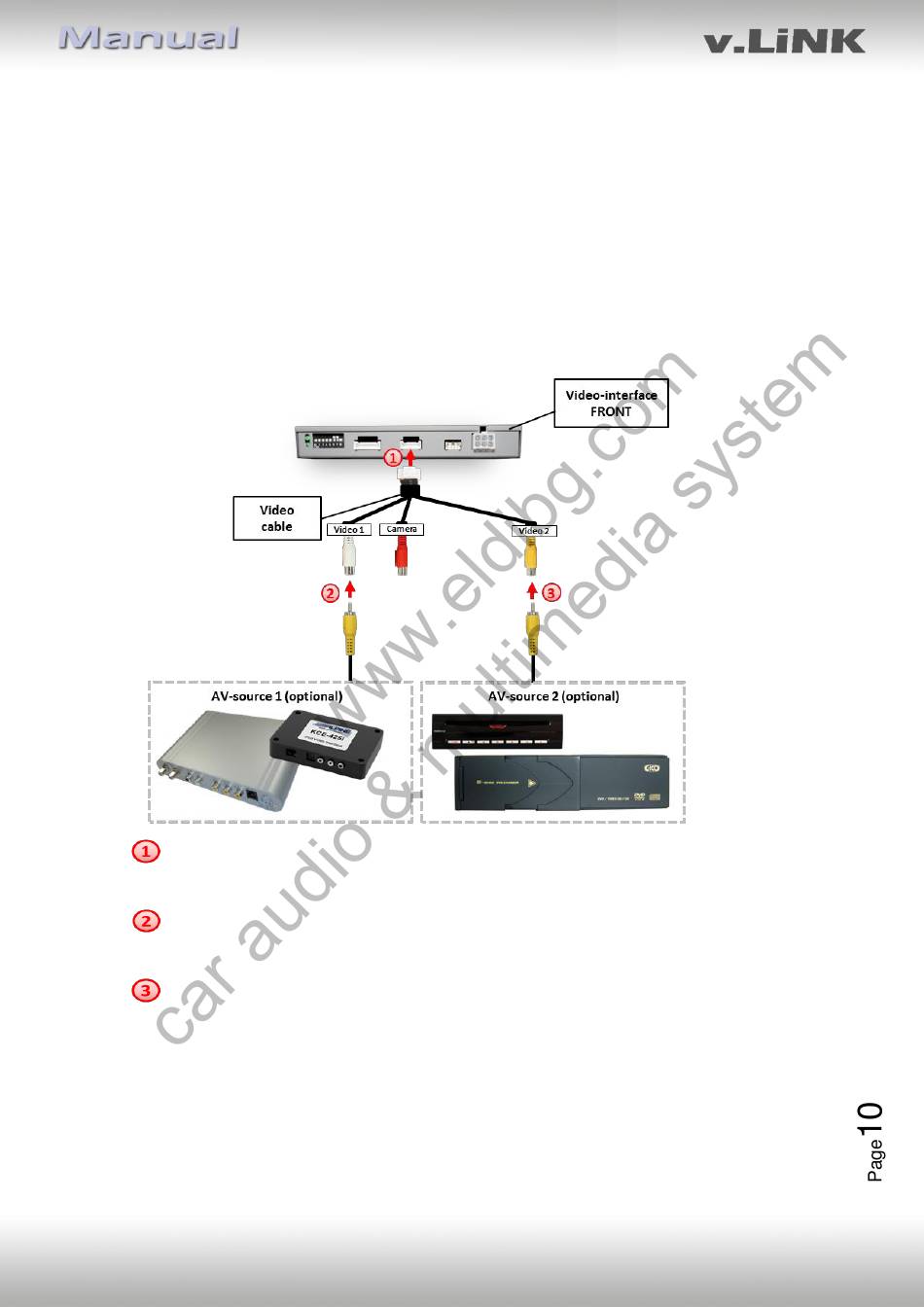

2.5.1. Video-sources to IN1 and IN2
Connect female 6pin connector of the audio cable to male 6pin connector of the
video-interface.
Connect video RCA of the AV-source 1 to the female RCA connector Video 1 of the
video cable.
Connect video RCA of the AV-source 2 to the female RCA connector Video 2 of the
video cable.
