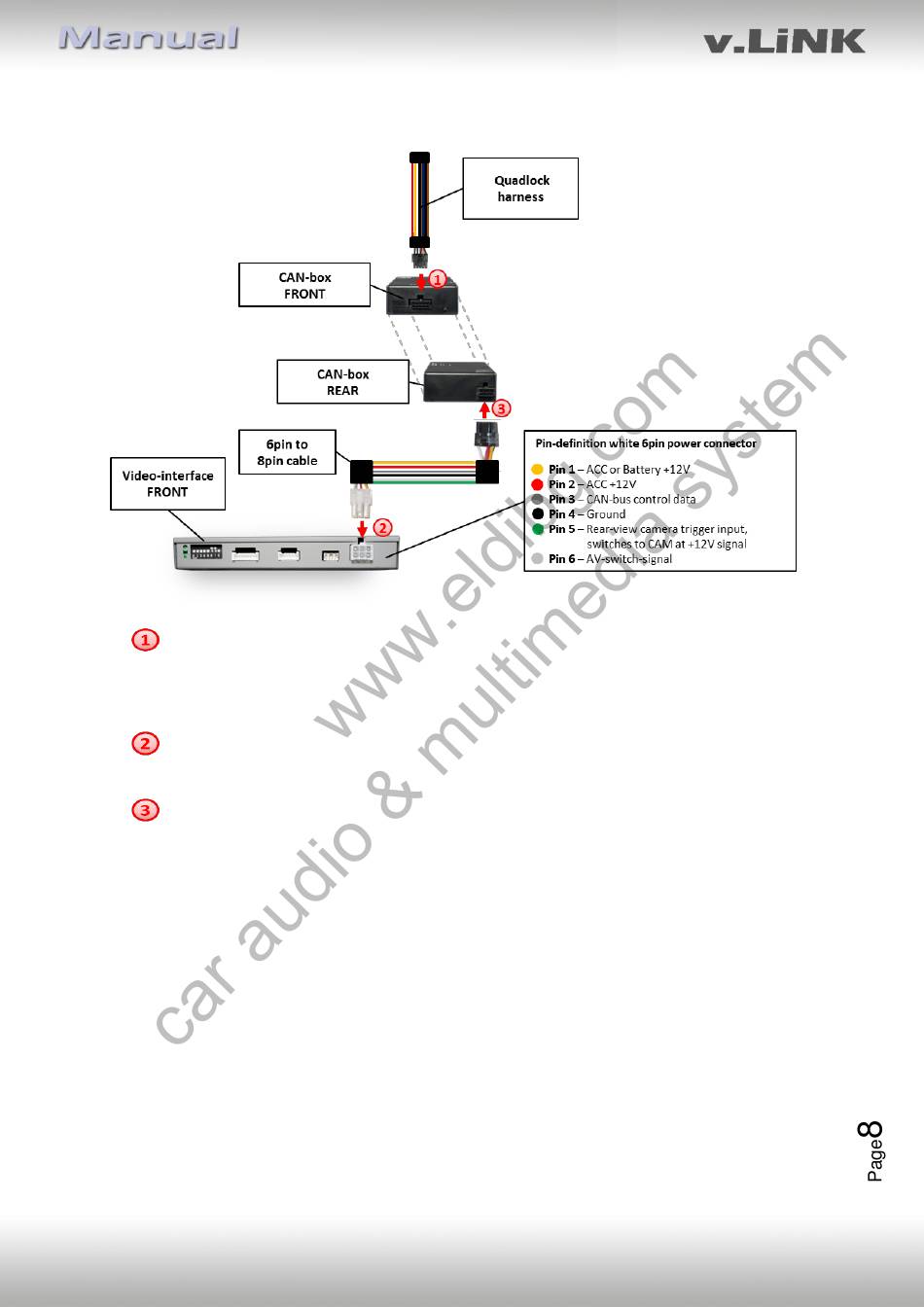

Connecting video-interface and CAN-box

Connect black female 6pin Micro-Fit connector of the VAG system-connector harness

to the male 6pin Micro-Fit connector of the CAN-box.

Note: Check LEDs on CAN-box after reconnecting the battery, two must be on.

Connect white female 6pin Molex connector of the 6pin to 8pin cable to the male

6pin Molex connector of the video-interface.

Connect black female 8pin Micro-Fit connector of the 6pin to 8pin cable to male 8pin

Micro-Fit connector of the CAN-box.

Note: Check LEDs on video-interface after reconnecting the battery, one must be on.

Note: No liability for vehicle wire colours and pin definition!

Possible changes by the vehicle manufacturer. The given information must be verified by

the installer.
