Hytronik HC419V User Manual

PRODUCT TYPE:
OPERATING VOLTAGE:
HF SYSTEM:
TRANSMISSION POWER:
RATED LOAD:
DETECTION ANGLE:
POWER CONSUMPTION:
DETECTION RANGE:
TIME SETTING:
LIGHT CONTROL:
STAND-BY PERIOD:
STAND-BY DIMMING LEVEL :
MOUNTING:
WORKING TEMPERATURE:
NOTE:the high-frequency output of this sensor is <0.2mW;approximately just 1‰ of the transmission power of a mobile telephone or
the output of a microwave oven.
1.0

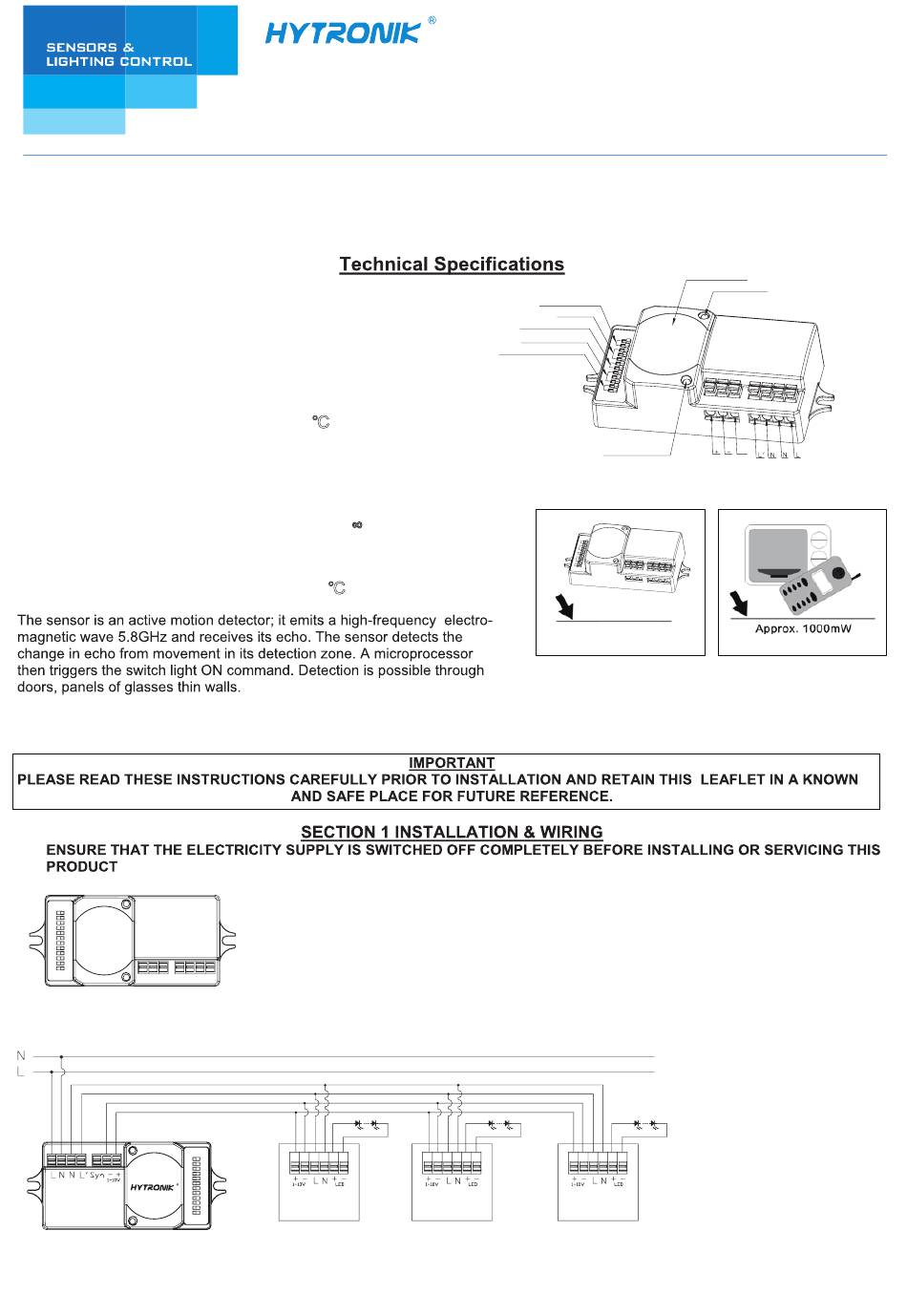

Wiring of 1 sensor controls a group of ballast /driver.
HC419V
HYTRONIK INDUSTRIAL LIMITED
Room D, 10/f, Tower A, Billion Center, 1 wang Kwong Road,
Kowloon Bay, Kowloon, Hongkong
T: 00852-35197525 F: 00852-30116936
E: info@hytronik.com

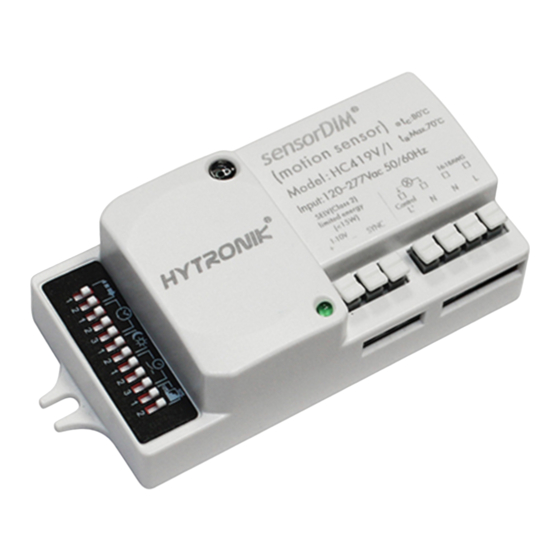

User Manual of Microwave Motion Sensor
New advanced version Model No.:HC419V
Microwave Motion Sensor
120-277VAC 50Hz/60Hz
5.8GHz CW radar
<0.2mW
277V ~ 1000W(capacitive load)
120V ~ 400W(capacitive load)
30~150℃
<1W
Max. 12 meters in diameter, adjustable
5s~30min.
2~50LUX,disable
0s, 10s-1h, +∞
10% ~ 50%
Indoors,ceiling & walling
-35 ~ +70℃
The sensor works with a main voltage of 120-277VAC 50/60 Hz.
The sensor has a 7-wire electrical interface:
Nx2 (neutral / 120-277VAC)
L (phase/120-277VAC)
L' (switched phase / output)
SYNC (synchronization interface)
+ (1-10V "+" interface)
- (1-10V "-" interface)
LED Driver
CHINA FACTORY
3rd Floor, block C, complex building, 155#, Bai'gang road south,
Bai'gang village, Xiao Jin Kou town, Huicheng district, Huizhou 516023
Tel:86-752-2772020
E: info@hytronik.com
Detection area
Hold-time
Daylight threshold
Stand-by period
Stand-by dimming level
LED Driver LED Driver
F:86-752-2777877
W:www.hytronik.com
Antenna module
Led indication
Daylight sensor
Sync
0-10V
output
<0.2mW
MAX.1000w
