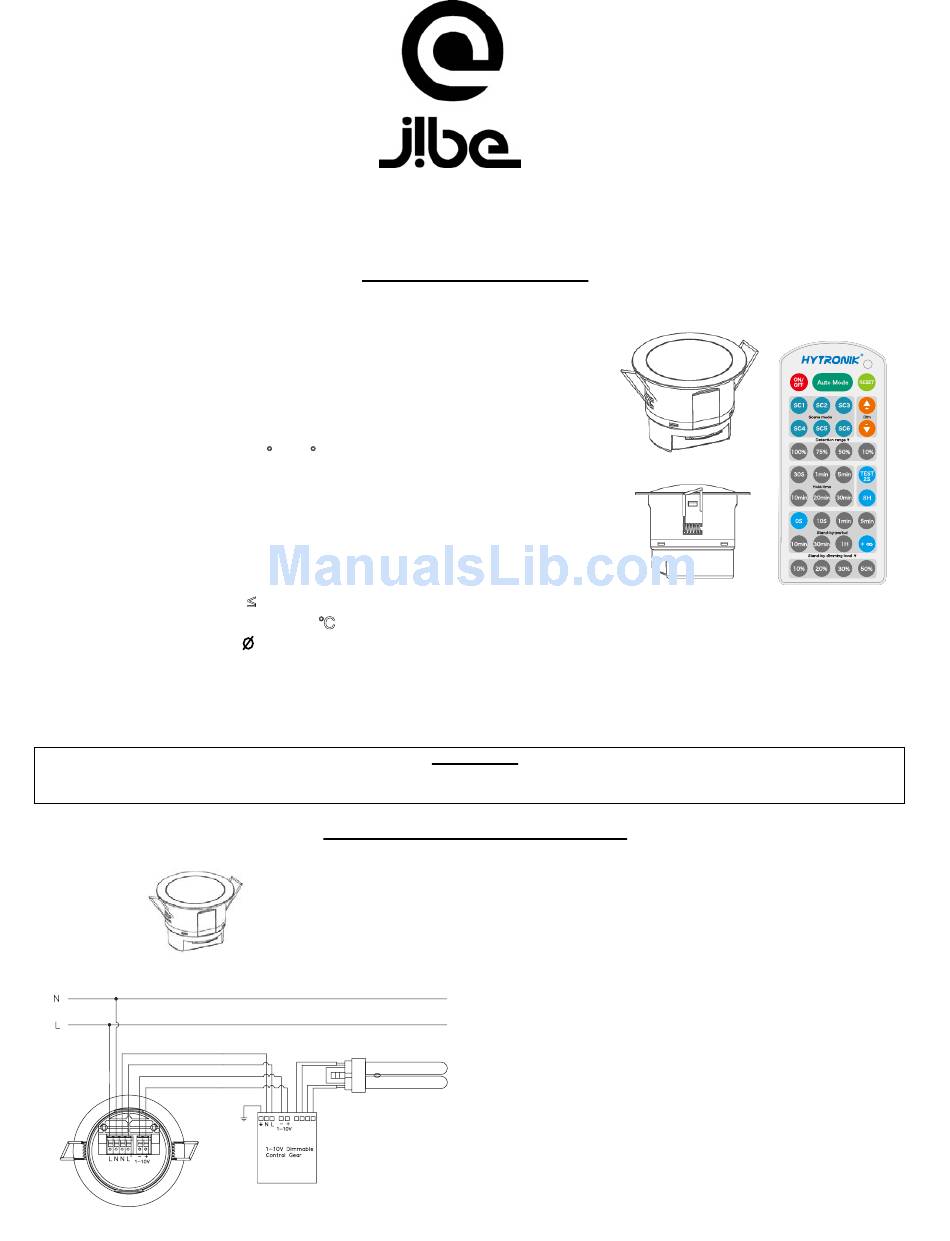

Hytronik HC407VDS Instruction Manual

Instruction Manual for Daylight Harvest Microwave Motion Sensor
Flush Mounting Installation Version, Model No.: HC407VDS
PRODUCT TYPE:
OPERATING VOLTAGE:
HF SYSTEM:
TRANSMISSION POWER: <0.2mW
RATED LOAD:
(capacitive load)
DETECTION ANGLE:
POWER CONSUMPTION: <1W
DETECTION RANGE:
TIME SETTING:
STAND-BY PERIOD:
STAND-BY LEVEL:
MOUNTING:
INSTALLATION HEIGHT:
WORKING TEMP.:
INSTALLATION HOLE:
The sensor is an active motion detector; it emits a high-frequency electro-magnetic wave 5.8GHz and receives its echo. The sensor detects the change
in echo from movement in its detection zone. A microprocessor then triggers the switch light ON command. Detection is possible through doors, panels
of glasses thin walls.
Note: the high-frequency output of this sensor is <0.2mW; approximately just 0.2‰ of the transmission power of a mobile telephone or the output of a
microwave oven.
PLEASE READ THESE INSTRUCTIONS CAREFULLY PRIOR TO INSTALLATION AND RETAIN THIS LEAFLET IN A KNOWN
1.1 ENSURE THAT THE ELECTRICITY SUPPLY IS SWITCHED OFF COMPLETELY BEFORE INSTALLING OR SERVICING THIS
PRODUCT

1.2 WIRING DIAGRAM

HC407VDS

Technical Specifications

Microwave Motion Sensor
120-277VAC 50Hz/60Hz
5.8GHz CW radar
120VAC@400W
230VAC@800W
277VAC@1000W
30 ~150 ° °
Max. 16 meters in diameter, adjustable
30s ~ 30 min.
0s, 10s ~ 1h, +∞ ∞
10% ~ 50%
Indoors, ceiling & walling mounted
≤
8M
-20 ~ +60℃
78mm
AND SAFE PLACE FOR FUTURE REFERENCE.
SECTION 1 INSTALLATION & WIRING
s
The sensor work with a main voltage of 220-240V/AC 50Hz. A 100-120V/AC version is available on request.
The sensor has a 6-wire electrical interface:
Nx2 (neutral / 120-277VAC)
L (phase / 120-277VAC)
L' (switched phase / output)
IMPORTANT
+ (1-10V "+" interface)
- (1-10V "-" interface)
HC407VDS HRC-01
