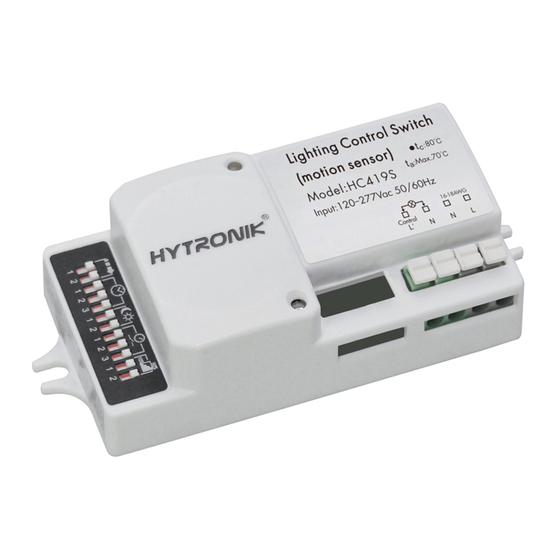

Hytronik HC419S Instruction Manual

PRODUCT TYPE:
OPERATING VOLTAGE:
HF SYSTEM:
TRANSMISSION POWER:
RATED LOAD:
DETECTION ANGLE:
POWER CONSUMPTION:
DETECTION RANGE:
TIME SETTING:
LIGHT CONTROL:
MOUNTING:
WORKING TEMP.:
The sensor is an active motion detector; it emits a high-frequency electro-magnetic wave at 5.8GHz and receives its echo. The
sensor detects the change in echo from movement in its detection zone. A microprocessor then trigers the switch light ON command.
Detection is possible throught doors, panes of glass and thin walls.
Note: the high-frequency output of this sensor is <0.2mW; approximately just 0.2‰ of the transmission power of a mobile telephone.
PLEASE READ THESE INSTRUCTIONS CAREFULLY PRIOR TO INSTALLATION AND RETAIN THIS LEAFLET IN A KNOWN
1.1 Ensure that the electricity supply is switched off completely before installing or servicing this product.

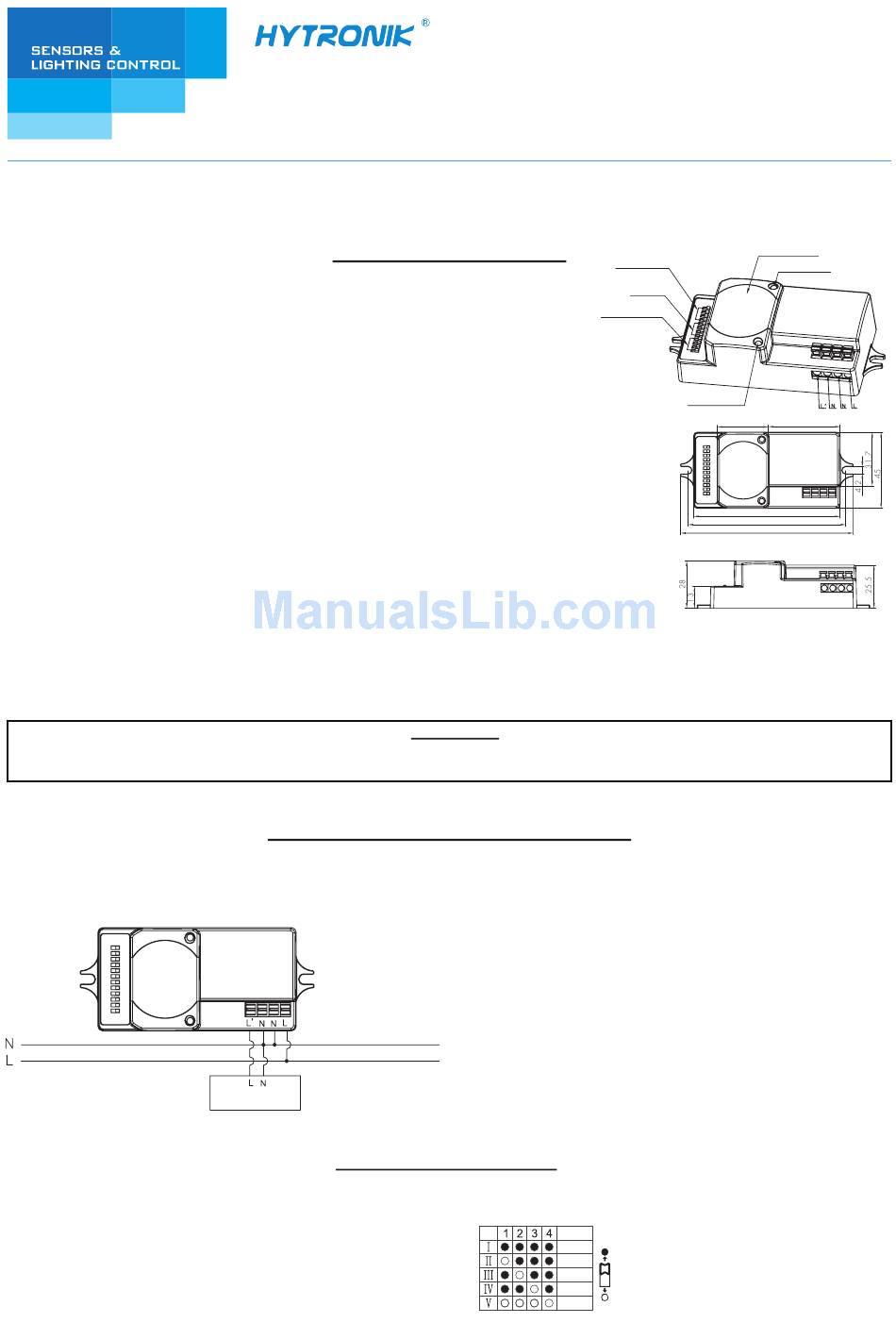

1.2 Wiring diagram:
Detection range:
Detection range can be tuned by selecting the combination on the DIP switches to fit precisely for each specific application.
I – 100%
II – 75%
III – 50%
IV – 30%
V – 10%
HYTRONIK INDUSTRIAL LIMITED
Room D, 10/f, Tower A, Billion Center, 1 wang Kwong Road,
Kowloon Bay, Kowloon, Hongkong
T: 00852-35197525 F: 00852-30116936
E: info@hytronik.com
Instruction Manual for Microwave Motion Sensor
On/off Version, Model No.:HC419S

Technical Specifications

Microwave Motion Sensor
120-277VAC 50Hz/60Hz
5.8GHz+/-75MHz
<0.2mW
120V~/3.4A/400W; 277V~/3.7A/1000W(capacitive load)
120V~/5.8A/700W; 277V~/5.8A/1600W(resistive load)
o o
30 ~ 150
< 1W
Max. 12 x 6m (DxH)
5s~30min.
2~50Lux; disable
Indoors, ceiling & wall mounted
o o
-35 C ~ +70 C
AND SAFE PLACE FOR FUTURE REFERENCE.
SECTION 1 INSTALLATION & WIRING
Control Gear
SECTION 2 SETTINGS
CHINA FACTORY
3rd Floor, block C, complex building, 155#, Bai'gang road south,
Bai'gang village, Xiao Jin Kou town, Huicheng district, Huizhou 516023
Tel:86-752-2772020
E: info@hytronik.com
IMPORTANT
100%
75%
50%
30%
10%
F:86-752-2777877
W:www.hytronik.com
Antenna module
Detection area
Hold-time
Daylight threshold
Daylight sensor
30.2
86.5
93.2
102
LED indication
42.3
