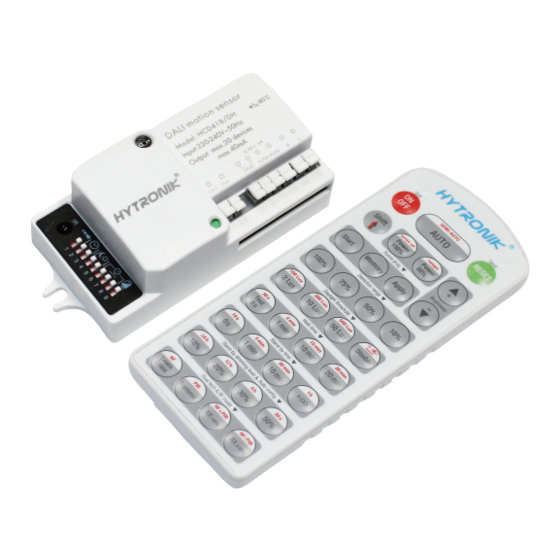

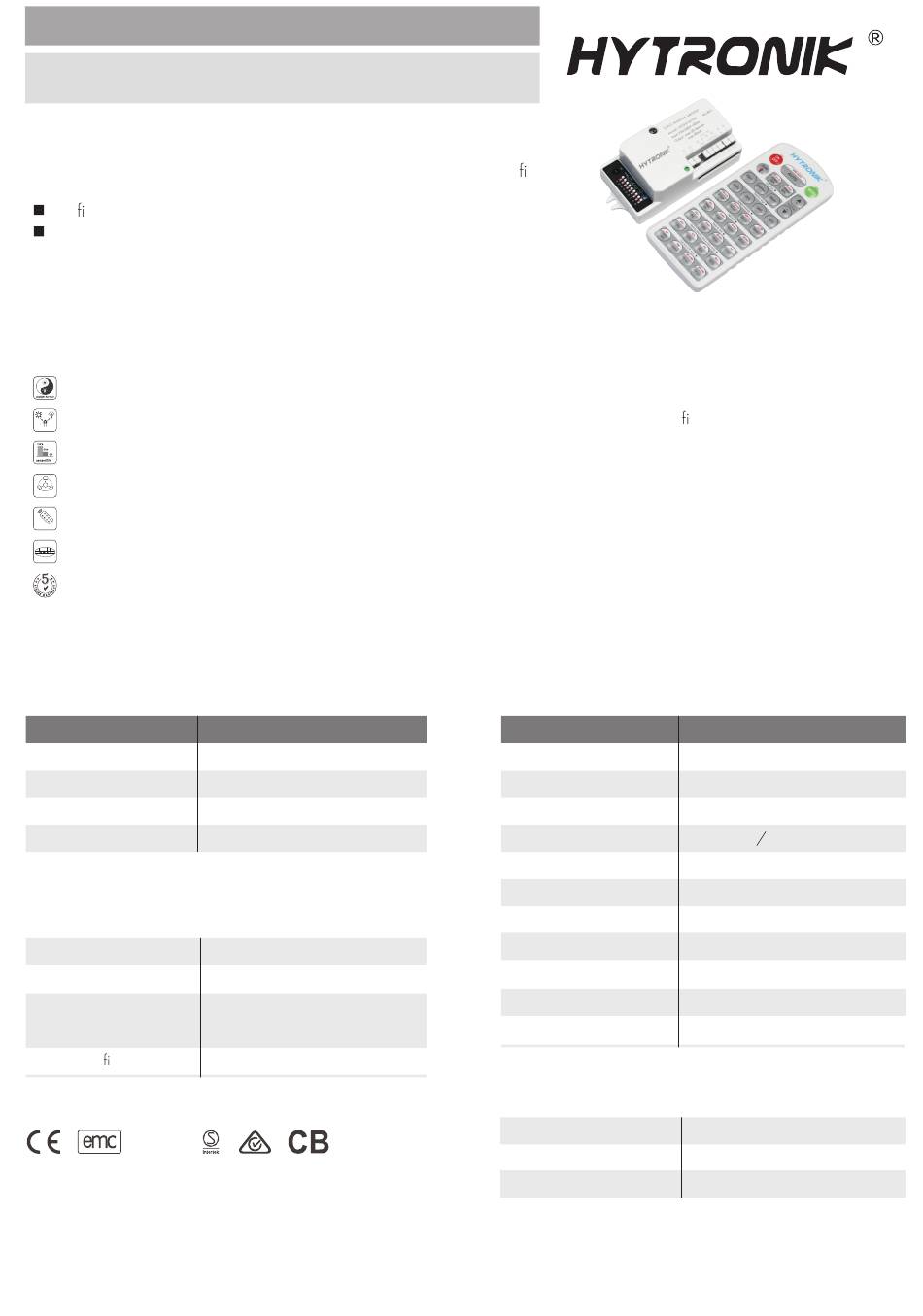

Daylight Harvest HF Sensor
HCD418/DH
Independent DALI sensor with Photocell Advance
Applications
Occupancy detector with daylight harvest suitable for building into the xture:
Of ce / Commercial Lighting
Classroom
Use for new luminaire designs and installations
Features
Daylight harvest function to regulate light output for maintaining required lux level
Special photocell to measure and differentiate natural light from LED light from behind the xture cover
Photocell Advance
Tri-level dimming control based upon occupancy (also known as corridor function)
TM
Synchronised dimming with multiple sensor circuits
TX
RX
Synchronisation
control
One-key commissioning via programmable remote control
One-Key
Commissioning
DALI dimming control method (DALI power supply circuit included)
5 Year, 50,000hr Warranty
Technical Data
Input Characteristics
Model No.
Mains voltage
Stand-by power
Switched power
Warming-up
Safety and EMC
EMC standard (EMC)
Safety standard (LVD)
Radio Equipment (RED)
Certi cation
RED
TM
HCD418/DH
120~277VAC 50/60Hz
<1W
Max. 20 devices, 40mA
20s
EN55015, EN61000
EN60669, AS/NZS60669
EN300440, EN301489,
EN62479
Semko, CB, CE , EMC, RED, RCM
IP20
Sensor Data
Model No.
Sensor principle
Operation frequency
Transmission power
Detection angle
Setting adjustments:
Sensitivity
Hold time
Stand-by period
Environment
Operation temperature
Case temperature (Max.)
IP rating
HCD418/DH
High Frequency (microwave)
5.8GHz +/- 75MHz
<0.2mW
Max. ( O x H) 12m x 6m
30
O
~ 150
O
50% / 100%
5s ~ 30min (selectable)
2 ~ 50 lux, disabled
0s ~ 1h, +∞ (selectable)
10% / 30%
Ta: -20
O
C ~ +60
O
C
Tc: +80
O
C
IP20
