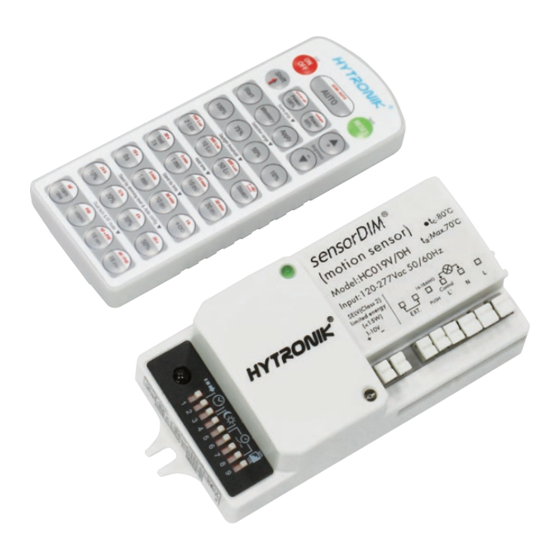

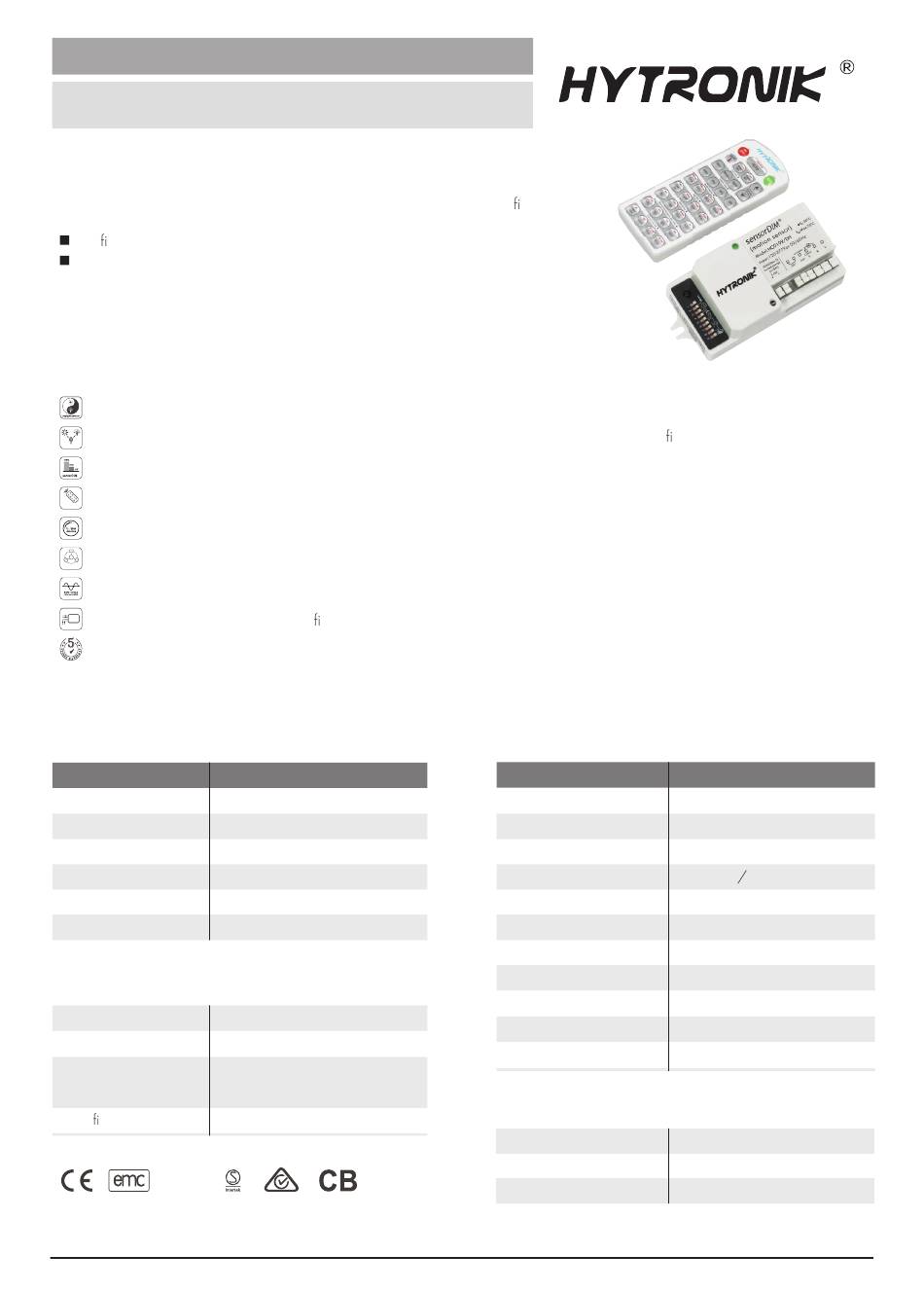

Daylight Harvest HF Sensor
HC019V/DH
Fixture Built-in Sensor with Photocell Advance
Applications
Occupancy detector with daylight harvest suitable for building into the xture:
Of ce / Commercial Lighting
Classroom
Use for new luminaire designs and installations
Features
Daylight harvest function to regulate light output for maintaining required lux level
Special photocell to measure and differentiate natural light from LED light from behind the xture cover
Photocell Advance
Tri-level dimming control based upon occupancy (also known as corridor function)
TM
One-key commissioning via programmable remote control
One-Key
Commissioning
1-10V dimming control method
Synchronised dimming with multiple sensor circuits
TX
RX
Synchronisation
control
Zero crossing detection circuit reduces in-rush current and prolongs relay life
Loop-in and loop-out terminal for ef cient installation
Loop in
Loop out
5-Year Warranty
Technical Data
Input Characteristics
Model No.
Mains voltage
Stand-by power
Load ratings:
Capacitive
Resistive
Warming-up
Safety and EMC
EMC standard (EMC)
Safety standard (LVD)
Radio Equipment (RED)
Certi cation
RED
Subject to change without notice.
TM
and Remote Control
HC019V/DH
220~240VAC 50/60Hz
<0.8W
800VA
1200W
20s
EN55015, EN61000
EN60669
EN300440, EN301489,
EN62479
Semko, CB, CE , EMC, RED, RCM
IP20
Sensor Data
Model No.
Sensor principle
Operation frequency
Transmission power
Detection angle
Sensitivity
Stand-by period
Environment
Operation temperature
Case temperature (Max.)
IP rating
Edition: 26 Feb. 2020
HC019V/DH
High Frequency (microwave)
5.8GHz +/- 75MHz
<0.2mW
Max. ( O x H) 12m x 6m
O
O
30
~ 150
50% / 100%
5s ~ 30min (selectable)
2 ~ 50 lux, disabled
0s ~ 1h, +∞ (selectable)
10% /30%
Ta: -20
O
C ~ +60
O
C
Tc: +80
O
C
IP20
Ver. A0
Page 1/7
Advertisement
Table of Contents
Related Manuals for Hytronik HC019V/DH
Summary of Contents for Hytronik HC019V/DH
- Page 1 Daylight Harvest HF Sensor HC019V/DH Fixture Built-in Sensor with Photocell Advance and Remote Control Applications Occupancy detector with daylight harvest suitable for building into the xture: Of ce / Commercial Lighting Classroom Use for new luminaire designs and installations Features...
- Page 2 Function It’s well known that LED lights have a totally different spectrum to natural light. Hytronik uses this principle and comes up with special photocell and sophisticated software algorithm to measure and differentiate natural light from LED light from behind the xture cover, so that this photocell can ignore internal LED light and only respond to the natural light outside.
- Page 3 By connecting the “SYNC” terminals in parallel (maximum 10pcs, see wiring diagram), no matter which sensor detects motion, all HC019V/DH in the group will turn on the lights (ambient natural light is below daylight threshold). The detection area is widely enlarged in this way while other settings such as hold-time, stand-by period, stand-by dimming level and daylight threshold on each individual unit stay the same.
- Page 4 L N L’ P 1-10V SYNC 1-10V 1-10V 1-10V Maximum 800W LED Driver LED Driver LED Driver HC019V/DH Multiple sensors control the same group of ballast /driver HC019V/DH HC019V/DH 1-10V SYNC 1-10V SYNC L’ L’ 1-10V 1-10V LED driver X LED driver Y Note: this 1-10V output is isolated, SELV output.
- Page 5 Settings (Remote Control HRC-11) Permanent ON/OFF function Press button “ON/OFF” to select permanent ON or permanent OFF mode. * Press button “AUTO”, “RESET” or “Ambient” to quit this mode. The mode will change to AUTO Mode after power failure. Reset Settings Press button “RESET”, all settings go back to DIP switch settings.
- Page 6 Daylight threshold Press buttons in zone “ Daylight threshold” to set daylight sensor at 2Lux/ 10Lux / 50Lux / 100Lux / 300Lux / 500Lux / Disable. The light will not turn on upon movement if ambient lux level exceeds the daylight threshold preset. Note: To set daylight sensor at 100Lux / 300Lux / 500Lux, press “Shift”...
- Page 7 ->knowledge ->Introduction of Photocell Advance 2. Regarding precautions for microwave sensor installation and operation, please kindly refer to www.hytronik.com/download ->knowledge ->Microwave Sensors - Precautions for Product Installation and Operation 3. Regarding Hytronik standard guarantee policy, please refer to www.hytronik.com/download ->knowledge ->Hytronik Standard Guarantee Policy Subject to change without notice.
