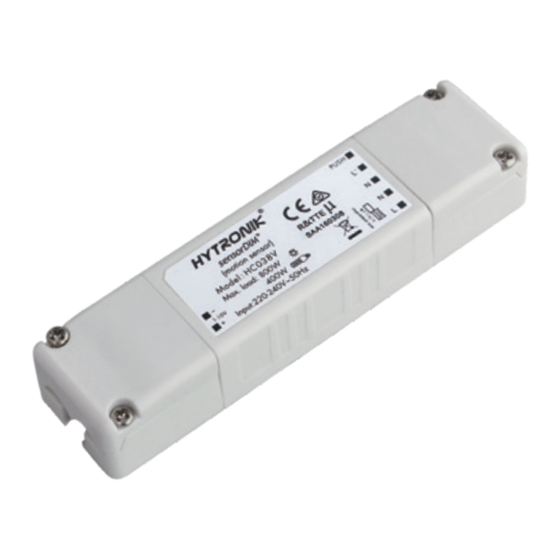

Hytronik HC038V Manual
Tri-level control sensor
Hide thumbs
Also See for HC038V:
- Manual (11 pages) ,
- Quick start manual (9 pages) ,
- Instruction manual (4 pages)
Advertisement
Quick Links
Tri-level Control Sensor
HC038V
HCD038
Detached Linear Version with Remote Control
Applications
Occupancy detector with tri-level dimming control suitable for indoor use:
Of ce / Commercial Lighting
Classroom
Meeting Room
Use for new luminaire designs and installations
Features
24 hour daylight monitoring dawn/dusk sensor
Daylight
Monitoring
Special photocell to measure and differentiate natural light from LED light
Photocell Advance
Lux off function, daylight threshold prior to motion detection
Intelligent
Photocell
Tri-level dimming control based upon occupancy (also known as corridor function)
TM
Optional 1-10V or DALI dimming control method
One-touch daylight learning via remote control
Ambient daylight
threshold
Zero crossing detection circuit reduces in-rush current and prolongs relay life (HC038V)
Loop-in and loop-out terminal for ef cient installation (HC038V)
Loop in
Loop out
5-year warranty
Technical Data
Input Characteristics
Model No.
Mains voltage
Stand-by power
Load ratings:
HC038V
HCD038
Warming-up
Environment
Operation temperature
Case temperature (Max.)
IP rating
Safety and EMC
EMC standard (EMC)
Safety standard (LVD)
EN60669-1/-2-1, AS/NZS60669-1/-2-1
Radio Equipment (RED)
Subject to change without notice.
HC038V HCD038
220~240VAC 50/60Hz
<0.5W
400VA (capacitive)
800W (resistive)
30mA, 16VDC (max. 15 devices)
20s
Ta: -20
O
C ~ +55
O
C
Tc: +80
O
C
IP20
EN55015, EN61000-3-2/-3-3
EN300440, EN301489-1/-3,
EN62479
CB, CE , EMC, LVD, RCM
RED
Sensor Data
Model No.
Sensor principle:
SAM7
SAM7/I
SAM7/FM SAM7/AA
HIR02 HIR04 HIR19
Operation frequency
Transmission power
Detection range:
SAM7
SAM7/I
SAM7/FM SAM7/AA
Max installation height
Max Detection range (Ø)
HIR02 HIR04
Max installation height
Max Detection range (Ø)
HIR19
Max installation height
Max Detection range (Ø)
Detection angle
Edition: 10 Mar. 2023
IP20
HC038V
HCD038
SAM7
SAM7/I
SAM7/FM
SAM7/AA
HIR02
HIR04
HIR19
High Frequency (microwave)
PIR Detection
5.8GHz +/- 75MHz
<0.2mW
6m
12m (Diameter)
3m
6m (Diameter)
15m (forklift)
12m (single person)
24m (forklift)
20m (single person)
30
O
~ 150
O
Ver. A0
Page 1/11
Advertisement
Related Manuals for Hytronik HC038V
Summary of Contents for Hytronik HC038V
- Page 1 Optional 1-10V or DALI dimming control method One-touch daylight learning via remote control Ambient daylight threshold Zero crossing detection circuit reduces in-rush current and prolongs relay life (HC038V) Loop-in and loop-out terminal for ef cient installation (HC038V) Loop in Loop out...
- Page 2 Sensor Main Body HC038V (1-10V output) RJ12 connector Push L’ 1-10V- 1-10V+ HCD038 (DALI output) RJ12 connector DALI Push 110.5 There are eight different sensor antenna modules to choose from: HF sensorDIM Antenna module Model SAM7 35.2 LED indication Infrared remote receiver...
- Page 3 8 sensor antennas and 2 control units offer 16 combinations in total: Microwave antenna SAM7 + DALI control HCD038 Microwave antenna SAM7 + 1-10V control HC038V Microwave antenna SAM7/I + DALI control HCD038 Microwave antenna SAM7/I + 1-10V control HC038V...
-
Page 4: Functions And Features
Function (SAM7/I, HIR04) It’s well known that LED lights have a totally different spectrum to natural light. Hytronik uses this principle and comes up with special photocell and sophisticated software algorithm to measure and differentiate natural light from LED light, so that this photocell can ignore the LED light and only respond to the natural light. - Page 5 Alternating current Loop-in and Loop-out Terminal (HC038V) Double L N terminal makes it easy for wire loop-in and loop-out, and saves the cost of terminal block and assembly time. Subject to change without notice.
- Page 6 Wiring Diagram LED Driver 1-10V + 1-10V - HC038V L’ LED Driver 1-10V + 1-10V 1-10V - 1-10V + DALI DALI DALI Driver DALI DALI DALI DALI DALI Driver HCD038 Push 1. 200 metres (total) max. for 1mm² CSA (Ta = 50℃) 2.
- Page 7 Model SAM7/AA Sensitivity set to maximum, Sensor head angle set to maximum 365° max. 20m max. 6m Model SAM7/FM Sensitivity set to maximum, Sensor head angle set to maximum 365° max. 6m max. 12m HIR19 (High-bay) HIR19: High-bay lens detection pattern for forklift @ Ta = 20℃ (Recommended installation height 10m-15m) Tangential (A) Radial (B)
- Page 8 Settings (Remote Control HRC-11, for SAM7/I , HIR04 and HIR19) Permanent ON/OFF function Press button “ON/OFF” to select permanent ON or permanent OFF mode. * Press button “AUTO”, “RESET” or “Ambient” to quit this mode. The mode will change to AUTO Mode after power failure. Reset Settings Press button “RESET”, all settings go back to default values.
- Page 9 Detection range All buttons in this zone are disabled for HIR04. Daylight threshold Press buttons in zone “ Daylight threshold” to set daylight sensor at 2Lux/ 10Lux / 50Lux / 100Lux / 300Lux / 500Lux / Disable. Note: To set daylight sensor at 100Lux / 300Lux / 500Lux, press “Shift” button rst. Ambient daylight threshold 1.
- Page 10 Settings (Remote Control HRC-05, for SAM7 & HIR07/FM & HIR02) Permanent ON/OFF function Press the “ON/OFF” button, the light goes to permanent on or permanent off mode, and the sensor is disabled. * Press “Auto Mode”, “RESET” or “Scene mode” buttons to quit this mode. The mode will change to AUTO Mode after power failure.
- Page 11 ->knowledge ->Introduction of Photocell Advance 2. Regarding precautions for microwave sensor installation and operation, please kindly refer to www.hytronik.com/download ->knowledge ->Microwave Sensors - Precautions for Product Installation and Operation 3. Regarding precautions for PIR sensor installation and operation, please kindly refer to www.hytronik.com/download ->knowledge ->PIR Sensors - Precautions for Product Installation and Operation...
