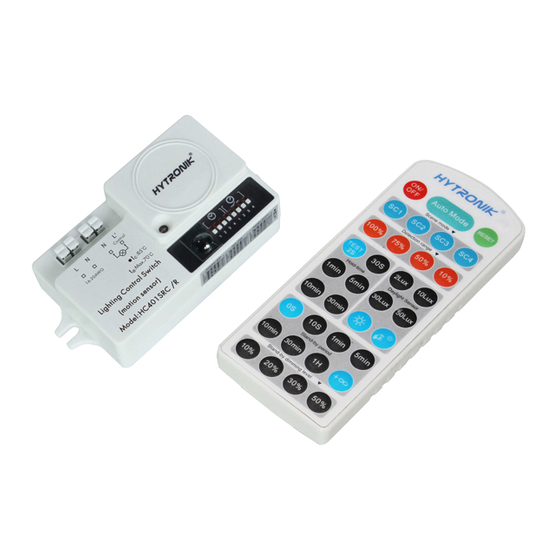

Hytronik HC401SRC/R Instruction Manual

INSTRUCTION MANUAL FOR MICROWAVE MOTION SENSOR
PRODUCT TYPE:
OPERATING VOLTAGE:
HF SYSTEM:
RATED LOAD:
(capacitive load)
DETECTION ANGLE:
POWER CONSUMPTION: <0.5W
DETECTION RANGE:
TIME SETTING:
DAYLIGHT SENSOR:
MOUNTING:
INSTALLATION HEIGHT: ≤15M
WORKING TEMP.:
The sensor is an active motion detector; it emits a high-frequency electro-magnetic wave 5.8GHz and receives its echo. The sensor detects the change
in echo from movement in its detection zone. A microprocessor then triggers the switch light ON command. Detection is possible through doors, panels
of glasses thin walls.
Note: the high-frequency output of this sensor is <0.2mW; approximately just 0.2‰ of the transmission power of a mobile telephone or the output of a
microwave oven.
PLEASE READ THESE INSTRUCTIONS CAREFULLY PRIOR TO INSTALLATION AND RETAIN THIS LEAFLET IN A KNOWN
1.1 Ensure that the electricity supply is switched off before installing or servicing this product.

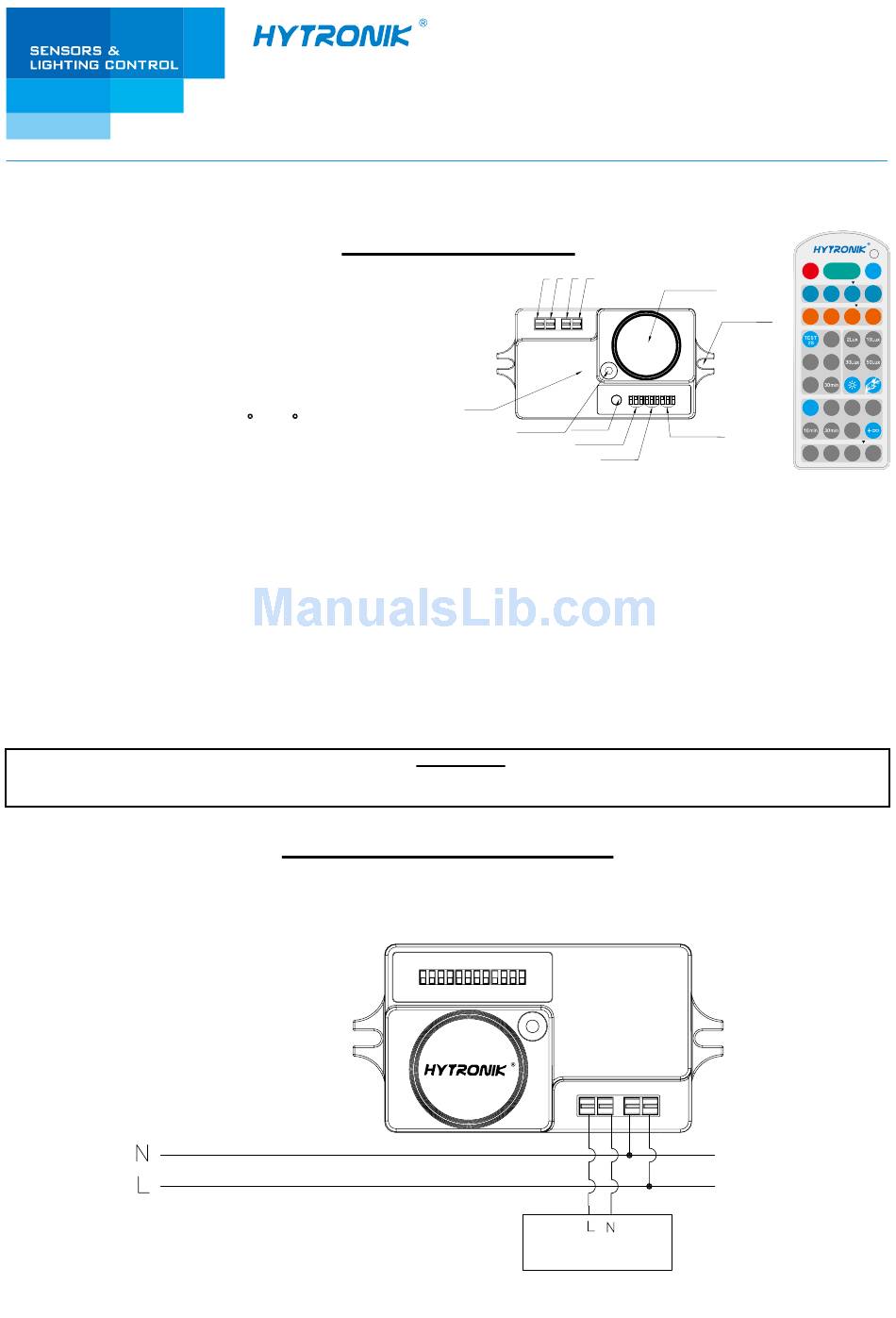

1.2 Wiring diagram
HYTRONIK INDUSTRIAL LIMITED
Room D, 10/f, Tower A, Billion Center, 1 wang Kwong Road,
Kowloon Bay, Kowloon, Hongkong
T: 00852-35197525 F: 00852-30116936
E: info@hytronik.com
Model No.:HC401SRC/R

Technical Specifications

Microwave Motion Sensor
120-277VAC 50Hz/60Hz
5.8GHz CW radar
400W@120VAC
800W@240VAC
1000W@277VAC
° °
30 ~150
Max. 16 meters in diameter, adjustable
5s~30min.
2~50Lux; disable
Indoors, ceiling & wall mounted
-20 ~ +60℃
AND SAFE PLACE FOR FUTURE REFERENCE.
SECTION 1 INSTALLATION AND WIRING
CHINA FACTORY
3rd Floor, block C, complex building, 155#, Bai'gang road south,
Bai'gang village, Xiao Jin Kou town, Huicheng district, Huizhou 516023
Tel:86-752-2772020
E: info@hytronik.com
L N N
Buzzer
IR receiver
Daylight sensor
Detection area
IMPORTANT
L' N
Control Gear
F:86-752-2777877
W:www.hytronik.com
L'
Antenna module
Installation hole
Daylight sensor
Hold-time
HC401SRC/R
N L
ON/
Auto Mode
RESET
OFF
Scene mode
SC1 SC2 SC3 SC4
Detection range
100% 75% 50% 10%
30S
Hold-time Daylight Sensor
1min 5min
10min
0S 10S 1min 5min
Stand-by period
1H
Stand-by dimming level
10% 20% 30% 50%
HRC-03
