Hytronik HC404VRC-KD Instruction Manual

PRODUCT TYPE:
OPERATING VOLTAGE:
HF SYSTEM:
RATED LOAD:
(capacitive load)
DETECTION ANGLE:
POWER CONSUMPTION:
DETECTION RANGE (DxH):
TIME SETTING:
DAYLIGHT SENSOR:
STAND-BY PERIOD:
STAND-BY DIMMING LEVEL: 10% ~ 50%
MOUNTING:
WORKING TEMP.:
The sensor is an active motion detector; it emits a high-frequency
electro-magnetic wave at 5.8GHz and receives its echo.The sensor
detects the change in echo from movement in its detection zone.
A microprocessor then triggers the switch light ON command. Detection
is possible through doors, panes of glass and thin walls.
Note: the high-frequency output of this sensor is <0.2mW; approximately
just 0.2‰ of the transmission power of a mobile telephone.
SAM5
35.9
Infrared remote receiver
Daylight sensor
30.7
40.4
PLEASE READ THESE INSTRUCTIONS CAREFULLY PRIOR TO INSTALLATION AND RETAIN THIS LEAFLET IN A KNOWN
1.1 Ensure that the electricity supply is switched off before installing or servicing this product.

1.2 Wiring diagram

HYTRONIK INDUSTRIAL LIMITED
Room D, 10/f, Tower A, Billion Center, 1 wang Kwong Road,
Kowloon Bay, Kowloon, Hongkong
T: 00852-35197525 F: 00852-30116936
E: info@hytronik.com

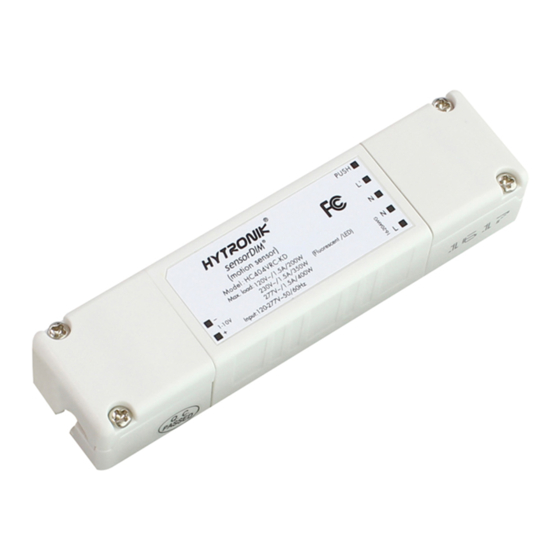

Instruction Manual for Microwave Motion Sensor
Tri-level Version, Model No.:HC404VRC-KD

Technical Specifications

Microwave Motion Sensor
120-277VAC 50/60Hz
5.8GHz CW radar
120V~ / 1.5A / 200W
230V~ / 1.5A / 350W
277V~ / 1.5A / 400W
30 O ~ 150 O
<1W
Max. 12 x 6m (SAM5)
Max. 16 x 15m (SAM6)
2s, 30s~30min.
2~50Lux; disable
0s, 10s ~ 30min, +∞
Indoors, ceiling&wall mounted
-20 O C ~ +60 O C
Cable side entry
11.2
Cable back entry
AND SAFE PLACE FOR FUTURE REFERENCE.

SECTION 1 INSTALLATION AND WIRING

CHINA FACTORY
3rd Floor, block C, complex building, 155#, Bai'gang road south,
Bai'gang village, Xiao Jin Kou town, Huicheng district, Huizhou 516023
Tel:86-752-2772020
E: info@hytronik.com
RJ12 (sensor antenna)
1-10V-
1-10V+
SAM6 Infrared remote receiver
Daylight sensor
Slots for T5 tube
IMPORTANT
F:86-752-2777877
W:www.hytronik.com
HC404VRC-KD
Slots for T8 tube
32.2
Push
L'
N
N
L
ON/
Auto Mode Reset
OFF
SC1 SC2 Power
+
100%
Scene mode
Dim
-
Power
SC3 SC4
80%
Detection range
100% 50% 10%
Stand-by dimming level Daylight Sensor
10% 20% 30%
2Lux
Test
30s 1min 5min
10Lux
2s
Hold-time
5min 10min 30min 50Lux
Lux
0s 10s 1min
Disable
Stand-by period
10min 30min M/A
HRC-05
15
12
