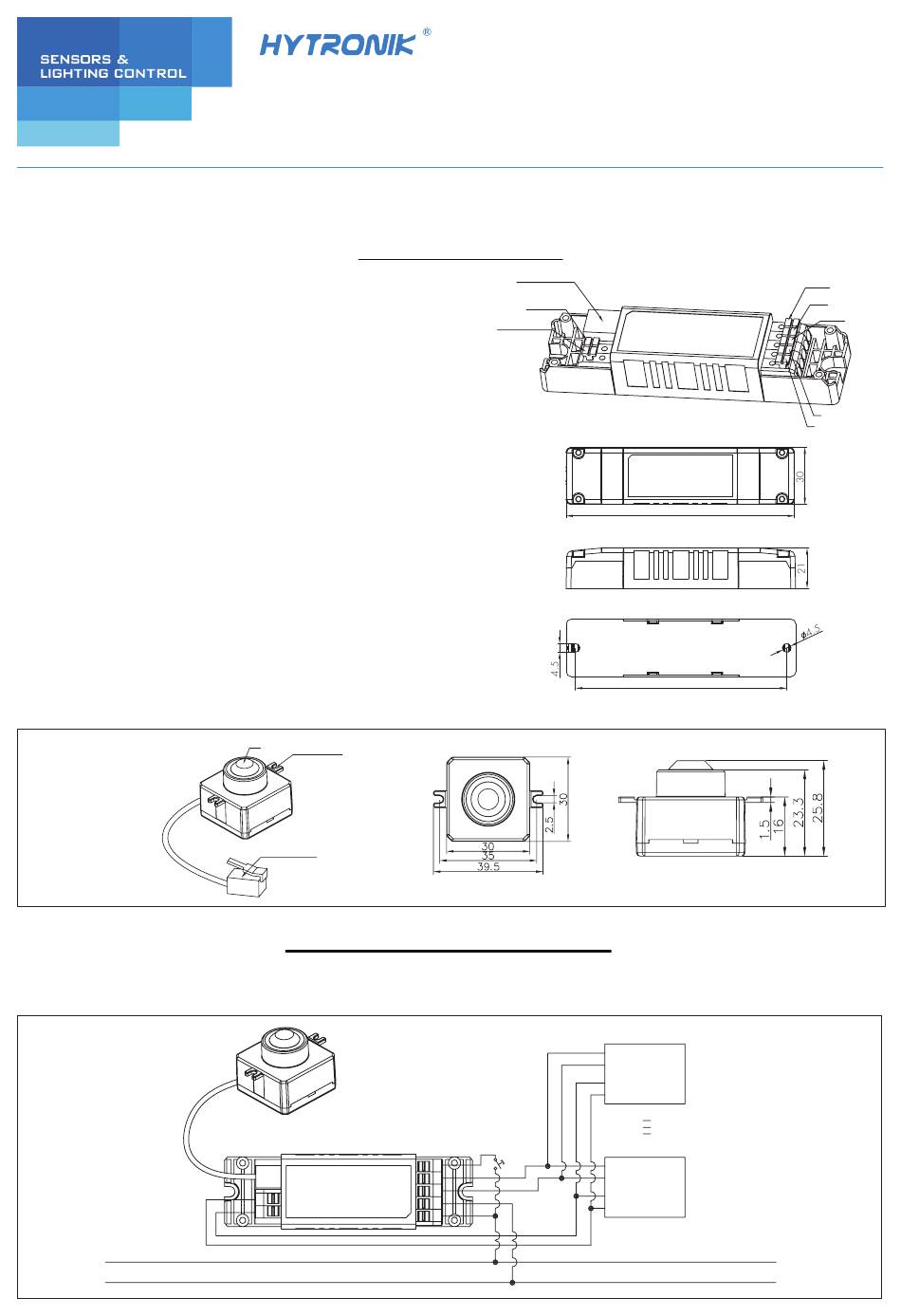

Hytronik HC438V Instruction Manual

DAYLIGHT INTERACTIVE VERSION, MODEL NO.:HC438V + HIR01
PRODUCT TYPE:
OPERATING VOLTAGE:
RATED LOAD (capacitive load):
DETECTION ANGLE:
POWER CONSUMPTION:
DETECTION RANGE (DxH):
HOLD TIME:
DAYLIGHT SENSOR:
STAND-BY PERIOD:
STAND-BY DIMMING LEVEL:
MOUNTING:
WORKING TEMP.:
WARM-UP:
Note: during the warm-up period when first power on,luminiares
always stay on 100% without daylight interactive.
PIR Sensor Head
Model: HIR01
1.1 Ensure that the electricity supply is switched off before installing or servicing this product.
1.2 Wiring diagram
L
N
HYTRONIK INDUSTRIAL LIMITED
Room D, 10/f, Tower A, Billion Center, 1 wang Kwong Road,
Kowloon Bay, Kowloon, Hongkong
T: 00852-35197525
E: info@hytronik.com
INSTRUCTION MANUAL FOR DETACHED LINEAR SENSOR
Technical Specifications
PIR Sensor
120-277V 50Hz/60Hz
120V ~ / 1.7A / 200VA
277V ~ / 1.5A / 400VA
360°
<1W
Max. 6 x 3m
30s ~ 30min.
2 ~ 50Lux; disable
0s, 10s ~ 30min, +∞
10% ~30%
Indoors, ceiling & wall mounted
O
0 ~ +50 C
30s
Lens
Installation hole
RJ12 connector
SECTION 1 INSTALLATION AND WIRING
1-10V -
1-10V +
F: 00852-30116936
RJ12 connector
1-10V-
1-10V+
P
L'
N
N
L
CHINA FACTORY
3rd Floor, block C, complex building, 155#, Bai'gang road south,
Bai'gang village, Xiao Jin Kou town, Huicheng district, Huizhou 516023
Tel:86-752-2772020 F:86-752-2777877
E: info@hytronik.com W:www.hytronik.com
HC438V
120
110.5
L
1-10V
N
LED Driver
1-10V +
1-10V -
L
N
1-10V
LED Driver
1-10V +
1-10V -
Push
L'
N
N
L
