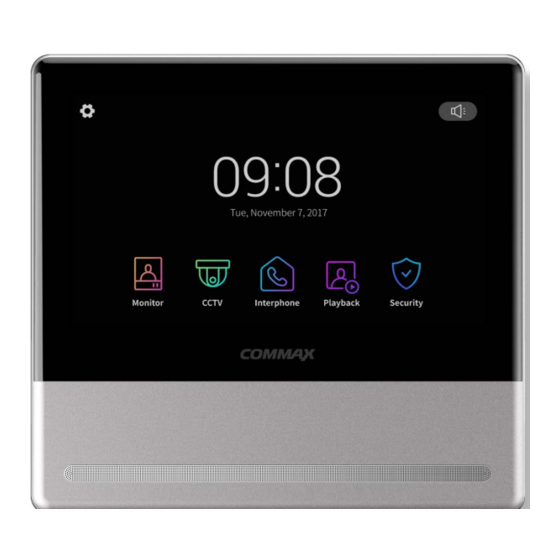

Commax CDV-70QT User Manual

Color video door phone
Hide thumbs

Advertisement

Table of Contents

User Manual
Color video door phone CDV-70QT
• Thank you for purchasing COMMAX products.
• Thank you for purchasing COMMAX products.
• Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
• Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
instructions to use a product exactly.
instructions to use a product exactly.
• The company is not responsible for any safety accidents caused by abnormal operation of the product.
• The company is not responsible for any safety accidents caused by abnormal operation of the product.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CDV-70QT and is the answer not in the manual?

Questions and answers

Related Manuals for Commax CDV-70QT

Summary of Contents for Commax CDV-70QT

  • Page 1 User Manual Color video door phone CDV-70QT • Thank you for purchasing COMMAX products. • Thank you for purchasing COMMAX products. • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow instructions to use a product exactly.

  • Page 2: Table Of Contents

    9. Specifications ·························· 24 10. Safe operation guide ······················ 24 Greetings ● Thank you for Purchasing COMMAX Products ● Please carefully read this User,s Manual (In particular, pre cautions for safety) before using a product and follow instructionsto use a product exactly.

  • Page 3: Warnings And Caution

    2. Warnings and caution Please follow the things described below in order to prevent any danger or property damage. Prohibition. Warning No disassembly It may cause a serious damage or injury if violated. No touch Must follow strictly. Caution Shows plugging out the power cord It may cause a minor damage or injury if violated.
  • Page 4 Warning Please don’ t disassemble, If an abnormal sound, burning Please don’t insert any Please use only the designated repair or rebuild this product smell or smoke is coming out metallic or burnable materials batteries for the products of arbitrarily (please contact the of the product, please plug out into the ventilation hole.

  • Page 5: Parts Names

    3. Parts names Parts Parts Parts Micro SD card slot Speaker Touch LCD Connection terminal Microphone Power switch...

  • Page 6: How To Use The Product

    4. How to use the product 4-1 Main screen Menu Details View the door camera Monitor - You cannot use it if door camera is not connected Monitoring CCTV CCTV - You cannot use it if CCTV is not connected Interphone Move to Interphone menu Playback...
  • Page 7 4-2 Monitor - The following screen will be shown when calling from door camera or touching the button ’Monitor' - Max. time : Monitoring (30 sec.), Call and Talk (60 sec.) - If the camera is not installed, it cannot be executed. Selected camera: Selected camera will be shown on the screen.
  • Page 8 Call connection: To call & answer the call. - After call is connected, 7 & 8 buttons will be changed as follows. Door open (No.7): To open the door. End call (No.8): To end a call. Cautions If you set ‘Fast mode’ in the menu option ‘Open door mode’, there will be shown the ‘Door open’...
  • Page 9 * Calling of Interphone In case of installing additional interphone, when a visitor calls from door camera, a calling tone(sound) will be ringed in the interphone as well. - Max 60 seconds for call and talk time When you pick up the handset, it’s available to talk with door camera. During a call, press the door open button to open the door.
  • Page 10 - If you want to stop storage, you should touch the icon. Image storage: To store (save) a still-cut image. - When you touch a button, you can store images. And the below icon will be shown during storage. ① Video-clip cannot be stored while SD card is not inserted. - The images can be stored in the monitor's embedded memory.
  • Page 11 Volume control : To control receiving volume (1-3 level). Call end : To finish call connection and talk. Interphone call : The interphone is called only while pressing the call button. (A ringtone sounds only while you are pressing and holding) 4-5 Playback - When you touch Playback button, the below screen will be shown.
  • Page 12 Date &Time : Current date and time will be indicated. Delete files: To delete images. - To verify video-clip. CD Storage source & file No. CT Left/Right movement: To move the previous/next file. Playing the file: To play the current video-clip. During playback, the icon is changed by the pause button.
  • Page 13 - When the function is active (red), the corresponding function is activated. (You can turn off it by click.) - CCTV1 is recorded in case of sensor 1 emergency, and CCTV2 is automatically recorded in case of sensor 2. (If there is no SD card, it will be replaced with steel cut image. If CCTV is not connected to the sensor, it will not be recorded.) 2) During Security mode : Indicates the security sensor being executed.
  • Page 14 Recording/Wi-Fi 1) Auto recording - To set the auto save mode. (Select between Photo / Video) However, if there is no SD card, video mode cannot be selected. - This function is only available when a call comes from a door camera (entrance). And you cannot save photos and video-clip manually until the automatic saving is started.
  • Page 15 3) Wi-Fi : Wireless network connection - Settings -> Recording / Wi-Fi -> Wi-Fi - Wi-Fi connection : Click the check box to turn on or off Wi-Fi You can search surrounding network and connect to selected wireless network. Select the Wi-Fi from the network list of auto-discovered and enter the password to connect - Add Wi-Fi derectly : When the Wi-Fi you want is not discovered, you can add it entering the Wi-Fi information directly to the list.
  • Page 16 2) Touch sound - To turn on / off the touch tone. 3) Interphone calling tone (sound), Door1, Door2. - You can select calling tone of interphone and individual door camera. (Door1, Door2) - 6 types of calling tones are available. Storage 1) SD card format - To initialize the SD card.
  • Page 17 1) System time - To Set-up Date and Time. - The changed time will be displayed on the main screen afterward. Display 1) Screen adjustment - Brightness/ Luminosity / Chroma adjustment is available as below picture. (In this case, you can adjust the display of door camera.) - The range for adjustment is 0-20 level.
  • Page 18 LCD OFF(After 30sec) : To set screen off function when entering standby mode (Activated in 30 seconds after setting) Open Frame : Enable the Openframe mode while entering standby mode * Caution : If motion detection function is activated, this function does not work. - Open Frame Time : You can set the usage time of the wallpaper frame function.
  • Page 19 -No background image : The selected screen is displayed without background images. -Basic image : The background is set randomly among the images stored in the internal memory. 3) Display panel cleaning mode - When selecting ‘Cleaning mode’, the touch screen is deactivated for 30 seconds. (You cannot stop this function until it is finished.) 4) Display - Set the brightness of the menu screen.
  • Page 20 3) Door1 opening module You can choose a module to open door1 -Door camera: Operation of door opening from door camera -Digital door lock: Open the door from the digital door lock. 4) Security password - Set the password (4 digits) to be used to disable the security mode or to dismiss the alarm - You cannot use 0000, 1234, 4321 as a password.

  • Page 21: Using Smartphone

    (In this case, you can re-register the device after initializing the device connection by executing 'Etc' -> 'System reset' in the product setting menu.) 1) Sign up - Install and run the ‘COMMAX Hey Call’ app using your mobile phone. - Select ‘Sign up’ button - Select your country - Enter ‘Email Address(ID)’...

  • Page 22: How To Install

    4) Call using a smartphone - When a visitor call comes, a push alarm occurs on the smartphone.Access Smartphone - Run ‘COMMAX Hey Call’ app. - When the product is connected, the visitor is displayed. - Click ‘Talk’button to make a call If you press 'Open Door' button, a warning message will be displayed.

  • Page 23: Wiring Diagram

    7. Wiring diagram Note: 1. In case, if there is a high-voltage power line in the area of installation, use metal tube coaxial cable for wiring. 2. Beware of wrinkling of line coating and cable stick-outs as it may cause circuit shortage and operation inconvenience.

  • Page 24: Package Contents

    When wiring(Camera, CCTV, Interphone, sensor), please use the core provided in the package to wrap around as shown in the above 8. Package contents Monitor(CDV-70QT) 1EA Wall bracket for monitor 1EA User Manual 1EA Wall bracket mounting screw 4EA Monitor fixing screw 1EA...

  • Page 25: Specifications

    9. Specifications CDV-70QT Model Camera- 4 wires, CCTV- 2 wires, DDL RF Module- 4 wires (Power 2 /open 2) Transmission Method Interphone- 4 wires , Sensor- 2 wires Power Source 100V-240V~, 50/60Hz Stand-by : 3.5 W Consumption Max : 15 W...
  • Page 26 513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Int’l Business Dept. Tel. : +82-31-7393-540~550 Fax. : +82-31-745-2133 Web site : www.commax.com Printed In Korea / 2021.08.104 Edited.2021.08.18...
