r.LiNK Video-inserter
CI-RL3-R40
Compatible with

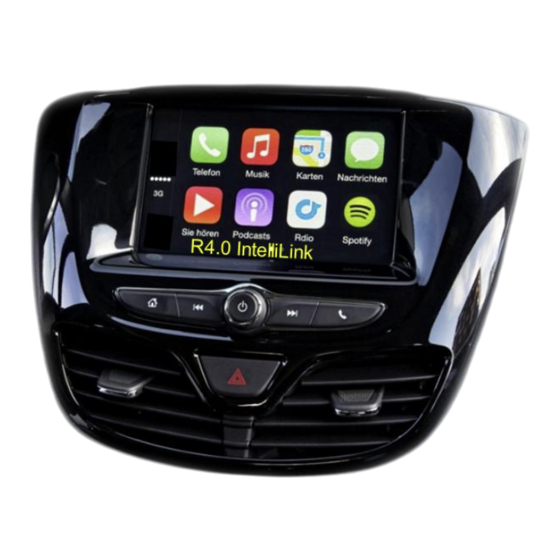

Opel vehicles with R4.0 IntelliLink system
and 7" monitor with DIN-cage attached
Video-inserter with 2 video inputs,
rear-view camera input and CAN control
Product features
Video-inserter for factory infotainment systems
2 CVBS video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner)
1 Rear-view camera CVBS video-input
Automatic switching to rear-view camera input on engagement of reverse gear
Activatable parking guide lines for the rear-view camera (not available on all
vehicles)
Video-in-motion in drive mode (ONLY for connected video-sources)
Video-inputs PAL and NTSC compatible
Version 16.03.2020
HW: CAM(V97)/(V30)
CI-RL3-R40
