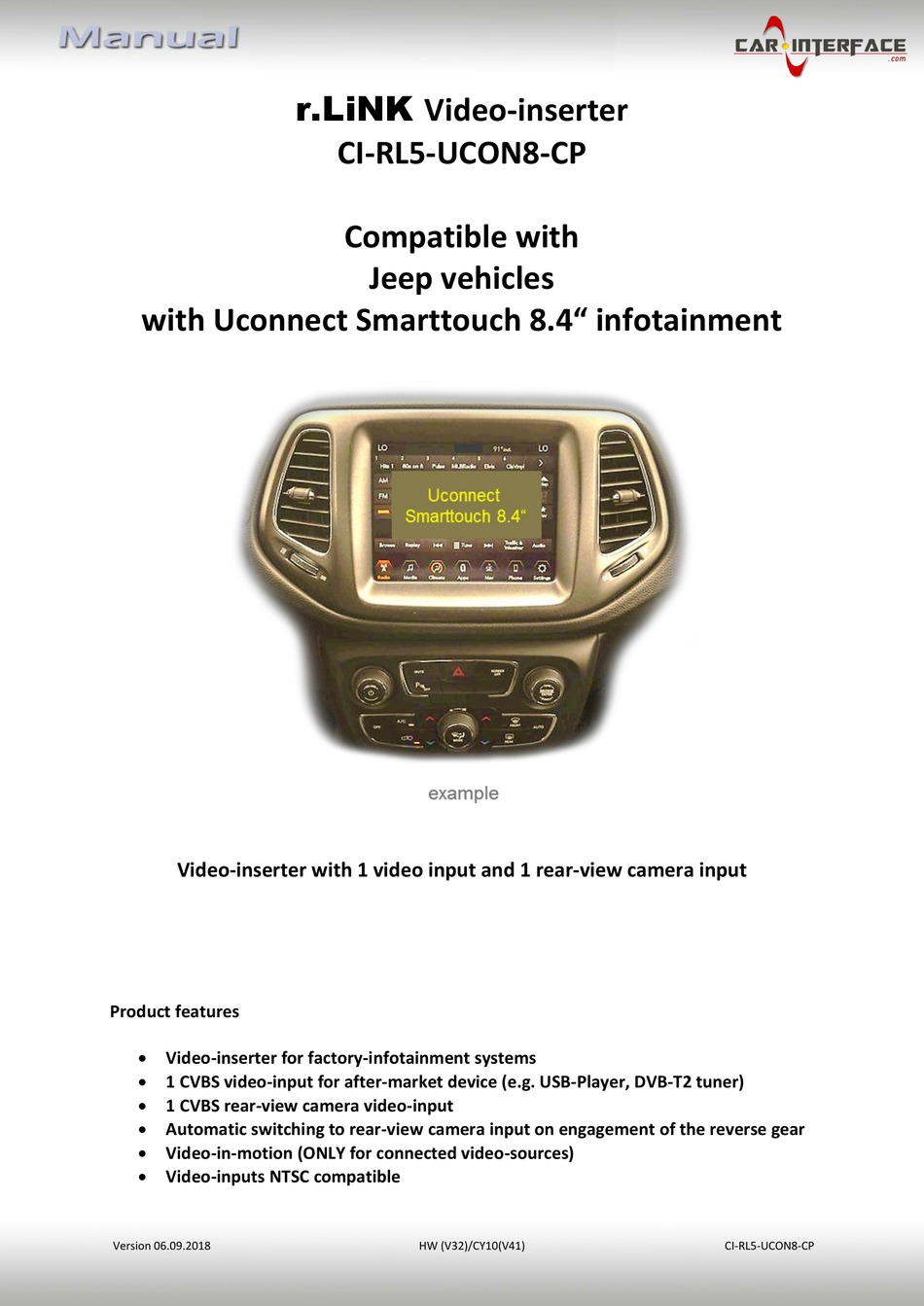

r.LiNK Video-inserter
CI-RL5-UCON8-CP
Compatible with
Jeep vehicles
with Uconnect Smarttouch 8.4" infotainment
Video-inserter with 1 video input and 1 rear-view camera input
Product features
Video-inserter for factory-infotainment systems
1 CVBS video-input for after-market device (e.g. USB-Player, DVB-T2 tuner)
1 CVBS rear-view camera video-input
Automatic switching to rear-view camera input on engagement of the reverse gear
Video-in-motion (ONLY for connected video-sources)
Video-inputs NTSC compatible
Version 06.09.2018
HW (V32)/CY10(V41)
CI-RL5-UCON8-CP
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for r.LiNK CI-RL5-UCON8-CP
Summary of Contents for r.LiNK CI-RL5-UCON8-CP
- Page 1 Video-inserter CI-RL5-UCON8-CP Compatible with Jeep vehicles with Uconnect Smarttouch 8.4“ infotainment Video-inserter with 1 video input and 1 rear-view camera input Product features Video-inserter for factory-infotainment systems 1 CVBS video-input for after-market device (e.g. USB-Player, DVB-T2 tuner) ...
-
Page 2: Table Of Contents
To receive a free update, the interface must be sent in at own cost. Labour cost for and other expenses involved with the software-updates will not be refunded. Version 06.09.2018 HW (V32)/CY10(V41) CI-RL5-UCON8-CP... -
Page 3: Prior To Installation
1. Prior to installation Read the manual prior to installation. Technical knowledge is necessary for installation. The place of installation must be free of moisture and away from heat sources. 1.1. Delivery contents Version 06.09.2018 HW (V32)/CY10(V41) CI-RL5-UCON8-CP... -
Page 4: Connectors - Video Interface (Daughter Pcb)
1.3. connectors - video-interface (daughter PCB) The video-interface converts the video signals of connected after-market sources in a factory monitor compatible picture signal which is inserted in the factory monitor, by using separate trigger options. Version 06.09.2018 HW (V32)/CY10(V41) CI-RL5-UCON8-CP... -
Page 5: Installation
If power source is not taken directly from the battery, the connection has to be checked for being start-up proven and permanent. 2.1. Place of installation The daughter PCB shell be installed and connected inside the factory Monitor housing. Version 06.09.2018 HW (V32)/CY10(V41) CI-RL5-UCON8-CP... -
Page 6: Connection Scheme
2.2. Connection Scheme Version 06.09.2018 HW (V32)/CY10(V41) CI-RL5-UCON8-CP... -
Page 7: Installation - Ribbon Cables Into The Monitor Panel
Installation - ribbon cables into the monitor panel Remove the factory monitor and open it`s housing. The daughter PCB is built to be installed into the optical lead between the monitor panel and mainboard of the vehicles monitor. Version 06.09.2018 HW (V32)/CY10(V41) CI-RL5-UCON8-CP... - Page 8 Version 06.09.2018 HW (V32)/CY10(V41) CI-RL5-UCON8-CP...
-
Page 9: Warning Notes, Concerning The Installation Of Ribbon Cables
180° position to the connector. Each deviation from a perfect contact position will curse faulty contact and even danger of short circuit 2) The ribbon cable’s contacting side always has to correspond to the contacting side of the connector, concerning the mounting position. Version 06.09.2018 HW (V32)/CY10(V41) CI-RL5-UCON8-CP... -
Page 10: Cable Connections - Daughter Pcb
Connect the 6pin interface cable’s single red colored wire to S-Contact terminal 86s +12V (e.g. glove compartment illumination). Connect the 6pin interface cable’s single green colored wire to +12V reverse signal (see following chapter). Connect the 6pin interface cable’s black wire to vehicle Ground. Version 06.09.2018 HW (V32)/CY10(V41) CI-RL5-UCON8-CP... -
Page 11: After-Market Rear-View Camera
(87). Connect the reverse light’s power to the relay’s coil terminal (85). Connect permanent power to the relay’s input terminal (30). Connect vehicle’s ground to the relay’s coil terminal (86). Version 06.09.2018 HW (V32)/CY10(V41) CI-RL5-UCON8-CP... -
Page 12: Connection - Video Inputs
Connect the rear-view camera’s RCA to the female RCA „Camera IN“ of the video cable. Connect the RCA of the video source to the female RCA „Video IN1“ and „Video IN2“ of the video cable. Version 06.09.2018 HW (V32)/CY10(V41) CI-RL5-UCON8-CP... -
Page 13: Connection - Keypad
2.7. Connection - keypad Connect the keypad’s female 4pin connector to the male 4pin connector of the 6pin interface cable. Version 06.09.2018 HW (V32)/CY10(V41) CI-RL5-UCON8-CP... -
Page 14: Interface Operation By External Keypad
Contrast Brightness Saturation Position H (horizontal) Position V (vertical) IR-AV1/2 (no function) Guide L/R (no function) UI-CNTRL (no function) Size H/V (picture size horizontal/vertical) Note: To adjust the reverse picture settings, engage the reverse gear. Version 06.09.2018 HW (V32)/CY10(V41) CI-RL5-UCON8-CP... -
Page 15: Specifications
NTSC mentioned. If yes, set source fixed to NTSC handle NTSC input. vertically. output. Camera is being tested Camera input picture under fluorescent light Test camera under natural light outside the flickers. which shines directly into the garage. camera. Version 06.09.2018 HW (V32)/CY10(V41) CI-RL5-UCON8-CP... - Page 16 Apply +12V from the reverse light. Use a relay or camera input when reverse cable doesn’t receive the electronics to "clean" reverse gear lamp power. gear is engaged. +12V reverse signal 10R-03 5384 Made in China Version 06.09.2018 HW (V32)/CY10(V41) CI-RL5-UCON8-CP...
