r.LiNK Video inserter
CI-RL3-MIB-4
Compatible with VAG infotainment systems from MIB/MIB2
construction kits - High und Standard executions
Compatible with Audi vehicles with MMI ( on MIB base)
Bentley vehicles with MIB with 8" monitor
Lamborghini vehicles with MIB with monitor in instrument
Porsche vehicles with PCM 4.0
Seat vehicles with Media System Plus – navigation system PLUS
Skoda vehicles with Columbus, Amundsen and Bolero
VW vehicles with Discovery Pro, Discover Media, Composition Media
Video-inserter for one rear-view camera and two more video inputs

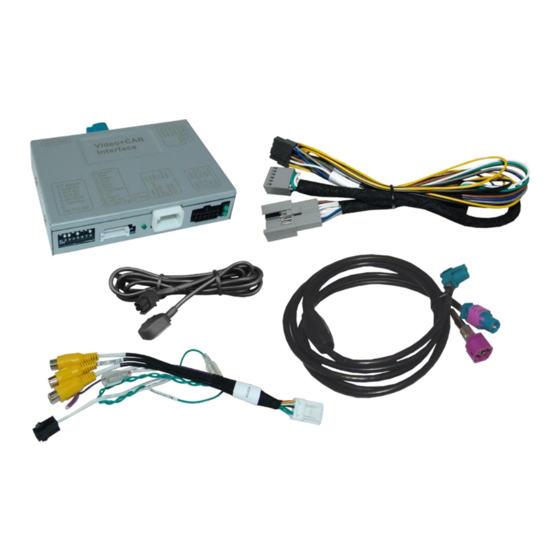

Product features
Video-inserter for factory-infotainment systems
CVBS Input for one rear-view camera
2 CVBS Video-inputs for after-market Video sources (e.g. DVD-Player, DVB-T Tuner)
Automatic switching to rear-view camera input on engagement of the reverse gear
Activatable parking guide lines for rear-view camera (not available for all vehicles)
Video-in-motion (ONLY for connected video-sources)
AV-inputs NTSC compatible
Version 07.05.2020
HW: GD(V97)/(V33)
CI-RL3-MIB4
Advertisement
Table of Contents
Related Manuals for r.LiNK CI-RL3-MIB-4
Summary of Contents for r.LiNK CI-RL3-MIB-4

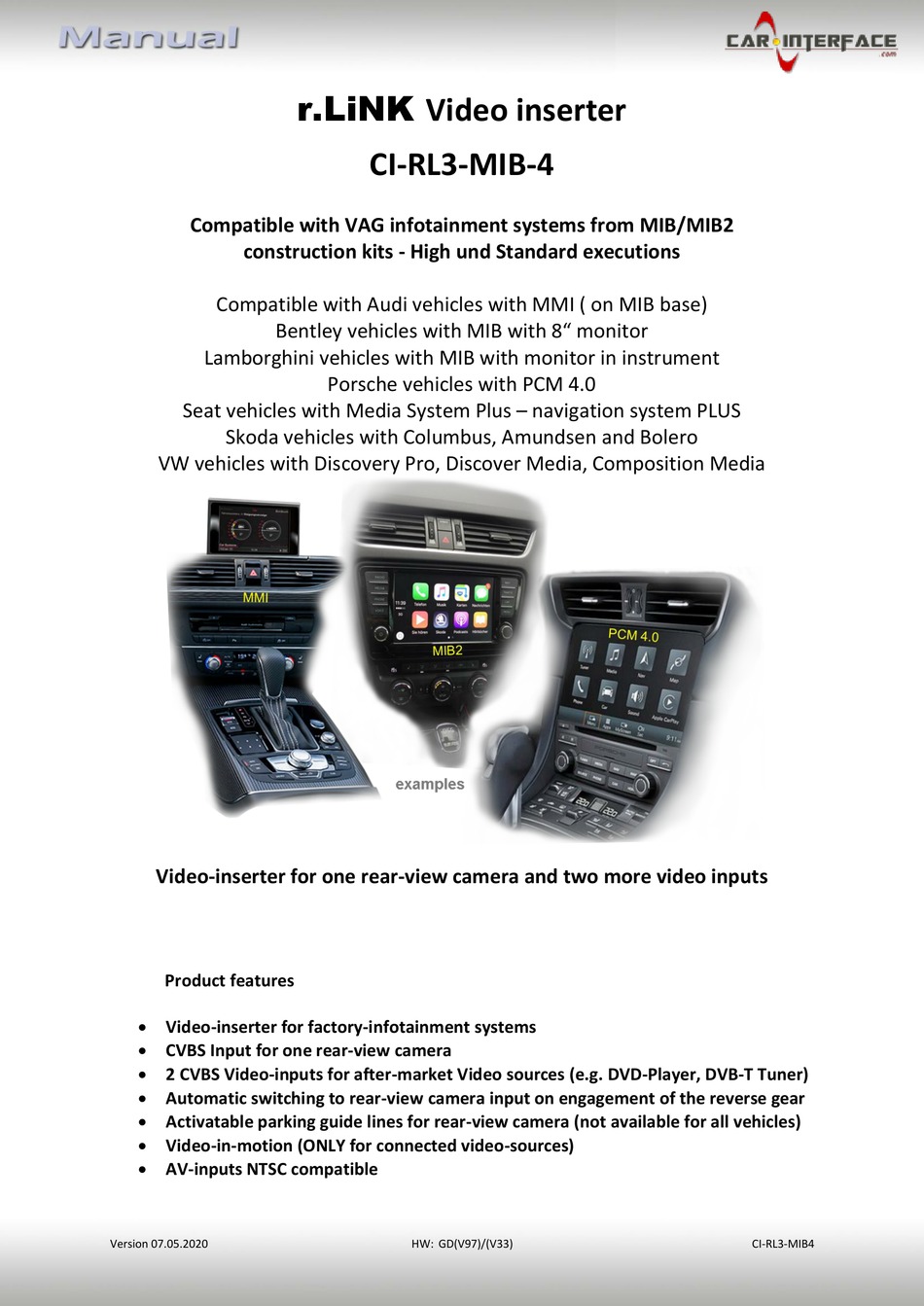

- Page 1 Video inserter CI-RL3-MIB-4 Compatible with VAG infotainment systems from MIB/MIB2 construction kits - High und Standard executions Compatible with Audi vehicles with MMI ( on MIB base) Bentley vehicles with MIB with 8“ monitor Lamborghini vehicles with MIB with monitor in instrument Porsche vehicles with PCM 4.0...
-
Page 2: Table Of Contents
Case 2Interface does not receive the reverse gear signal 2.7. Connecting video-interface and external keypad 2.8. Picture settings and guide lines 3. Interface operation 3.1. By factory infotainment button 3.2. By keypad 4. Specifications 5. FAQ – Trouble Shooting-Interface functions Version 07.05.2020 HW: GD(V97)/(V33) CI-RL3-MIB-4... -
Page 3: Prior To Installation
Due to changes in the production of the vehicle manufacturer there’s always a possibility of incompatibility. 1.1. Delivery contents Take down the serial number of the interface and store this manual for support purposes: ____________________ Version 07.05.2020 HW: GD(V97)/(V33) CI-RL3-MIB-4... -
Page 4: Checking The Compatibility Of Vehicle And Accessories
PDC and guidelines If the video interface does not receive the required information from the vehicle CAN-bus, neither guide-lines nor optical PDC display will be supported. AV input signal only NTSC compatible Version 07.05.2020 HW: GD(V97)/(V33) CI-RL3-MIB-4... -
Page 5: Boxes And Connectors - Video Interface
Try all 6 possible combinations of Dips 6, 7 and 8 to Monitor receive the best picture (quality and size) or see chapter adjustment “Monitor adjustment (Dip 6-8)” See the following chapters for detailed information. Version 07.05.2020 HW: GD(V97)/(V33) CI-RL3-MIB-4... -
Page 6: Enabling The Optical Pdc Function (Dip1)
VW Golf7 5.8inch 7inch Audi A3 (8V) 5.8inch 8.3inch Audi A4 (8W), A5 (8T) 7inch Audi A6/A7 (4G) 8inch 7inch Audi Q5 8.3inch Audi Q7 (4M) Touch 8.3inch Audi Q7 (4M) MMI 7inch Porsche VW Touran Version 07.05.2020 HW: GD(V97)/(V33) CI-RL3-MIB-4... -
Page 7: Settings Of The 4 Dip Switches (Can Function - Red)
(most times in DIN size) in the centre console, in the glove compartment or hidden in the dashboard. In Porsche PCM4.0 the head unit can be found directly behind the monitor and is connected to it. Version 07.05.2020 HW: GD(V97)/(V33) CI-RL3-MIB-4... -
Page 8: Connection Schema
2.2. Connection schema Version 07.05.2020 HW: GD(V97)/(V33) CI-RL3-MIB-4... -
Page 9: Connection To The Factory Head Unit
12pin connector of the PNP harness. Clip in the female 12pin connector of the PNP harness in the previously become free position of the female Quadlock connector before finishing the Quadlock reconnection at the rear of the head-unit. Version 07.05.2020 HW: GD(V97)/(V33) CI-RL3-MIB-4... -
Page 10: Power - And Can Connection For The Video Interface
Connect the single, yellow wire of the 10pin power/CAN cable to +12V permanent and stabile power supply. Connect the single, black wire of the 10pin power/CAN cable to the vehicle’s negative ground. Version 07.05.2020 HW: GD(V97)/(V33) CI-RL3-MIB-4... -
Page 11: Analog Power Supply For The Video Interface
ACC-out (max 3A) and the purple coloured wire Manual ACC of the 12pin interface cable both have to be connected additionately to S-contact terminal 86s +12V (e.g. glove compartment illumination). Version 07.05.2020 HW: GD(V97)/(V33) CI-RL3-MIB-4... -
Page 12: Connection Of Video-Sources
12pin interface cable. Connect the video RCA of the Rear-view camera to the female RCA connector “Camera IN” of the 20pin interface cable (refer also to chapter “Video signal connection of the rear-view camera”) Version 07.05.2020 HW: GD(V97)/(V33) CI-RL3-MIB-4... -
Page 13: Audio Insertion
“Camera IN” while the reverse gear is engaged. Additionally, the +12V (max. 3A) power supply for the rear-view camera can be taken from the green wire of the 12pin interface cable. Version 07.05.2020 HW: GD(V97)/(V33) CI-RL3-MIB-4... - Page 14 Connect the output connector (87) of the relay to the rear-view camera’s power- cable, like you did it to the green “Reverse-IN” cable before. Connect stabile and permanent +12V to the relay’s input connector (30). Version 07.05.2020 HW: GD(V97)/(V33) CI-RL3-MIB-4...
-
Page 15: Connecting Video-Interface And External Keypad
Connect the female 4pin connector of the keypad to the male 4pin connector of the 12pin interface cable. Note: Even if switching through several video sources by the keypad mightn’t be required, the invisible connection and availability is strongly recommended. Version 07.05.2020 HW: GD(V97)/(V33) CI-RL3-MIB-4... -
Page 16: Picture Settings And Guide Lines
Note: If there is no communication between interface and the vehicle`s CAN-bus (several vehicles aren’t compatible), the reverse gear guide-lines can`t be shown during the vehicle’s operation, even if they once appear after having switched the system to powerless! Version 07.05.2020 HW: GD(V97)/(V33) CI-RL3-MIB-4... -
Page 17: Interface Operation
7V - 25V Stand-by power drain 12mA Power 210mA @12V Video input 0.7V - 1V Video input formats NTSC Temperature range -40°C to +85°C Dimensions video-box 119 x 24 x 114 mm (W x H x D) Version 07.05.2020 HW: GD(V97)/(V33) CI-RL3-MIB-4... -
Page 18: Faq - Trouble Shooting-Interface Functions
