Video inserter
CI-RL4-MIB
Compatible with VAG infotainment systems from MIB/MIB2
construction kits - High und Standard executions
Compatible with Audi vehicles with MMI (on MIB base)
Bentley vehicles with MIB with 8inch monitor
Lamborghini vehicles with MIB with monitor in instrument
Porsche vehicles with PCM 4.0
Seat vehicles with Media System Plus or navigation system PLUS
Skoda vehicles with Columbus, Amundsen or Bolero
VW vehicles with Discovery Pro, Discover Media or Composition Media
Video-inserter for one rear-view camera, one front camera
and two additional video sources
Product features
Video-inserter for factory-infotainment systems
CVBS Input for one rear-view camera
1 CVBS Input for front camera
2 CVBS Video-inputs for after-market Video sources (e.g. DVD-Player, DVB-T Tuner)
Automatic switching to rear-view camera input on engagement of the reverse gear
Automatic front camera switching after reverse gear for 10/15/20 seconds
Activatable parking guide lines for rear-view camera (not available for all vehicles)
Video-in-motion (ONLY for connected video-sources)
Video-inputs NTSC and PAL compatible
Version 16.03.2022
HW:CAM(V100)/(V33)
CI-RL4-MIB
Advertisement
Table of Contents
Related Manuals for r.LiNK CI-RL4-MIB
Summary of Contents for r.LiNK CI-RL4-MIB

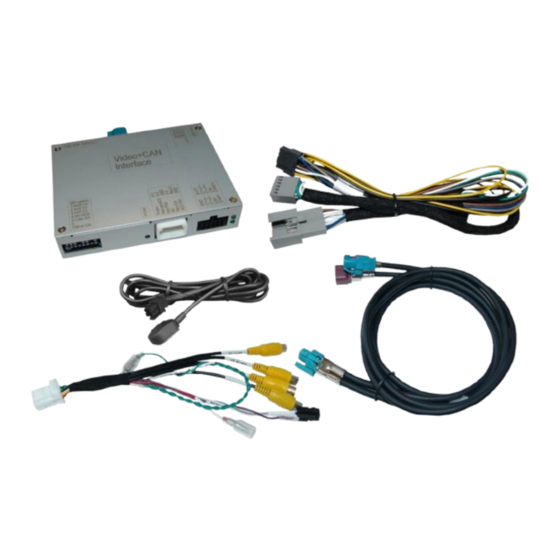

- Page 1 Video inserter CI-RL4-MIB Compatible with VAG infotainment systems from MIB/MIB2 construction kits - High und Standard executions Compatible with Audi vehicles with MMI (on MIB base) Bentley vehicles with MIB with 8inch monitor Lamborghini vehicles with MIB with monitor in instrument Porsche vehicles with PCM 4.0...
-
Page 2: Table Of Contents
2.6.3. After-market front camera 2.7. Connection - video-interface and external keypad 2.8. Picture settings and guide lines 3. Interface operation 3.1. By factory infotainment button 3.2. By keypad 4. Specifications 5. FAQ – Trouble Shooting-Interface functions Version 16.03.2022 HW:CAM(V100)/(V33) CI-RL4-MIB... -
Page 3: Prior To Installation
Due to changes in the production of the vehicle manufacturer there’s always a possibility of incompatibility. 1.1. Delivery contents Take down the serial number of the interface and store this manual for support purposes: ____________________ Version 16.03.2022 HW:CAM(V100)/(V33) CI-RL4-MIB... -
Page 4: Checking The Compatibility Of Vehicle And Accessories
5.8, 6.5 or 8inch monitor Polo6 (AW1) since MY 2018 Not compatible with 9.2inch monitor Transporter T6.1 (6H) since MY 2020 T-Cross (C1) since 04/2019, T-Roc (A11) since MY 2018 Tiguan2 (AD1) since MY 2016, Touran (5T) since MY 2016 Version 16.03.2022 HW:CAM(V100)/(V33) CI-RL4-MIB... - Page 5 The video-interface converts the connected after-market sources video signals into a LVDS signal which is inserted in the factory monitor using separate trigger options. Further it reads the vehicle’s digital signals out of the vehicle’s CAN-bus and converts them for the video interface. Version 16.03.2022 HW:CAM(V100)/(V33) CI-RL4-MIB...
-
Page 6: Settings Of The 8 Dip Switches (Black)
*The front camera will automatically be switched for 10, 15 or 20 seconds (adjustable) after disengaging the reverse gear, or by external keypad. After each Dip-switch-change a power-reset of the Video Interface has to be performed! Version 16.03.2022 HW:CAM(V100)/(V33) CI-RL4-MIB... -
Page 7: Activation - Front Camera „V3 Front" (Dip 1)
(some may give no picture). It is possible to first hot plug through the dip combinations. If there is no change of picture visible after trying all 6 options, retry and disconnect the 10pin plug of the Quadlock connector between every change of the dip setting. Version 16.03.2022 HW:CAM(V100)/(V33) CI-RL4-MIB... -
Page 8: Monitor Selection (Dip 7-8)
7inch Audi A3 (8V) 5.8inch 8.3inch Audi A4 (8W), A5 (8T) 7inch Audi A6/A7 (4G) 8inch 7inch Audi Q5 8.3inch Audi Q7 (4M) Touch 8.3inch Audi Q7 (4M) MMI 7inch Porsche VW Touran VW T6.1 8inch Version 16.03.2022 HW:CAM(V100)/(V33) CI-RL4-MIB... -
Page 9: Settings Of The 4 Dip Switches (Can Function - Red)
If the necessary stabilized power supply for the interface is not taken directly from the battery, the chosen connection has to be checked for being constantly stabile. The interface needs a permanent 12V source! Version 16.03.2022 HW:CAM(V100)/(V33) CI-RL4-MIB... -
Page 10: Place Of Installation
In Porsche PCM4.0 the head unit can be found directly behind the monitor and is connected to it. In VW Transporter (T6.1), the HU is behind the center console, located under the A/C control unit. HU in VW Transporter T6.1 Version 16.03.2022 HW:CAM(V100)/(V33) CI-RL4-MIB... -
Page 11: Connection Schema
2.2. Connection schema Version 16.03.2022 HW:CAM(V100)/(V33) CI-RL4-MIB... -
Page 12: Connection - Factory Head Unit
12pin connector of the PNP harness. Clip in the female 12pin connector of the PNP harness in the previously become free position of the female Quadlock connector before finishing the Quadlock reconnection at the rear of the head-unit. Version 16.03.2022 HW:CAM(V100)/(V33) CI-RL4-MIB... -
Page 13: Connection - Power-And Can
Connect the single, yellow wire of the 10pin power/CAN cable to +12V permanent and stabile power supply. Connect the single, black wire of the 10pin power/CAN cable to the vehicle’s negative ground. Version 16.03.2022 HW:CAM(V100)/(V33) CI-RL4-MIB... -
Page 14: Analog Power Supply For The Video Interface
ACC-out (max 3A) and the purple coloured wire Manual ACC of the 12pin interface cable both have to be connected additionately to S-contact terminal 86s +12V (e.g. glove compartment illumination). Version 16.03.2022 HW:CAM(V100)/(V33) CI-RL4-MIB... -
Page 15: Connection - Video-Sources
„Reverse V4“ of the 12pin interface cable (refer also to chapter “Video signal connection of the rear-view camera”) Connect the video RCA of the Rear-view camera to the female RCA connector „Front V3“ the 12pin interface cable. Version 16.03.2022 HW:CAM(V100)/(V33) CI-RL4-MIB... -
Page 16: Audio Insertion
„Reverse V4“ while the reverse gear is engaged. Additionally, the +12V (max. 3A) power supply for the rear-view camera can be taken from the green wire of the 12pin interface cable. Version 16.03.2022 HW:CAM(V100)/(V33) CI-RL4-MIB... - Page 17 (86) of the relay. Connect the output connector (87) of the relay to the rear-view camera’s power- cable, like you did it to the green “Reverse-IN” cable before. Connect stabile and permanent +12V to the relay’s input connector (30). Version 16.03.2022 HW:CAM(V100)/(V33) CI-RL4-MIB...
-
Page 18: After-Market Front Camera
The power supply output gives +12V then, as well (if Dip 1 is set to ON and the front camera input is selected). Attention: A longer press of the external keypad push button will switch the interface to the next source! Version 16.03.2022 HW:CAM(V100)/(V33) CI-RL4-MIB... -
Page 19: Connection - Video-Interface And External Keypad
Connect the female 4pin connector of the keypad to the male 4pin connector of the 12pin interface cable. Note: Even if switching through several video sources by the keypad mightn’t be required, the invisible connection and availability is strongly recommended. Version 16.03.2022 HW:CAM(V100)/(V33) CI-RL4-MIB... -
Page 20: Picture Settings And Guide Lines
Note: If there is no communication between interface and the vehicle`s CAN-bus (several vehicles aren’t compatible), the reverse gear guide-lines can`t be shown during the vehicle’s operation, even if they once appear after having switched the system to powerless! Version 16.03.2022 HW:CAM(V100)/(V33) CI-RL4-MIB... -
Page 21: Interface Operation
Short press of keypad (only if DIP 1 is set to ON) By short pressing the external keypad, the video interfaces witches from the factory video to the front camera input and back to factory video. Version 16.03.2022 HW:CAM(V100)/(V33) CI-RL4-MIB... -
Page 22: Specifications
BATT/ACC range 7V - 25V Stand-by power drain Power 210mA @12V Video input 0.7V - 1V Video input formats NTSC/PAL Temperature range -40°C to +85°C Dimensions video-box 117 x 25 x 104mm (W x H x D) Version 16.03.2022 HW:CAM(V100)/(V33) CI-RL4-MIB... -
Page 23: Faq - Trouble Shooting-Interface Functions
Camera input picture fluorescent light which shines Test camera under natural light outside the garage. flickers. directly into the camera. Camera input picture is Protection sticker not Remove protection sticker from lens. bluish. removed from camera lens. Version 16.03.2022 HW:CAM(V100)/(V33) CI-RL4-MIB... - Page 24 Cut the grey wire of 6pin to 8pin and isolate both Interface switches compatibility to vehicle is ends. If problem still occurs, additionally cut the white video-sources by itself. limited. wire of 6pin to 8pin cable and isolate both ends. 10R-05 0068 Made in China Version 16.03.2022 HW:CAM(V100)/(V33) CI-RL4-MIB...
