Connecting the video sources
It is possible to connect two after-market video-sources and an after-market rear-view
camera to the video-interface.
Before the final installation, we recommend a test-run of the interface. Due to changes in
the production of the vehicle manufacturer, there's always the possibility of
incompatibility.

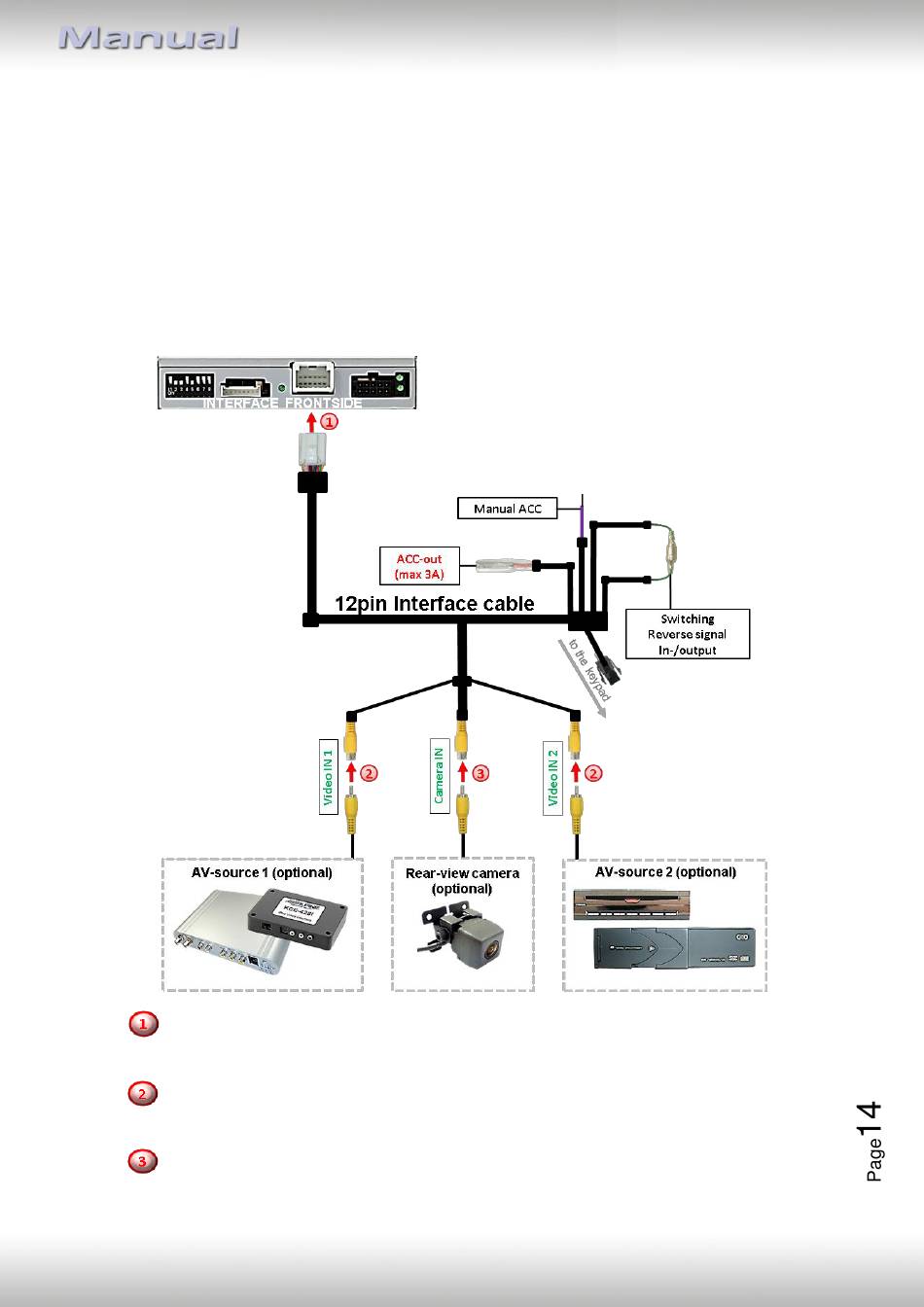

2.6.1. Video-sources to Video IN1 and Video IN2
Connect the female 12pin connector of the 12pin interface cable to the male 12pin
connector of the video-interface.
Connect the video RCA of the AV source 1 and 2 to the female RCA connector
IN1"
and
"Video IN 2"
Connect the video RCA of the Rear-view camera to the female RCA connector
"Camera IN"
of the 20pin interface cable (refer also to chapter "Video signal
connection of the rear-view camera")
Version 16.03.2020
of the 12pin interface cable.
HW: CAM(V97)/(V30)
