- Page 1 USER MANUAL MODEL: PT-871/2-KIT, PT-871/2xr-KIT, WP-871xr, WP-872xr, PT-871xr, PT-872xr HDMI Line Transmitters and Receivers over Long-Reach DGKat P/N: 2900-300716 Rev 2 www.kramerAV.com...
-
Page 2: Table Of Contents
Contents Introduction Getting Started Overview Typical Applications Defining PT-871/2-KIT, PT-871/2xr-KIT, WP-871xr, WP-872xr, PT-871xr, PT-872xr Installing Device Connecting Device Connecting PT-871/2-KIT, PT-871/2xr-KIT, PT-871xr, PT-872xr Connecting WP-871xr, and WP-872xr/PT-872xr Connecting PT-871xr and WP-872xr Setting Compression Level Technical Specifications PT-871/2-KIT PT-871/2xr-KIT, PT-871xr, and PT-872xr WP-871xr, WP-872xr PT-871/2-KIT, PT-871/2xr-KIT, WP-871xr, WP-872xr, PT-871xr, PT-872xr –... -
Page 3: Introduction
Safety Instructions Caution: There are no operator serviceable parts inside the unit Warning: Use only the Kramer Electronics power supply that is provided with the unit Warning: Disconnect the power and unplug the unit from the wall before installing PT-871/2-KIT, PT-871/2xr-KIT, WP-871xr, WP-872xr, PT-871xr, PT-872xr – Introduction... -
Page 4: Overview
WEEE sent for disposal to landfill or incineration by requiring it to be collected and recycled. To comply with the WEEE Directive, Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. -
Page 5: Typical Applications
Kramer Electronics Ltd. Typical Applications PT-871/2-KIT, PT-871/2xr-KIT, WP-871xr, WP-872xr, PT-871xr, PT-872xr are ideal for the following typical applications: • Long-distance AV signal extension for large room connectivity. • AV extension in meeting rooms, boardrooms, hotels and corporate facilities. PT-871/2-KIT, PT-871/2xr-KIT, WP-871xr, WP-872xr, PT-871xr, PT-872xr – Introduction... -
Page 6: Defining Pt-871/2-Kit, Pt-871/2Xr-Kit, Wp-871Xr, Wp-872Xr, Pt-871Xr, Pt-872Xr

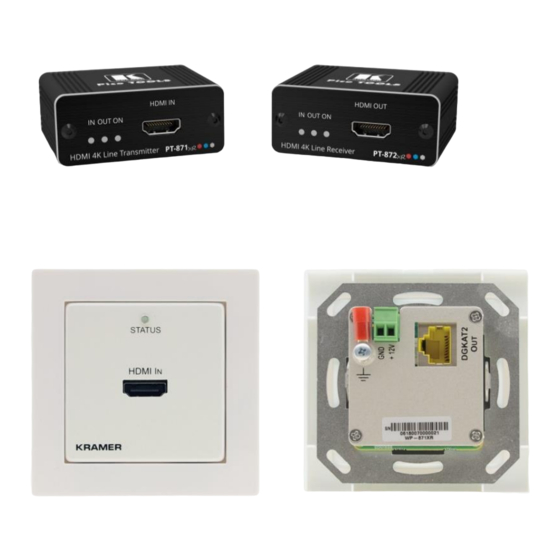

Kramer Electronics Ltd. Defining PT-871/2-KIT, PT- 871/2xr-KIT, WP-871xr, WP- 872xr, PT-871xr, PT-872xr PT-871/2-KIT includes PT-871 and PT-872. PT-871/2xr-KIT includes PT-871xr and PT- 872xr. PT-871 PT-872 Figure 1: PT-871 Line Transmitter Figure 2: PT-872 Line Receiver PT-871xr PT-872xr Figure 3: PT-871xr... - Page 7 Kramer Electronics Ltd. WP-871xr US-D Version EU/UK Version US-D/EU/UK Version Front Front Rear Figure 5: WP-871xr Line Transmitter Wall-plate WP-872xr US-D Version EU/UK Version US-D/EU/UK Version Front Front Rear Figure 6: WP-872xr Line Receiver Wall-plate Feature Function HDMI IN Connector (WP-871xr) Connect to an HDMI source.
- Page 8 Kramer Electronics Ltd. – Front Panel Before Assembly WP-871xr Line Transmitter Wall-plate – Front Panel Before Assembly Figure 7: WP-871xr Feature Function SETUP DIP-switches Do not change the default DIP-switch settings (located on the front panel, behind the frame) DIP-switch 1 Must be set to ON (right).
-
Page 9: Installing Device
Kramer Electronics Ltd. Installing Device This section provides instructions for installing PT-871/2-KIT, PT-871/2xr-KIT, WP-871xr, WP-872xr, PT-871xr, PT-872xr. Before installing the device, verify that the environment is within the recommended range: • Operation temperature – 0 to 40C (32 to 104F). - Page 10 Kramer Electronics Ltd. To mount the WP-871xr and WP-872xr wall plate : • Insert the device into the in-wall box (note that first you need to connect the DGKAT 2.0 cable and power) and connect the parts as shown in the illustrations below:...
-
Page 11: Connecting Device
PT-872xr, connect its power and then switch on the power to each device. We highly recommend using only Kramer UNIKAT cables with these products. If using 3 party shielded CAT-6A cables, both ends of the shield must be soldered to the connectors for the products to function properly. -
Page 12: Connecting Wp-871Xr, And Wp-872Xr/Pt-872Xr
Kramer Electronics Ltd. Connecting WP-871xr, and WP-872xr/PT-872xr For illustrative purposes, the figure below shows PT-872xr as the receiver, but the same connections apply when using WP-872xr as the receiver. Figure 10: Connecting to WP-871xr PT-872xr To connect WP-871xr and WP-872xr/PT-872xr as illustrated in Figure 1. -
Page 13: Connecting Pt-871Xr And Wp-872Xr
Kramer Electronics Ltd. Connecting PT-871xr and WP-872xr Figure 11: Connecting to PT-871xr WP-872xr To connect PT-871xr and WP-872xr as illustrated in Figure 1. Connect the HDMI video acceptor to the HDMI OUT Connector on WP-872xr. 2. Connect the DGKat2 IN RJ-45 Connector... -
Page 14: Setting Compression Level
Kramer Electronics Ltd. Setting Compression Level PT-871xr, PT-872xr include a Compression Options DIP-switch (DIP-switch 1) that enables selecting the compression level. By default, the Compression Options DIP-switch (DIP-switch 1) is set to OFF (up = standard compression). Always set the DIP-switches identically for a connected transmitter and receiver. -
Page 15: Technical Specifications
Max. Resolution 3840x2160@60Hz (4:4:4) 24bpp Compliance HDR10 as specified in HDMI 2.0, HDCP 2.2 Extension Line We recommend that you use Kramer shielded cables to achieve optimum extension ranges. Max. Range 40m (130ft) at 4K60 (4:4:4 or 4:2:0) or full HD... -
Page 16: 871/2Xr-Kit, Pt-871Xr, And Pt-872Xr
4096x2160@60Hz (4:4:4) 24bpp at standard compression level Compliance HDR 10 as specified in HDMI 2.0, HDCP 2.2 Extension Line We recommend that you use Kramer shielded cables to achieve optimum extension ranges. Max Range – 60m (200ft) at 4K@60Hz (4:4:4) -
Page 17: Wp-871Xr, Wp-872Xr
Max. Resolution 3840x2160@60Hz (4:4:4) 24bpp Compliance HDR 10 as specified in HDMI 2.0, HDCP 2.2 Extension Line We recommend that you use Kramer shielded cables to achieve optimum extension ranges. Max Range – 60m (200ft) at 4K@60Hz (4:4:4) 70m (230ft) at 4K@30Hz (4:4:4) or full HD... - Page 18 Electronics products, this product must be insured during shipment, with the insurance and shipping charges prepaid by you. If this product is returned uninsured, you assume all risks of loss or damage during shipment. Kramer Electronics will not be responsible for any costs related to the removal or re- installation of this product from or into any installation.
- Page 19 SAFETY WARNING Disconnect the unit from the power supply before opening and servicing For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback.
