- Page 1 K R A ME R E LE CT R O N IC S L T D . USER MANUAL MODELS: WP-580T HDMI Line Transmitter WP-580R HDMI Line Receiver P/N: 2900-300094 Rev 1...
-
Page 3: Table Of Contents
Grounding the Transmitter/Receiver Technical Specifications Figures F igure 1: WP-580T HDMI Line Transmitter for the US F igure 2: WP-580T HDMI Line Transmitter for Europe (80mm/86mm) F igure 3: WP-580R HDMI Line Receiver for the US F igure 4: WP-580R HDMI Line Receiver for Europe (80mm/86mm) -
Page 4: Introduction
Introduction Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront video, audio, presentation, and broadcasting professionals on a daily basis. In recent years, we have redesigned and upgraded most of our... -
Page 5: Getting Started
• Avoid interference from neighboring electrical appliances that may adversely influence signal quality Position your Kramer WP-580T transmitter and WP-580R receiver away • from moisture, excessive sunlight and dust This equipment is to be used only inside a building. It may only be connected to other equipment that is installed inside a building. -
Page 6: Recycling Kramer Products
Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/. -
Page 7: Overview
HDBaseT device. For example, the transmitter and receiver system can be composed of the WP-580T that connects to the Kramer TP-580R to form a transmitter receiver pair. The WP-580T transmitter and WP-580R receiver feature: •... -
Page 8: About Hdbaset™ Technology
The products described in this user manual are HDBaseT certified. Using Twisted Pair Cable Kramer engineers have developed special twisted pair cables to best match our digital twisted pair products; the Kramer: BC-DGKat524 (CAT 5 24 AWG), the Kramer: BC-DGKat623 (CAT 6 23 AWG cable), and the Kramer: BC-DGKat7a23 (CAT 7a 23 AWG cable). -
Page 9: Defining The Wp-580T Hdmi Line Transmitter

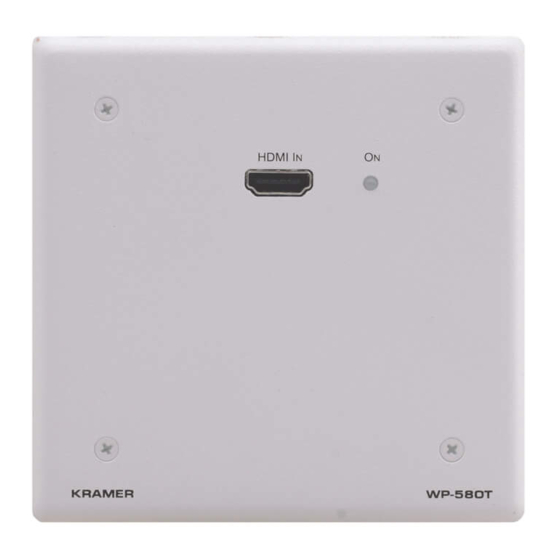

Defining the WP-580T HDMI Line Transmitter Figure 1: WP-580T HDMI Line Transmitter for the US Figure 2: WP-580T HDMI Line Transmitter for Europe (80mm/86mm) WP-580T/WP-580R - Defining the WP-580T HDMI Line Transmitter... - Page 10 Connects to the HDBT IN/LINE IN RJ-45 connector on RJ-45 Connector the WP-580R 5V DC +5V DC connector for powering the unit PROG 4-pin Connector For internal use Grounding Screw Connect to grounding wire, see Section 6.2 WP-580T/WP-580R - Defining the WP-580T HDMI Line Transmitter...
-
Page 11: Defining The Wp-580R Hdmi Line Receiver
Defining the WP-580R HDMI Line Receiver Figure 3: WP-580R HDMI Line Receiver for the US Figure 4: WP-580R HDMI Line Receiver for Europe (80mm/86mm) WP-580T/WP-580R - Defining the WP-580R HDMI Line Receiver... - Page 12 4 +5V DC +5V DC connector for powering the unit 5 PROGRAM 4-pin For internal use Connector 6 Grounding Screw Connect to grounding wire, see Section 6.2 (for European (optional) versions only) WP-580T/WP-580R - Defining the WP-580R HDMI Line Receiver...
-
Page 13: Connecting The Wp-580T Transmitter To The Wp-580R Receiver
After connecting your transmitter and receiver, connect their power and then switch on the power to each device. You can use the WP-580T HDMI Line Transmitter and the WP-580R HDMI Line Receiver to configure an HDMI transmitter/receiver system, as illustrated in the example in... -
Page 14: F Igure 5: Connecting The Wp-580T/Wp-580R Transmitter/Receiver
Figure 5: Connecting the WP-580T/WP-580R Transmitter/Receiver WP-580T/WP-580R - Connecting the WP-580T Transmitter to the WP-580R Receiver... -
Page 15: Wiring The Tp Line In / Line Out Rj-45 Connectors
This section defines the TP pinout, using a straight pin-to-pin cable with RJ-45 connectors. Figure 6: TP PINOUT EIA /TIA 568B Wire Color Orange / White Orange Green / White Blue Blue / White Green Brown / White Brown WP-580T/WP-580R - Connecting the WP-580T Transmitter to the WP-580R Receiver... -
Page 16: Grounding The Transmitter/Receiver
3. Insert the M3x6 screw (with the two toothed lock washers and ring tongue terminal) into the grounding screw hole and tighten the screw. WP-580T/WP-580R - Connecting the WP-580T Transmitter to the WP-580R Receiver... -
Page 17: Technical Specifications
2 gang for Europe: 15.2cm x 1.9cm x 8.6cm (5.98" x 0.75" x 3.39", W, D, H) WEIGHT: 0.6kg (1.4lbs) ACCESSORIES: Power supply Specifications are subject to change without notice Go to our Web site at http://www.kramerelectronics.com to access the list of resolutions WP-580T/WP-580R - Technical Specifications... - Page 19 For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback. Web site: www.kramerelectronics.com E-mail: info@kramerel.com SAFETY WARNING...
