K R A ME R E LE CT R O N IC S L TD . USER MANUAL MODELS: WP-580T HDMI Line Transmitter WP-580R HDMI Line Receiver P/N: 2900-300094 Rev 3... -
Page 3: Table Of Contents
Grounding the Transmitter/Receiver Technical Specifications Figures Figure 1: WP-580T HDMI Line Transmitter for the US and Decora® Figure 2: WP-580T HDMI Line Transmitter for Europe (80mm/86mm) Figure 3: WP-580R HDMI Line Receiver for the US and Decora® Figure 4: WP-580R HDMI Line Receiver for Europe (80mm/86mm) -
Page 4: Introduction
Introduction Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront video, audio, presentation, and broadcasting professionals on a daily basis. In recent years, we have redesigned and upgraded most of our... -
Page 5: Getting Started
Achieving the Best Performance To achieve the best performance: Use only good quality connection cables (we recommend Kramer high- performance, high-resolution cables) to avoid interference, deterioration in signal quality due to poor matching, and elevated noise levels (often associated with low quality cables) ... -
Page 6: Recycling Kramer Products
Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/. -
Page 7: Overview
HDBaseT device. For example, the transmitter and receiver system can be composed of the WP-580T that connects to the Kramer TP-580R to form a transmitter receiver pair. The WP-580T transmitter and WP-580R receiver feature: ... -
Page 8: About Hdbaset™ Technology
IR, as well as various control signals. The products described in this user manual are HDBaseT certified. Using Twisted Pair Cable Kramer engineers have developed special twisted pair cables to best match our BC−HDKat6a digital twisted pair products; the Kramer (CAT 6 23 AWG cable) significantly outperforms regular CAT 5 / CAT 6 cables. -
Page 9: Defining The Wp-580T Hdmi Line Transmitter

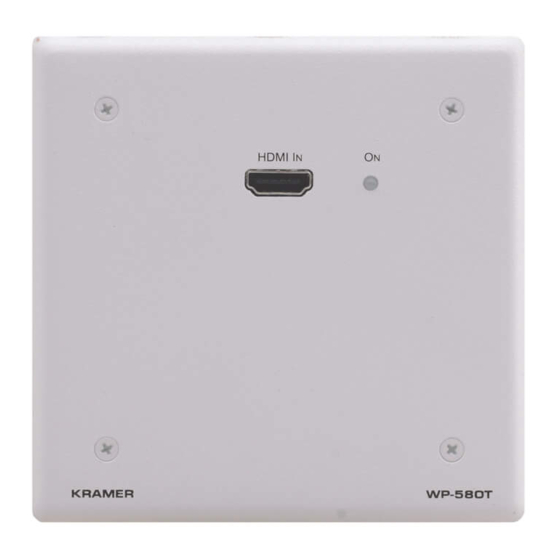

Defining the WP-580T HDMI Line Transmitter Figure 1: WP-580T HDMI Line Transmitter for the US and Decora® Note that the Decora® type wall plate is supplied with a Midway Size 2 gang frame. You can also fit it into a different sized Decora®... -
Page 10: Figure 2: Wp-580T Hdmi Line Transmitter For Europe (80Mm/86Mm)
Figure 2: WP-580T HDMI Line Transmitter for Europe (80mm/86mm) Feature Function HDMI IN Connector Connects to the HDMI source ON LED Lights red when only the power is connected; orange when the power and the input only are connected; and... -
Page 11: Defining The Wp-580R Hdmi Line Receiver
Note that the Decora® type wall plate is supplied with a Midway Size 2 gang frame. You can also fit it into a different sized Decora® frame (not supplied) such as Standard Size or Oversized. WP-580T/WP-580R - Defining the WP-580R HDMI Line Receiver... -
Page 12: Figure 4: Wp-580R Hdmi Line Receiver For Europe (80Mm/86Mm)
4 +5V DC +5V DC connector for powering the unit 5 PROGRAM 4-pin For internal use Connector 6 Grounding Screw Connect to grounding wire, see Section 6.2 (for European (optional) versions only) WP-580T/WP-580R - Defining the WP-580R HDMI Line Receiver... -
Page 13: Connecting The Wp-580T Transmitter To The Wp-580R Receiver
After connecting your transmitter and receiver, connect their power and then switch on the power to each device. You can use the WP-580T HDMI Line Transmitter and the WP-580R HDMI Line Receiver to configure an HDMI transmitter/receiver system, as illustrated in the example in... -
Page 14: Figure 5: Connecting The Wp-580T/Wp-580R Transmitter/Receiver
Figure 5: Connecting the WP-580T/WP-580R Transmitter/Receiver WP-580T/WP-580R - Connecting the WP-580T Transmitter to the WP-580R Receiver... -
Page 15: Wiring The Tp Line In / Line Out Rj-45 Connectors
This section defines the TP pinout, using a straight pin-to-pin cable with RJ-45 connectors. Figure 6: TP PINOUT EIA /TIA 568B Wire Color Orange / White Orange Green / White Blue Blue / White Green Brown / White Brown WP-580T/WP-580R - Connecting the WP-580T Transmitter to the WP-580R Receiver... -
Page 16: Grounding The Transmitter/Receiver
3. Insert the M3x6 screw (with the two toothed lock washers and ring tongue terminal) into the grounding screw hole and tighten the screw. WP-580T/WP-580R - Connecting the WP-580T Transmitter to the WP-580R Receiver... -
Page 17: Technical Specifications
12.4cm (4.95” x 1” x 4.88”), W, D, H WEIGHT: 0.6kg (1.4lbs) INCLUDED ACCESSORIES: Power supply Kramer BC−HDKat6a cable OPTIONS: Specifications are subject to change without notice Go to our Web site at http://www.kramerelectronics.com to access the list of resolutions WP-580T/WP-580R - Technical Specifications... - Page 19 For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback. Web site: www.kramerelectronics.com E-mail: info@kramerel.com SAFETY WARNING...
