Kramer PT-871/2xr-KIT Quick Start Manual

PT-871/2xr-KIT Quick Start Guide
This guide helps you install and use your PT-871xr, PT-872xr for the first time.
Go to
firmware upgrades are available.
Scan for full manual
Step 1: Check what's in the box
PT-871xr, PT-872xr HDMI 4K Line Transmitter/Receiver
1 Power adapter and cord

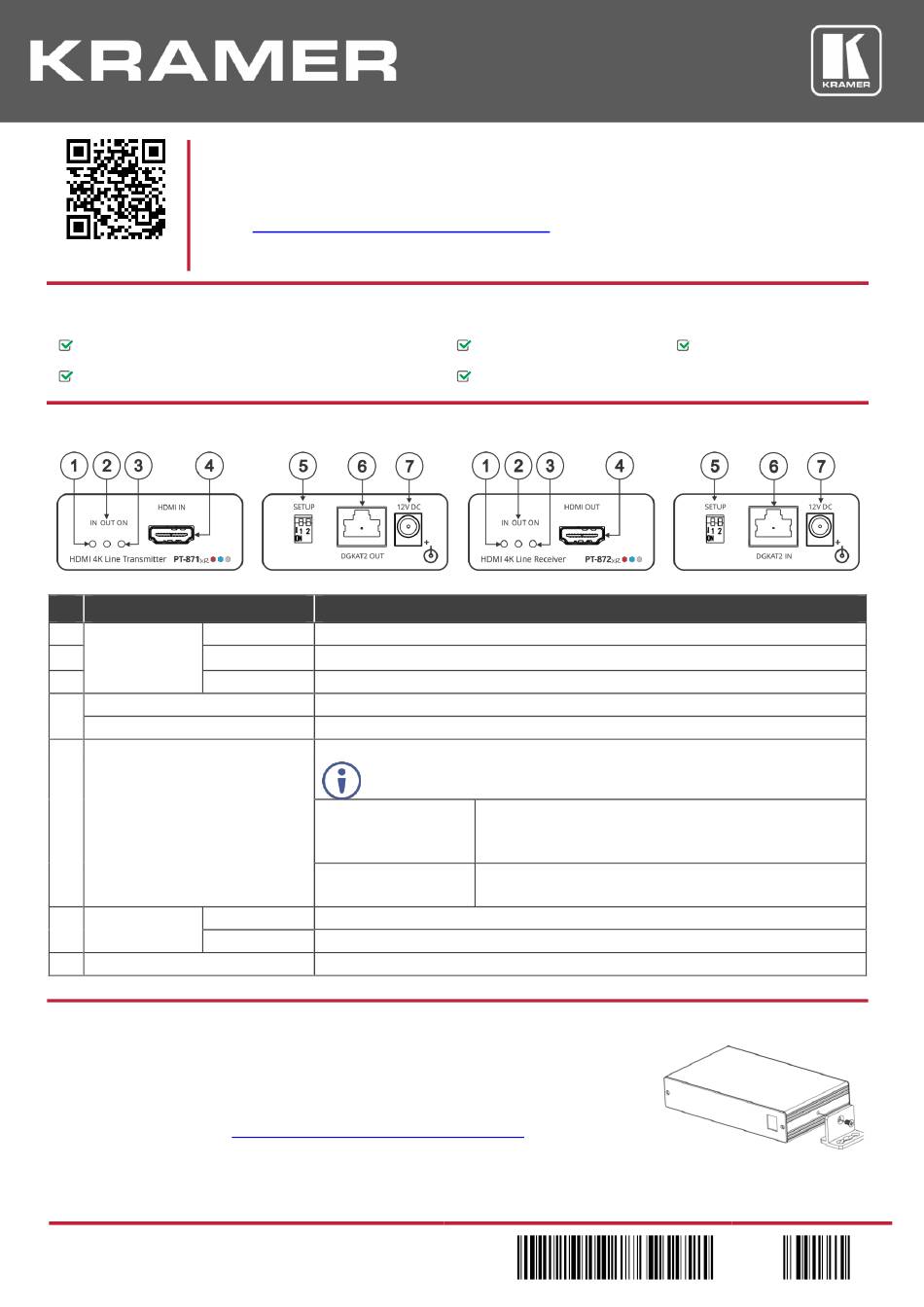

Step 2: Get to know your PT-871xr, PT-872xr
# Feature
1 IN
LED Indicators OUT
2
ON
3
4 HDMI IN Connector (PT-871xr)
HDMI OUT Connector (PT-872xr)
5 SETUP DIP-switches
6 DGKat-2.0 PT-871xr OUT
RJ-45 Connector
PT-872xr IN
7 12V DC Connector
Step 3: Install the PT-871xr, PT-872xr
Install PT-871xr, PT-872xr using one of the following methods:
•
Attach the rubber feet and place the unit on a flat surface.
•
Fasten a bracket (included) on each side of the unit and attach it to a flat surface. For
more information go to www.kramerav.com/downloads/PT-871/2xr-KIT.
•
Mount the unit in a rack using an optional RK-4PT rack adapter.
PT-871xr, PT-872xr Quick Start (P/N: 2900-300965QS REV 1)
www.kramerav.com/downloads/PT-871/2xr-KIT
Function
Lights when an active source is connected to HDMI IN on the PT-871xr.
Lights when an active acceptor is connected to HDMI OUT on the PT-872xr.
Lights when power is connected to the device.
Connect to an HDMI source.
Connect to an HDMI acceptor.
Set the operation DIP-switches. Both DIP-switches are set to OFF (up) by default.
Always set the DIP-switches identically on both devices.
DIP-switch 1:
Compression Options
DIP-switch 2:
Compression Setup
Connect to the DGKat-2.0 IN connector on the PT-872xr using twisted pair cable.
Connect to the DGKat-2.0 OUT connector on the PT-871xr using twisted pair cable.
Connect the power adapter to one of the devices.
to download the latest user manual and check if
4 Rubber feet (per device)
1 Quick start guide
OFF (up) – Standard compression level.
ON (down) – High compression level for additional range
extension.
OFF (up) – Enable compression (mandatory).
ON (down) – For future use.
P/N: 2 9 0 0 - 3 0 0 9 6 5 QS
1 Bracket set (per device)
Rev: 1
