Page 1: User Manual
Kramer Electronics, Ltd. USER MANUAL Models: WPN-11, XGA/Component/CV/YC Transmitter WPN-12, XGA/Component/CV/YC Receiver... -
Page 2: Table Of Contents
Operating the WPN-11 and WPN-12 Technical Specifications Figures Figure 1: WPN-11 (Front Panel, Side Panel, and 3-D Illustration) Figure 2: WPN-12 (Front Panel, Side Panel, and 3-D Illustration) Figure 3: BC-5X5S Cable PINOUT Figure 4: Example of Conference Room WPN-11 / WPN-12 Installation Tables... - Page 3 1 For example: model number AD2512C, part number 2535-000251 – No operator-serviceable parts inside unit. – Use only the Kramer Electronics input power – Disconnect power and unplug unit from wall 2900-9999992...
-
Page 4: Introduction
You can connect these sources: YUV, RGB, CV, Y/C, XGA to the WPN-11 wall plate, and connect the YUV, RGB, CV, Y/C, XGA outputs from the WPN-12 wall plate to the appropriate inputs on a projector. - Page 5 INPUT FROM LINE terminal block connectors on the WPN-12 using the optional BC-5X5S cable A standard 12 Volt DC feed that lets the WPN-12 derive its power via the power supply of the WPN-11. The system can be powered from either the...
-
Page 6: Your Component/Rgb/Yc/Cv/Xga Transmitter And Receiver
Your Component/RGB/YC/CV/XGA Transmitter and Receiver Your Component/RGB/YC/CV/XGA Transmitter and Receiver This section describes: Your WPN-11 (see section 4.1) Your WPN-12 (see section 4.2) Your BC-5X5S Cable (optional) PINOUT (see section 4.3) 4.1 Your WPN-11 Figure 1 and Table 1 define the WPN-11:... -
Page 7: Your Wpn-12

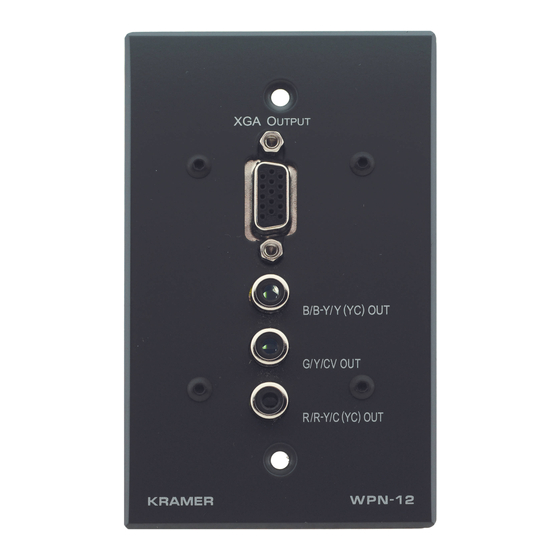

Your Component/RGB/YC/CV/XGA Transmitter and Receiver 4.2 Your WPN-12 Figure 2 and Table 2 define the WPN-12: Figure 2: WPN-12 (Front Panel, Side Panel, and 3-D Illustration) Feature Holes (2) XGA OUTPUT HD15 Connector B/B-Y/Y(YC) OUT RCA Connector G/Y/CV OUT RCA Connector... -
Page 8: 4.3 Your Bc-5X5S Cable Pinout
Your Component/RGB/YC/CV/XGA Transmitter and Receiver 4.3 Your BC-5X5S Cable PINOUT Figure 3 defines the optional BC-5X5S cable: Figure 3: BC-5X5S Cable PINOUT... -
Page 9: Using The Component/Rgb/Yc/Cv/Xga Transmitter And Receiver
Using the Component/RGB/YC/CV/XGA Transmitter and Receiver Using the Component/RGB/YC/CV/XGA Transmitter and Receiver You can use your WPN-11 and WPN-12, for example, in a conference room, as the example in Figure 4 illustrates. For details of how to: Install your WPN-11 and WPN-12, see section 5.1 Operate your WPN-11 and WPN-12, see section 5.2... -
Page 10: Figure 4: Example Of Conference Room Wpn-11 / Wpn-12 Installation
RGB input on the projector Connect the B/B-Y/Y(YC) and R/R-Y/C(YC) OUT RCA connectors to the s-Video input on the projector Connect the G/Y/CV OUT RCA connector to the composite video input on the projector Figure 4: Example of Conference Room WPN-11 / WPN-12 Installation... -
Page 11: Technical Specifications
WPN-12: INPUT FROM LINE on terminal block connectors WPN-11: OUTPUT TO LINE on terminal block connectors OUTPUTS: WPN-12: 1 XGA on an HD15F connector; 1 composite video 1 Vpp/75 , 1 s-Video, 1 Vpp/75 (Y), 0.3Vpp/75 (C), YUV / RGB (on RCA connectors) MAX. OUTPUT LEVEL: 2.6Vpp... - Page 12 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
- Page 13 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com, where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
