Kramer PT-871/2xr-KIT Quick Start Manual

Scan for full manual
Step 1: Check what's in the box

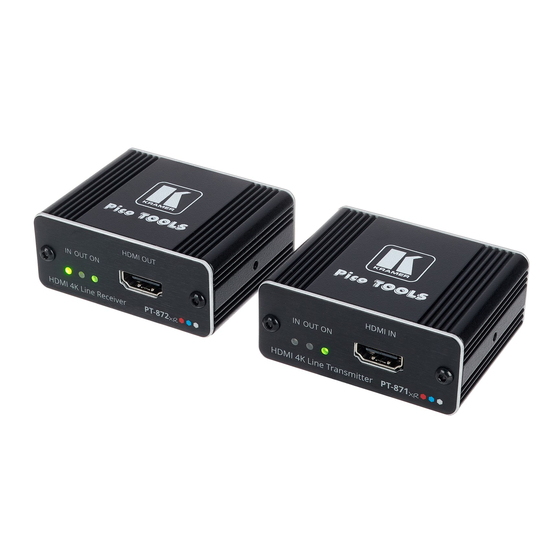

PT-871xr, PT-872xr HDMI 4K Line Transmitter/Receiver
1 Power adapter and cord
IMPORTANT NOTICE!
We highly recommend using only Kramer UNIKAT cables with these products. If using 3
shield must be soldered to the connectors for the products to function properly. Do not use any jumpers, unshielded wall plates or mid-
span cable connections. These extenders are not compatible with HDBaseT technologies. Prior to signal extension, ensure that the
extension line cable is lying straight and not coiled.
Step 2: Get to know your PT-871xr, PT-872xr
# Feature
1 IN
LED Indicators OUT
2
3 ON
4 PT-871xr
HDMI IN Connector (
HDMI OUT Connector ( PT-872xr
5 SETUP DIP-switches
6 DGKat-2.0 PT-871xr
RJ-45 Connector
PT-872xr
7 12V DC Connector
Step 3: Install the PT-871xr, PT-872xr
Install PT-871xr, PT-872xr using one of the following methods:
•
Attach the rubber feet and place the unit on a flat surface.
•
Fasten a bracket (included) on each side of the unit and attach it to a flat surface
(see www.kramerav.com/downloads/PT-871xr).
•
Mount the unit in a rack using the recommended rack adapter
(see www.kramerav.com/product/PT-871xr).
PT-871xr, PT-872xr Quick Start
PT-871/2xr-KIT Quick Start Guide
This guide helps you install and use your
Go to www.kramerav.com/downloads/PT-871xr
upgrades are available.
Function
Lights when an active source is connected to HDMI IN on the
Lights when an active acceptor is connected to HDMI OUT on the
Lights when power is connected to the device.
Connect to an HDMI source.
)
) Connect to an HDMI acceptor.
Set the operation DIP-switches. Both DIP-switches are set to OFF (up) by default.
Always set the DIP-switches identically on both devices.
DIP-switch 1:
Compression Options
DIP-switch 2:
Compression Setup
OUT Connect to the DGKat-2.0 IN connector on the
IN Connect to the DGKat-2.0 OUT connector on the
Connect the power adapter to one of the devices.
PT-871xr, PT-872xr for the first time.
to download the latest user manual and check if firmware
4 Rubber feet (per device)
1 Quick start guide
rd
party shielded CAT-6A cables, both ends of the
OFF (up) – Standard compression level.
ON (down) – High compression level for additional range extension.
OFF (up) – Enable compression (mandatory).
ON (down) – For future use.
PT-872xr
PT-871xr
• Ensure that the environment (e.g., maximum ambient temperature &
air flow) is compatible for the device.
• Avoid uneven mechanical loading.
• Appropriate consideration of equipment nameplate ratings should be
used for avoiding overloading of the circuits.
• Reliable earthing of rack-mounted equipment should be maintained.
P/N: 2 9 0 0 - 3 0 0 9 6 5 QS
1 Bracket set (per device)
PT-871xr
.
PT-872xr
.
using twisted pair cable.
using twisted pair cable.
Rev: 2
