Page 1: User Manual
K R A ME R E LE CT R O N IC S L TD . USER MANUAL MODELS: WP-580Txr HDMI Line Transmitter WP-580Rxr HDMI Line Receiver P/N: 2900-300087 Rev 4... -
Page 3: Table Of Contents
Grounding the Transmitter/Receiver Technical Specifications Figures Figure 1: WP-580Txr HDMI Line Transmitter for the US and Decora® Figure 2: WP-580Txr HDMI Line Transmitter for Europe (80mm/86mm) Figure 3: WP-580Rxr HDMI Line Receiver for the US and Decora® Figure 4: WP-580Rxr HDMI Line Receiver for Europe (80mm/86mm) -
Page 4: Introduction
1 Introduction Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront video, audio, presentation, and broadcasting professionals on a daily basis. In recent years, we have redesigned and upgraded most of our... -
Page 5: Getting Started
Achieving the Best Performance To achieve the best performance: Use only good quality connection cables (we recommend Kramer high- performance, high-resolution cables) to avoid interference, deterioration in signal quality due to poor matching, and elevated noise levels (often associated with low quality cables) ... -
Page 6: Recycling Kramer Products
Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/. -
Page 7: Overview
HDBaseT devices to form the transmission and reception system. For example, the transmitter and receiver system can be composed of WP-580Txr that connects to the Kramer WP-580Rxr to form a transmitter / receiver pair. -
Page 8: About Hdbaset™ Technology
IR, as well as various control signals. The products described in this user manual are HDBaseT certified. Using Twisted Pair Cable Kramer engineers have developed special twisted pair cables to best match our BC−HDKat6a digital twisted pair products; (CAT 6 23 AWG cable) significantly outperforms regular CAT 5 / CAT 6 cables. -
Page 9: Defining The Wp-580Txr Hdmi Line Transmitter

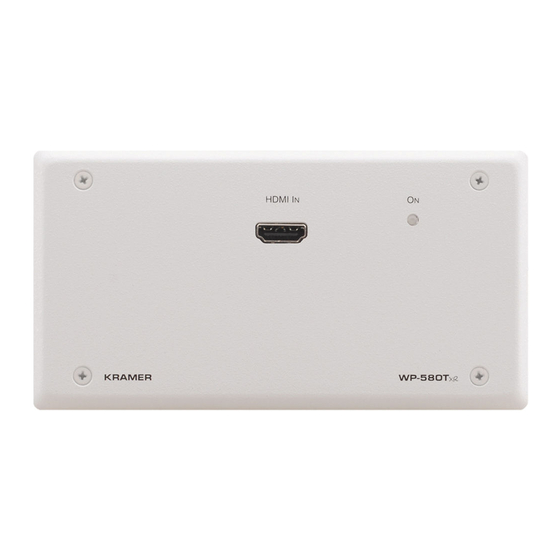

4 Defining the WP-580Txr HDMI Line Transmitter Figure 1: WP-580Txr HDMI Line Transmitter for the US and Decora® Note that the Decora® type wall plate is supplied with a Midway Size 2 gang frame. You can also fit it into a different sized Decora®... -
Page 10: Figure 2: Wp-580Txr Hdmi Line Transmitter For Europe (80Mm/86Mm)
Figure 2: WP-580Txr HDMI Line Transmitter for Europe (80mm/86mm) Feature Function HDMI IN Connector Connects to the HDMI source ON LED Lights red when receiving power only, orange when either input or output and power are attached, and green when both an active input and output are... -
Page 11: Defining The Wp-580Rxr Hdmi Line Receiver
Note that the Decora® type wall plate is supplied with a Midway Size 2 gang frame. You can also fit it into a different sized Decora® frame (not supplied) such as Standard Size or Oversized. WP-580Txr/WP-580Rxr - Defining the WP-580Rxr HDMI Line Receiver... -
Page 12: Figure 4: Wp-580Rxr Hdmi Line Receiver For Europe (80Mm/86Mm)
With the Jumper: a range of up to 150 meters (490 feet) at 1080p@60Hz@24bpp Without the Jumper: A range of up to 100 meters (330 feet) at 1080p@60Hz@36bpp 7 Grounding Screw Connect to grounding wire, see Section 6.2 WP-580Txr/WP-580Rxr - Defining the WP-580Rxr HDMI Line Receiver... -
Page 13: Connecting The Wp-580Txr And Wp-580Rxr
To connect the WP-580Rxr, connect the: 4. HDMI OUT connector to the HDMI acceptor (for example, a display). 5. HDBT IN RJ-45 connector over twisted pair to the WP-580Txr HDBT OUT connector. Alternatively, you can use any other certified HDBaseT transmitter device (for example, the Kramer TP-580Txr) 6. -
Page 14: Figure 5: Connecting The Wp-580Txr/Wp-580Rxr Transmitter/Receiver Pair
Figure 5: Connecting the WP-580Txr/WP-580Rxr Transmitter/Receiver Pair WP-580Txr/WP-580Rxr - Connecting the WP-580Txr and WP-580Rxr... -
Page 15: Wiring The Rj-45 Connectors
Note, that the cable Ground shielding must be connected / soldered to the connector shield. Figure 6: TP PINOUT EIA /TIA 568B Wire Color Orange / White Orange Green / White Blue Blue / White Green Brown / White Brown WP-580Txr/WP-580Rxr - Connecting the WP-580Txr and WP-580Rxr... -
Page 16: Grounding The Transmitter/Receiver
2. Insert the M3x6 screw through the toothed lock washers and the tongue terminal in the order shown above. 3. Insert the M3x6 screw (with the two toothed lock washers and ring tongue terminal) into the grounding screw hole and tighten the screw. WP-580Txr/WP-580Rxr - Connecting the WP-580Txr and WP-580Rxr... -
Page 17: Technical Specifications
12.4cm (4.95” x 1” x 4.88”), W, D, H WEIGHT: 0.6kg (1.4lbs) approx. INCLUDED ACCESSORIES: Power supply Kramer BC−HDKat6a cable OPTIONS: Specifications are subject to change without notice Go to our Web site at http://www.kramerelectronics.com to access the list of resolutions WP-580Txr/WP-580Rxr - Technical Specifications... - Page 19 For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback. Web site: www.kramerelectronics.com E-mail: info@kramerel.com SAFETY WARNING...
