Invertek Drives Optidrive ODE-2-12005-1H01 01 Series User Manual page 3

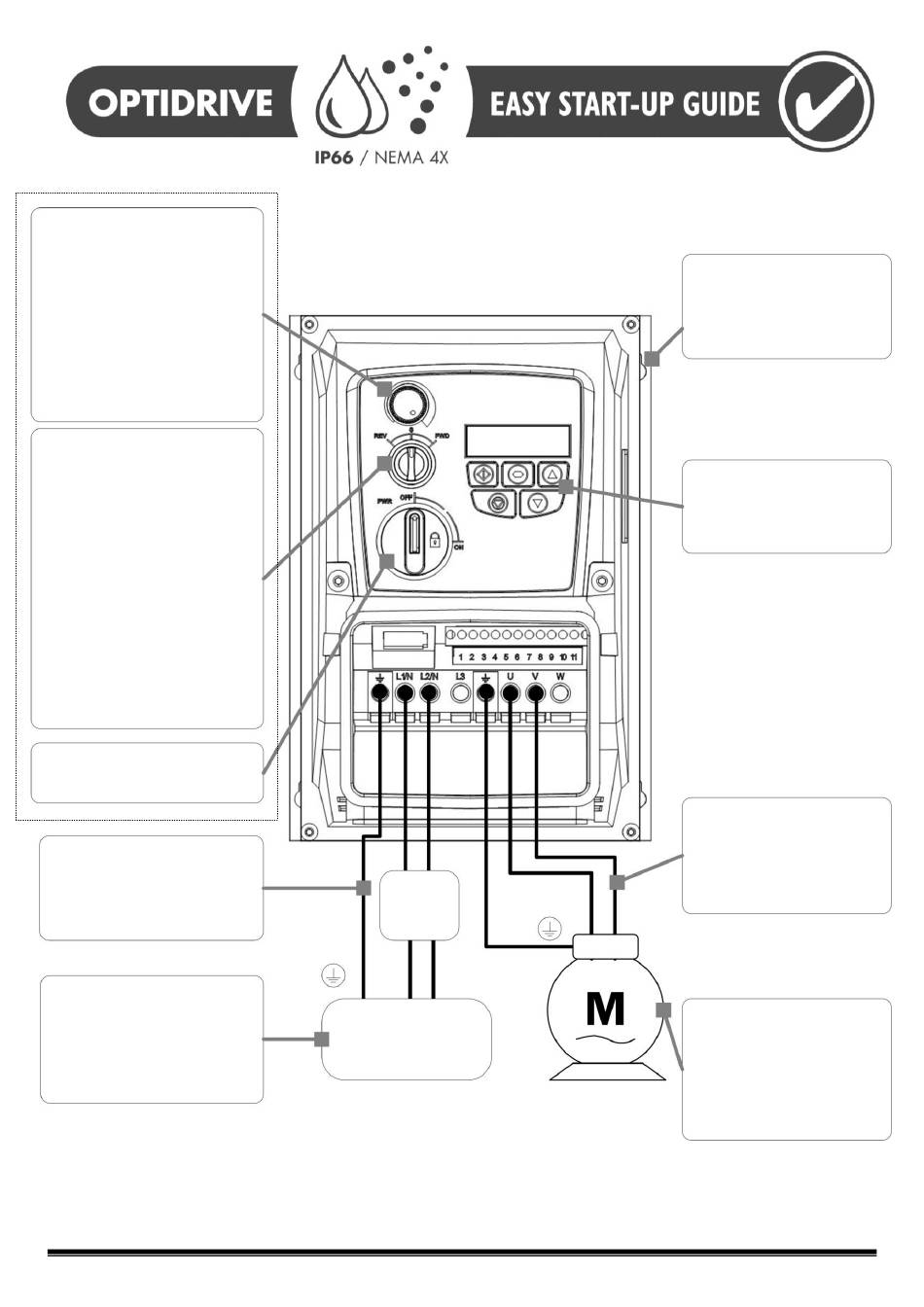

Switched Enclosure Variant only:
Local Speed Potentiometer:
The local speed potentiometer will
adjust the output frequency from
minimum speed P-02=0Hz to maximum
speed P-01=50Hz (60Hz for HP rated
drives)
Minimum speed P-02 = 0Hz
Maximum speed P-01= 50Hz
(60Hz for HP rated drives)
Forward Reverse (REV/0/FWD) selector
switch.
Based on default settings out of the box
FWD to run Forward
0 to STOP (disable the drive)
REV to run Forward
NOTE: No reverse function for single
phase motors.
To change behaviour of the drive when
the selector switch is set to the (REV)
position set parameter value in P-15.
Check page 15 for configuring the
FWD/REV switch for Local / Remote
(Hand off Auto) applications.
Local Power Isolator with Lock off
provision.
Fuses or MCB & cable sizes:
- check drive rating information on
page 27
Supply Voltage:
- 115, 230V
- Single phase
- check drive rating information on
page 27
3
Optidrive E2 Single Phase Output User Guide V3.10
Fuses or
MCB
Earth L1 L2
L N
AC Supply Voltage
(50/60Hz)
www.invertekdrives.com
Mechanical Mounting:
- Information can be found on
page 9
Keypad Operation
- Information can be found on
page 16
Motor cable sizes:
- check drive rating information
on page 27
Motor Nameplate Details:
Enter motor rated voltage (V) in P-07
Enter motor rated current (A) in P-08
Enter motor rated frequency (Hz) in
P-09
See page 17 for further information
on motor settings
