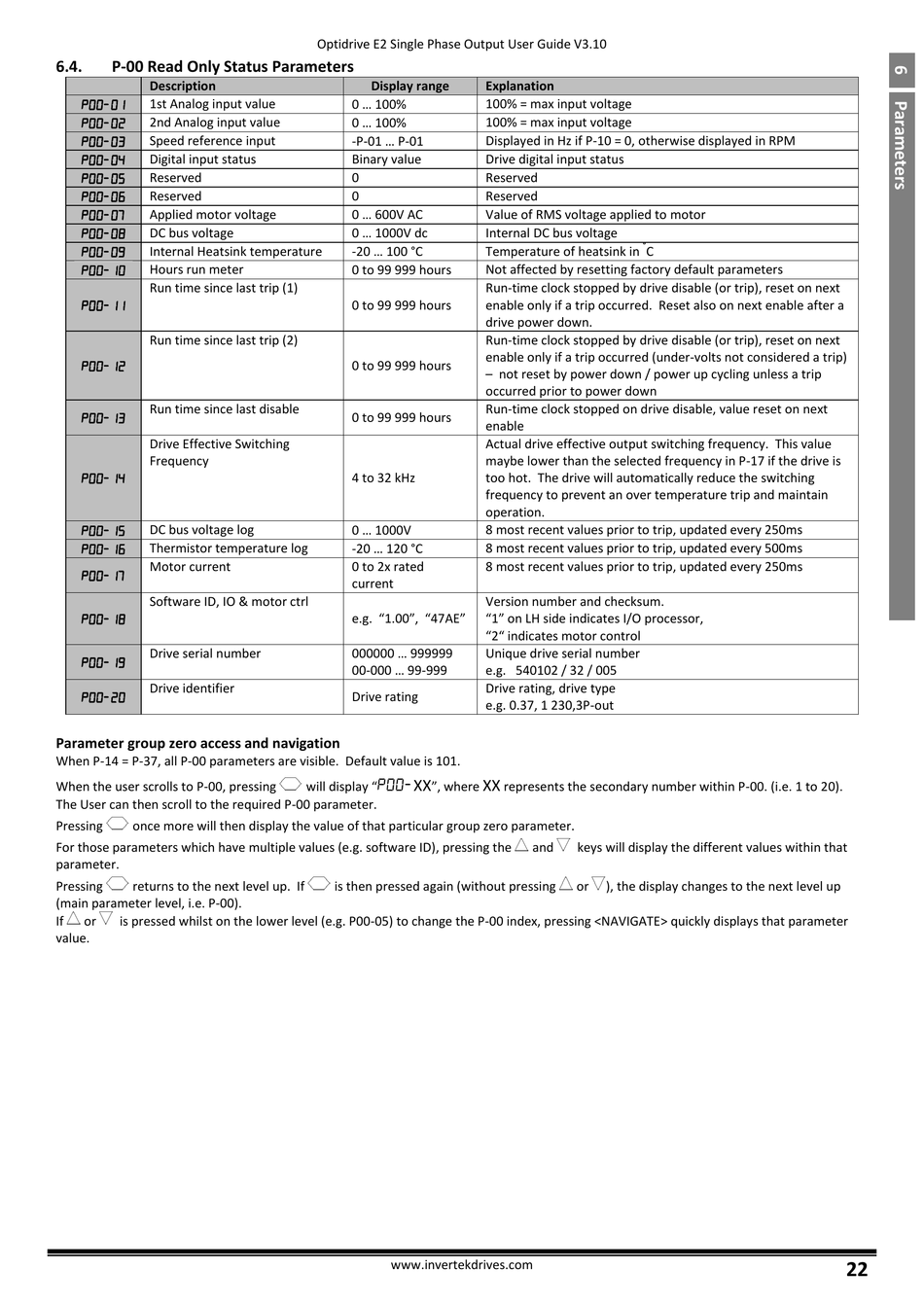

6.4. P-00 Read Only Status Parameters
Description

1st Analog input value

2nd Analog input value

Speed reference input

Digital input status

Reserved

Reserved

Applied motor voltage

DC bus voltage

Internal Heatsink temperature

Hours run meter
Run time since last trip (1)

Run time since last trip (2)

Run time since last disable

Drive Effective Switching
Frequency


DC bus voltage log

Thermistor temperature log
Motor current

Software ID, IO & motor ctrl

Drive serial number

Drive identifier

Parameter group zero access and navigation
When P-14 = P-37, all P-00 parameters are visible. Default value is 101.
When the user scrolls to P-00, pressing
The User can then scroll to the required P-00 parameter.
Pressing once more will then display the value of that particular group zero parameter.
For those parameters which have multiple values (e.g. software ID), pressing the
parameter.
Pressing returns to the next level up. If
(main parameter level, i.e. P-00).
If or is pressed whilst on the lower level (e.g. P00-05) to change the P-00 index, pressing <NAVIGATE> quickly displays that parameter
value.
Optidrive E2 Single Phase Output User Guide V3.10
Display range
0 ... 100%
0 ... 100%
-P-01 ... P-01
Binary value
0
0
0 ... 600V AC
0 ... 1000V dc
-20 ... 100 °C
0 to 99 999 hours
0 to 99 999 hours
0 to 99 999 hours
0 to 99 999 hours
4 to 32 kHz
0 ... 1000V
-20 ... 120 °C
0 to 2x rated
current
e.g. "1.00", "47AE"
000000 ... 999999
00-000 ... 99-999
Drive rating
XX
will display " ", where
is then pressed again (without pressing
www.invertekdrives.com
Explanation
100% = max input voltage
100% = max input voltage
Displayed in Hz if P-10 = 0, otherwise displayed in RPM
Drive digital input status
Reserved
Reserved
Value of RMS voltage applied to motor
Internal DC bus voltage
°
Temperature of heatsink in C
Not affected by resetting factory default parameters
Run-time clock stopped by drive disable (or trip), reset on next
enable only if a trip occurred. Reset also on next enable after a
drive power down.
Run-time clock stopped by drive disable (or trip), reset on next
enable only if a trip occurred (under-volts not considered a trip)
– not reset by power down / power up cycling unless a trip
occurred prior to power down
Run-time clock stopped on drive disable, value reset on next
enable
Actual drive effective output switching frequency. This value
maybe lower than the selected frequency in P-17 if the drive is
too hot. The drive will automatically reduce the switching
frequency to prevent an over temperature trip and maintain
operation.
8 most recent values prior to trip, updated every 250ms
8 most recent values prior to trip, updated every 500ms
8 most recent values prior to trip, updated every 250ms
Version number and checksum.
"1" on LH side indicates I/O processor,
"2" indicates motor control
Unique drive serial number
e.g. 540102 / 32 / 005
Drive rating, drive type
e.g. 0.37, 1 230,3P-out
XX
represents the secondary number within P-00. (i.e. 1 to 20).
and keys will display the different values within that
or ), the display changes to the next level up
22
