Invertek Drives Optidrive ODE-2-12005-1H01 01 Series User Manual page 2

AC Supply Voltage
(50/60Hz)
L1 L2
Earth
L N
Fuses or MCB

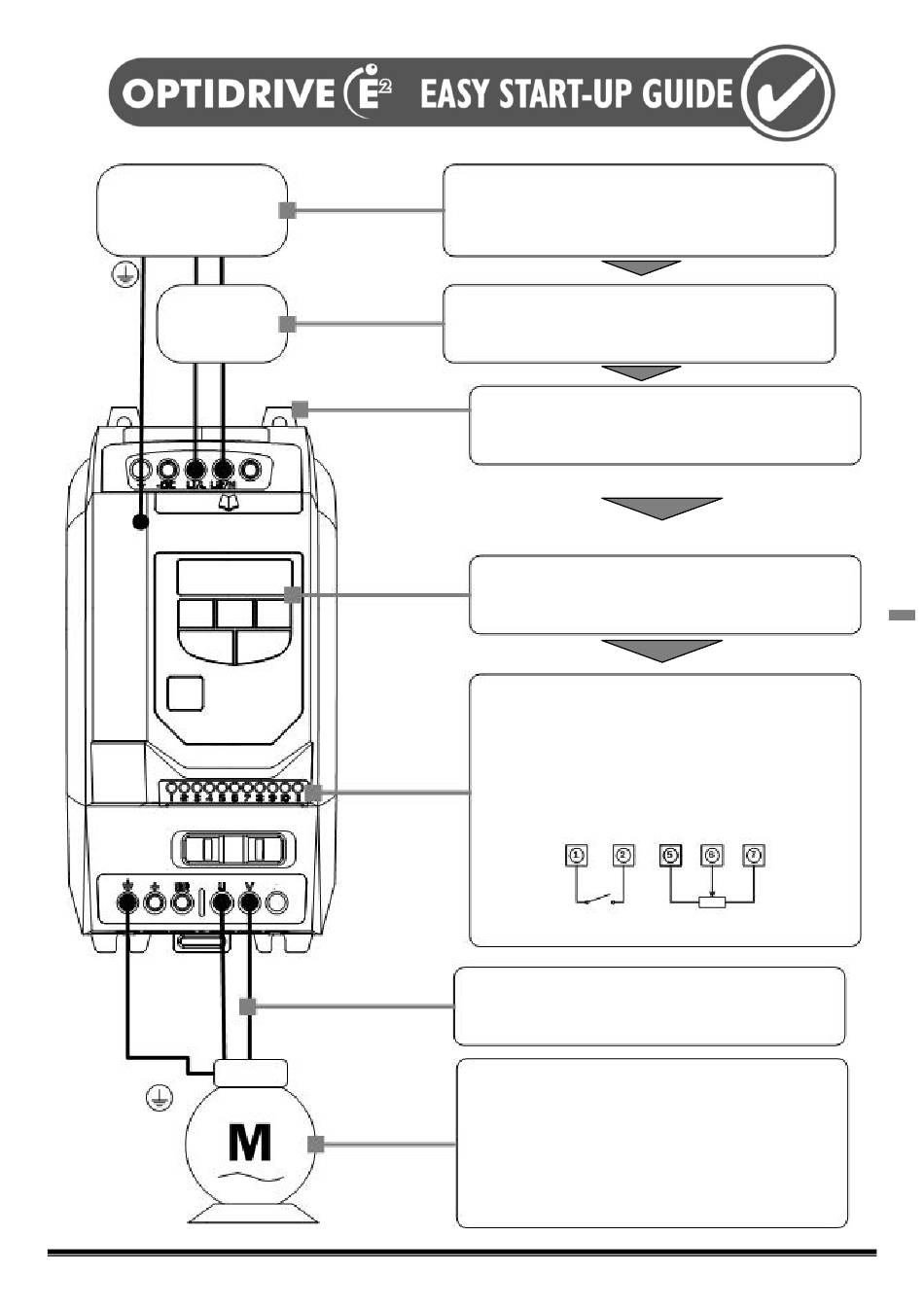

Optidrive E2 Single Phase Output User Guide V3.10
Supply Voltage:
Fuses or MCB & cable sizes:
Mechanical Mounting:
Keypad Operation can be found on page 16
Control Terminals:
Based on default settings out of the box -
1. Connect a START/STOP switch from Terminal 1
to 2.
2. Connect a 10kΩ potentiometer on terminal 5, 6
& 7 to vary the speed from 0 to 50Hz (60Hz for HP
drives)
Motor cable sizes:
Motor Connection:
Motor Nameplate Details:
See page 17 for further information on motor settings
www.invertekdrives.com
- 115, 230V
- 1 phase
- check drive rating information on page 27
- check drive rating information on page 27
- Information can be found on page 9
Close the contact START (enable) the drive
Open the contact STOP the drive.
Stop - Run
Speed
- check drive rating information on page 27
- check Motor connection detail on page 13
- Enter motor rated voltage (V) in P-07
- Enter motor rated current (A) in P-08
- Enter motor rated frequency (Hz) in P-09
10kΩ
Pot
2
