BE8105

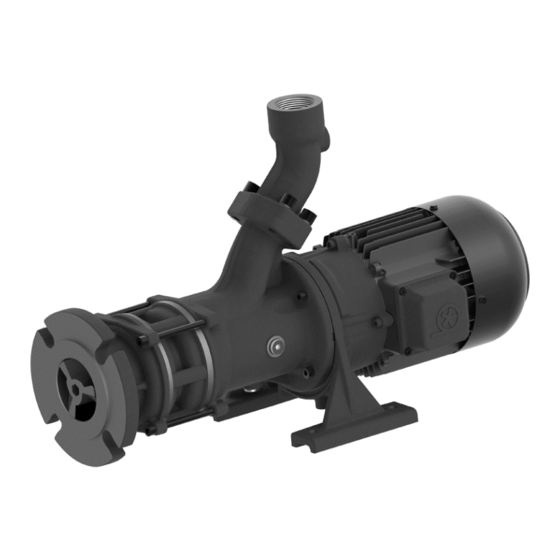

BRINKMANN-Horizontal End Suction Pumps
SBA401...604, SBG501...503 and SBF550
Brinkmann Pumpen
K. H. Brinkmann GmbH & Co. KG
Friedrichstraße 2
D-58791 Werdohl
Tel.: +49-2392 / 5006-0
Fax.: +49-2392 / 5006-180
Subject to change without prior notice.
© Brinkmann Pumpen
Operating Instructions
(Translation of original)
11/2019
Edition
www.brinkmannpumps.de
sales@brinkmannpumps.de
Order - No. : BE8105 ENGLISH
1 of 10
Page
Advertisement
Table of Contents
Related Manuals for BRINKMANN PUMPS SBF550
Summary of Contents for BRINKMANN PUMPS SBF550
- Page 1 BE8105 Operating Instructions (Translation of original) BRINKMANN-Horizontal End Suction Pumps SBA401...604, SBG501...503 and SBF550 Brinkmann Pumpen K. H. Brinkmann GmbH & Co. KG Friedrichstraße 2 D-58791 Werdohl Tel.: +49-2392 / 5006-0 www.brinkmannpumps.de Fax.: +49-2392 / 5006-180 sales@brinkmannpumps.de Subject to change without prior notice.
-
Page 2: Table Of Contents
Particle-size in 6 mm SBA401…403 the medium 7 mm SBG501…503 11 mm SBA601…604 11 mm SBF550 Safety sign according with min. delivery 1% of Q max. ISO 3864–B.3.6 volume Dry running Dry running causes increased Where non-compliance with the safety instructions wear and should be avoided. -
Page 3: Safety Instructions
SBG501 1.27 SBG502 2.55 SBG503 SBF550 1.27 1) Dimensions in accordance with page 4 2) Noise emissions measured in accordance with DIN 45635 at a distance of 1 m. Pipe connection: Suction side DN65 / PN16. Pressure side G 1 ½ . -
Page 4: Transport And Storage
Safety instructions relevant for operation 5 Installation and Connection • If hot or cold machine components involve Mechanical installation hazards. they must be guarded against acci- The pumps must be properly fastened. The pipe- dental contact. work must be installed so that no distortion of the •... -
Page 5: Start Up / Shut Down
Electric wiring 6 Start up / Shut down Start up ATTENTION Switch off at the mains. All service work must be carried out by quali- After connection the electrical wires, close the fied service personnel. Pump must be discon- terminal box. Briefly start the motor (max. 30 sec.) nected from the power source and all rotating and check the rotation according to the arrow on parts must stand still. -
Page 6: Servicing And Maintenance
8 Servicing and Maintenance Pumps with double mechanical seal (-GD) Pumps with double mechanical seal (-GD) are ATTENTION identified by the letters GLRD stamped in on the motor side of the pump foot and must include an oil The surface of the motor must be kept free of dirt. receiver with a capacity of 0.24 litres. -
Page 7: Spare Part
10 Spare part 10.1 Spare part list for Brinkmann Horizontal SBA401...604. SBG501...503 and SBF550 End-Suction Pumps Series Item Description Item Description Stator with terminal board 50 Pump body Motor flange 51 Motor shaft with rotor End shield 52 Connection cover... -
Page 8: Repair Instructions
10.2 Indications to the spare part order 10)Loosen the Socket head cap screws (17) and remove the pump body (50). Spare parts are available from the supplier. Standard commercially available parts are to be 11)Remove circlip (25) and the Shim ring (22) and purchased in accordance with the model type. -
Page 9: Disposal
(not cross-ways). − Tighten the shaft clamp ( 24 mm) for SBA401, 601, SBG501 and SBF550 Use a torque screwdriver to tighten each screw first with 1.3 Nm then with 2.6 Nm and finally with 4 Nm (in a clockwise direction again). -
Page 10: Ec Declaration Of Conformity
Produktbezeichnung / Product name / Désignation du produit / Designación del producto Blockpumpen / Horizontal End-Suction Pumps / Pompes horizontales monobloc / Bombas horizontales monobloc SBA401…604, SBG501…503, SBF550 Typ / Type / Tipo Das bezeichnete Produkt stimmt mit den folgenden Richtlinien des Rates zur Angleichung der Rechtsvorschriften der EG-Mitgliedsstaaten überein:...
