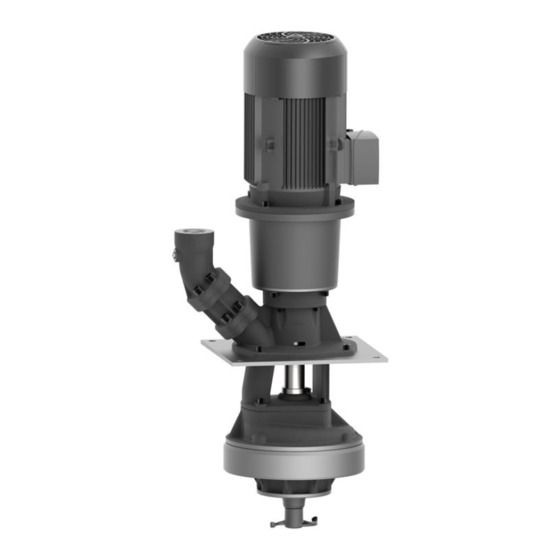

BRINKMANN Cutter pumps
Brinkmann Pumpen
K. H. Brinkmann GmbH & Co. KG
Friedrichstraße 2
D-58791 Werdohl
Tel.: +49-2392 / 5006-0
Fax.: +49-2392 / 5006-180
Subject to change without prior notice.
© Brinkmann Pumpen
BE3128 Operating Instructions
(Translation of original)
Edition
SXC2824-R
www.brinkmannpumps.de
sales@brinkmannpumps.de
Order - No.: BE3128 ENGLISH
01/2023
1
Advertisement
Table of Contents
Related Manuals for BRINKMANN PUMPS SXC2824-R
Summary of Contents for BRINKMANN PUMPS SXC2824-R
- Page 1 BE3128 Operating Instructions (Translation of original) BRINKMANN Cutter pumps SXC2824-R Brinkmann Pumpen K. H. Brinkmann GmbH & Co. KG Friedrichstraße 2 D-58791 Werdohl Tel.: +49-2392 / 5006-0 www.brinkmannpumps.de Fax.: +49-2392 / 5006-180 sales@brinkmannpumps.de Subject to change without prior notice. Order - No.: BE3128 ENGLISH ©...
-
Page 2: Table Of Contents
BRINKMANN-Cutter pumps SXC2824-R Brinkmann Cutter pumps of the series SXC2824-R Contents 9 Trouble shooter’s guide ........9 Indication to the manual ........2 Description of product ........2 10 Spare part ............10 Safety instructions ..........4 11 Repair Instructions / Replacing shaft clamps Transport and storage ........ - Page 3 BRINKMANN-Cutter pumps SXC2824-R Limit of Application (Table 1) Type SXC-R Mediums Coolants, cooling- and cutting-oils on WARNING request. Risk of fire and explosion! Flashing point of ≥ 150 °C Pump may not be used in potentially explosive the medium to be environments.
-
Page 4: Safety Instructions
BRINKMANN-Cutter pumps SXC2824-R 3 Safety instructions When operating the pump, the safety instructions Safety instructions relevant for contained in this manual, the relevant national ac- operation cident prevention regulations and any other ser- – If hot or cold machine components involve... -
Page 5: Transport And Storage
BRINKMANN-Cutter pumps SXC2824-R 5 Installation and Connection Signs on the pump – It is imperative that signs affixed to the ma- Mechanical installation chine, e.g: • arrow indicating the direction of rota- tion WARNING • symbols indicating fluid connections Risk of clamping or crushing body parts when installing or removing the pump ex- be observed and kept legible. - Page 6 BRINKMANN-Cutter pumps SXC2824-R When pumping cooling- and cutting oils the following is to be adhered to: – The geometry of the tank must be de- signed and executed in such a way that no flammable aerosol can develop (i.e. through velocity) during operation of the pump.
-
Page 7: Start Up / Shut Down
BRINKMANN-Cutter pumps SXC2824-R 7 Operation The electrical wiring must be performed ac- cording to the wiring diagram shown inside the terminal box cover. (Please see above sample wiring diagrams) WARNING Wiring diagram e.g. Risk of injury by uncontrolled start-up of... -
Page 8: Servicing And Maintenance
BRINKMANN-Cutter pumps SXC2824-R 8 Servicing and Maintenance WARNING Risk of fire and explosion! CAUTION The creation of an ignition spark with the pres- Risk of burns! ence of an ignitable Aerosol can lead to risk of – The pump must have cooled down suffi- fire and explosion. -
Page 9: Trouble Shooter's Guide
BRINKMANN-Cutter pumps SXC2824-R 9 Trouble shooter’s guide Fault Cause Remedy Motor does not start, no motor At least two of the power supply Check fuses, terminals and supply noise leads have failed leads. Overload has tripped Inspect overload Motor does not start, humming... -
Page 10: Spare Part
BRINKMANN-Cutter pumps SXC2824-R 10 Spare part Spare part list for the immersion 10.1 pumps of the series SXC2824-R Item Description Motor Bearing flange Pump housing Bearing shaft Woodruff key Coupling Ball bearing DIN 628 Socket head cap screw DIN 912... -
Page 11: Repair Instructions / Replacing Shaft Clamps And Shafts
BRINKMANN-Cutter pumps SXC2824-R Indications to the spare part order Risk of injury due to sharp edges on pump 10.2 components, i.e. impeller blades! Spare parts are available from the supplier. – Wear safety gloves! Standard commercially available parts are to be purchased in accordance with the model type. -
Page 12: Disposal
BRINKMANN-Cutter pumps SXC2824-R WARNING Risk of injury due to sharp edges on pump components, i.e. impeller blades! – Wear safety gloves! – Install the motor. – The remainder of the reassembly process is to be completed in the opposite order of the prior described dismantling process. -
Page 13: Eclarations Of Conformity
Manufacturer Brinkmann Pumpen, K. H. Brinkmann GmbH & Co. KG Friedrichstraße 2 D-58791 Werdohl Germany This declaration of conformity is issued under the sole responsibility of Brinkmann Pumps and belongs to the following product. Product name Cutter Pumps Type SXC2824-R The named product described above complies with the following statutory requirements of United Kingdom: UK SI 2008 No. - Page 14 BRINKMANN-Cutter pumps SXC2824-R EC declaration of conformity 13.2 DEUTSCH / ENGLISH /FRANÇAIS / ESPAÑOL EG-Konformitätserklärung EC declaration of conformity / Déclaration de conformité CE / Declaración de conformidad CE Hersteller / Manufacturer / Constructeur / Fabricante Brinkmann Pumpen, K. H. Brinkmann GmbH & Co. KG Friedrichstraße 2, D-58791 Werdohl...
