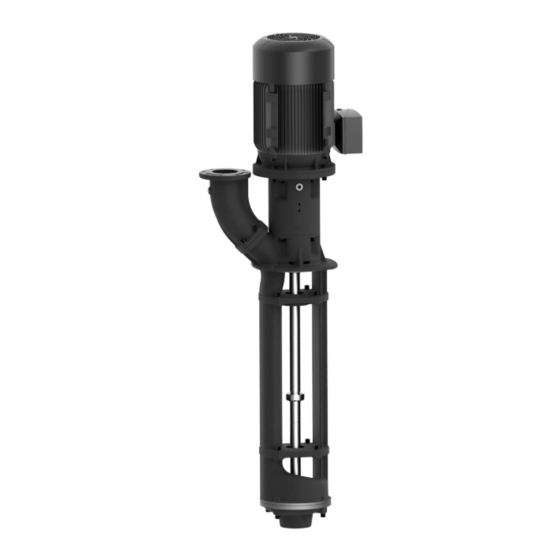

BRINKMANN Immersion Pumps
Brinkmann Pumpen
K. H. Brinkmann GmbH & Co. KG
Friedrichstraße 2
D-58791 Werdohl
Tel.: +49-2392 / 5006-0
Fax.: +49-2392 / 5006-180
Subject to change without prior notice.
© Brinkmann Pumpen
BE3450 Operating Instructions
(Translation of original)
Edition
STA3600...STA4500
www.brinkmannpumps.de
sales@brinkmannpumps.de
Order - No.: BE3450 ENGLISH
01/2023
1
11
Page
of
Advertisement
Table of Contents
Related Manuals for BRINKMANN PUMPS STA3600 Series
Summary of Contents for BRINKMANN PUMPS STA3600 Series
- Page 1 BE3450 Operating Instructions (Translation of original) BRINKMANN Immersion Pumps STA3600…STA4500 Brinkmann Pumpen K. H. Brinkmann GmbH & Co. KG Friedrichstraße 2 D-58791 Werdohl Tel.: +49-2392 / 5006-0 www.brinkmannpumps.de Fax.: +49-2392 / 5006-180 sales@brinkmannpumps.de Subject to change without prior notice. Order - No.: BE3450 ENGLISH ©...
-
Page 2: Table Of Contents
Brinkmann Immersions pumps of the series STA3600…STA4500 Contents 9 Trouble shooter’s guide ........7 Indication to the manual ........2 Description of product ........2-3 10 Spare part ............8-9 Safety instructions ..........4 11 Repair ............... 9 Transport and storage ........4 12 Disposal ............ - Page 3 Technical data Max. del. Max. del. Height Depth of Weight Power Noise pressure bar / volume immersion 50 / 60 Hz level Type spec. weight 1 l/min H mm h mm STA3600 / 520 4600 1041 22.0 / 25.3 / 720 / 920 /1270 1271...
-
Page 4: Safety Instructions
• Guards for moving parts (e.g. coupling) must not 3 Safety instructions be removed from the machine while in opera- When operating the pump, the safety instructions contained in this manual, the relevant national tion. accident prevention regulations and any other •... -
Page 5: Installation And Connection
5 Installation and Connection Electric wiring Mechanical installation During any assembly or disassembly process the pumps must be secured against tipping trough ropes for example at all times. All service work must be carried out by quali- Pumps must be mounted securely. Piping, tank and fied service personnel. -
Page 6: Start Up / Shut Down
6 Start up / Shut down Start up ATTENTION If the pump should lock up and cease, shut Switch off at the mains. pump down (see 6.2) and disconnect from After connection the electrical wires, close the power supply. Pump must be uninstalled and terminal box. -
Page 7: Trouble Shooter's Guide
9 Trouble shooter’s guide Fault Cause Remedy Motor does not start, no motor At least two of the power supply Check fuses, terminals and supply noise leads have failed leads . Overload has tripped Inspect overload Motor does not start, humming noise One of the supply leads has failed See above Impeller faulty... -
Page 8: Spare Part
10 Spare part 10.1 Spare part list for the immersion pumps of the series STA3600…STA4500 Item Description Motor Bearing housing Woodruff key Bearing shaft Ball bearing DIN 628 Socket head cap screw with lock DIN 912 Ball bearing DIN 628 Bearing cover Coupling 10 Intermediate plate... -
Page 9: Repair
– Loosen the screws on the shaft clamp (1) (see 10.2 Indications to the spare part order above), pull the insert shaft (2) off the motor Spare parts are available from the supplier. Standard commercially available parts are to be shaft (3). -
Page 10: Eclaration Of Conformity
Manufacturer Brinkmann Pumpen, K. H. Brinkmann GmbH & Co. KG Friedrichstraße 2 D-58791 Werdohl Germany This declaration of conformity is issued under the sole responsibility of Brinkmann Pumps and belongs to the following product. Product name Immersion pumps STA3600…STA4500 Type The named product described above complies with the following statutory requirements of United Kingdom: UK SI 2008 No. - Page 11 13.2 EC declaration of conformity DEUTSCH / ENGLISH /FRANÇAIS / ESPAÑOL EG-Konformitätserklärung EC declaration of conformity / Déclaration de conformité CE / Declaración de conformidad CE Hersteller / Manufacturer / Constructeur / Fabricante Brinkmann Pumpen, K. H. Brinkmann GmbH & Co. KG Friedrichstraße 2, D-58791 Werdohl Produktbezeichnung / Product name / Désignation du produit / Designación del producto Tauchpumpen / Immersion pumps / Pompes plongeantes / Bombas de inmersión...
