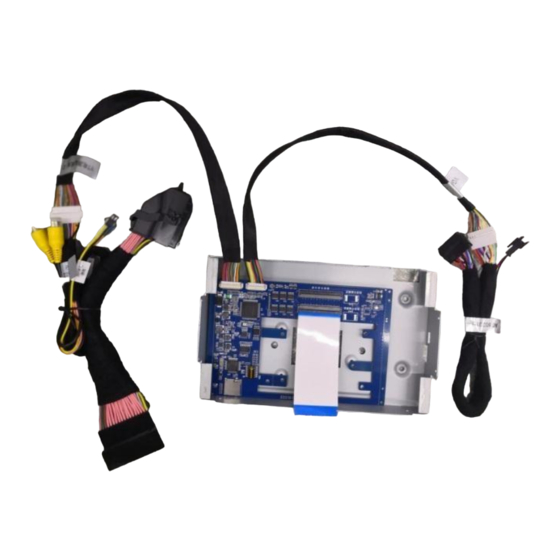

- Page 1 User Manual OEM RADIO:Camera Interface for FORD SYNC 2 system with OEM monitor Model name CI-VL7-SY2 Released Date 2020-03-18 Manual Version V1.3 Language English www.car-interface.com...
- Page 2 1. Car Compatibility Model Radio / Navigation C-MAX from 2016 Focus from 2015 Kuga 2016 - 2017 Mondeo from 2015 Raptor F-150 2013 Original Sync2 touch monitors Ranger 2015 - 2016 Galaxy until 2016 Explorer S-Max until 2015 www.car-interface.com...
-
Page 3: Table Of Contents
Contents Features ................................4 Specifications............................... 5 Packing Lists ................................ 6 Wiring Diagram ..............................7 DIP Switch Settings ............................. 8 Operation Instructions ............................11 Safety Considerations ............................17 www.car-interface.com... -
Page 4: Features
1. Features: A. IPAS+ 1 Video in B. Support Intelligent parking assist system(selected models) C. Reverse camera auto trigger D. 1 video in for rear camera, another for 360 view or DVR/front view(need factory radio botton to switch it) -
Page 5: Specifications
2. Specifications 1. Interface I/O Spec: Input: CVBS *2 (Rear View Camera, 360, Front View Camer), Output: FPC 2. Power Spec: Input Power: 9V-16V Consumption: 6W 3. Package Content: Interface Unit * 1 Main Power Cable * 1 FPC * 1... -
Page 6: Packing Lists

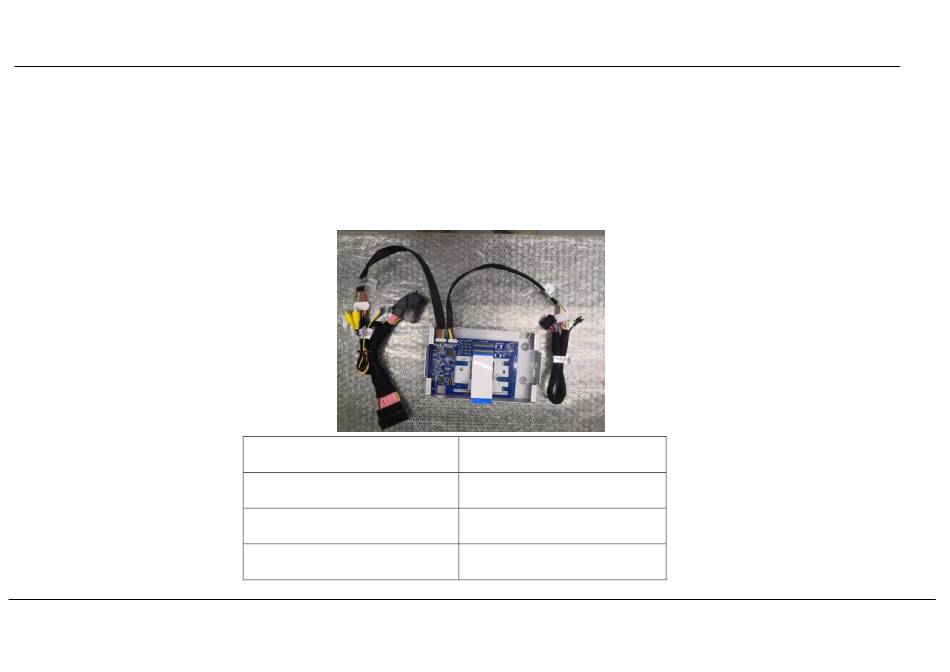

3. Packing Lists Camera Interface Power Harness www.car-interface.com... -
Page 7: Wiring Diagram
4. Wiring Diagram (VGA harness in the picture is optional) www.car-interface.com... -
Page 8: Dip Switch Settings
5. DIP Switch Settings ▼ ▲ ON ( OFF( Car Model No.1 No.2 No.3 Kuga/Focus OFF(▲) OFF(▲) OFF(▲) New Edge ON (▼) OFF(▲) OFF(▲) Other Ford models please try all DIP 1/2/3 setting ▼ ▲ ON ( OFF( Turn off PDC... - Page 9 ▼ *Please note that DIP Switch 5 and 8 put ON ( for OEM rear view. * Dip Switcher SettingsⅡ（Quick Setting）: Mode selection No.4 No.5 No.6 No.7 No.8 ▲ ▲ ▲ ▲ ▼ OFF( OFF( OFF( OFF( ON ( AV.360 (Canbus reverse...
-
Page 10: Operation Instructions
6. Operation Instructions 6.1 Installation Process * Please note that power off the car and take protection measures to avoid damaging in the installation. 1. Focus(SYNC2) central control map (Figure 1). 2. First remove the top frame on the screen of the original car with tools (Figure 2). - Page 11 4. Remove the four screws with a screwdriver at the back of the screen. Replace the rear cover of the screen with the one provided in the set of Interface(Figure 4). 5. Same as step 4 to remove the four screws at the side of the display with a screwdriver (Figure 5), unscrew the three screws on the original screen board (Figure 6).
- Page 12 6. Install the three screw holes of the interface with the original screen board to fix the original screen board. 7. Set the dip switcher before recover the radio. Transfer the power harness as below: www.car-interface.com...
- Page 13 * Long press MENU button on the steering wheel for 2 seconds to enter the DVR/front view. www.car-interface.com...
-
Page 14: Safety Considerations
7. Safety Considerations 1. In order to protect driving safety and avoid breaking the traffic law, please do not watch the program or use this product when you’re driving. 2. Please do not put the product in the damp environment or water, in order to avoid electric shock, damaged and fire accident caused by short circuit. - Page 15 7. The cables should be connected in a good way, the vehicle installation space is small, so reduce space usage as far as possible, and it will easy installation for monitor. There should be a good plan about connect cables, avoid affecting the active component of connecting, such as control components of turning steering wheel, throttle and brake pedal.
- Page 16 www.car-interface.com...
