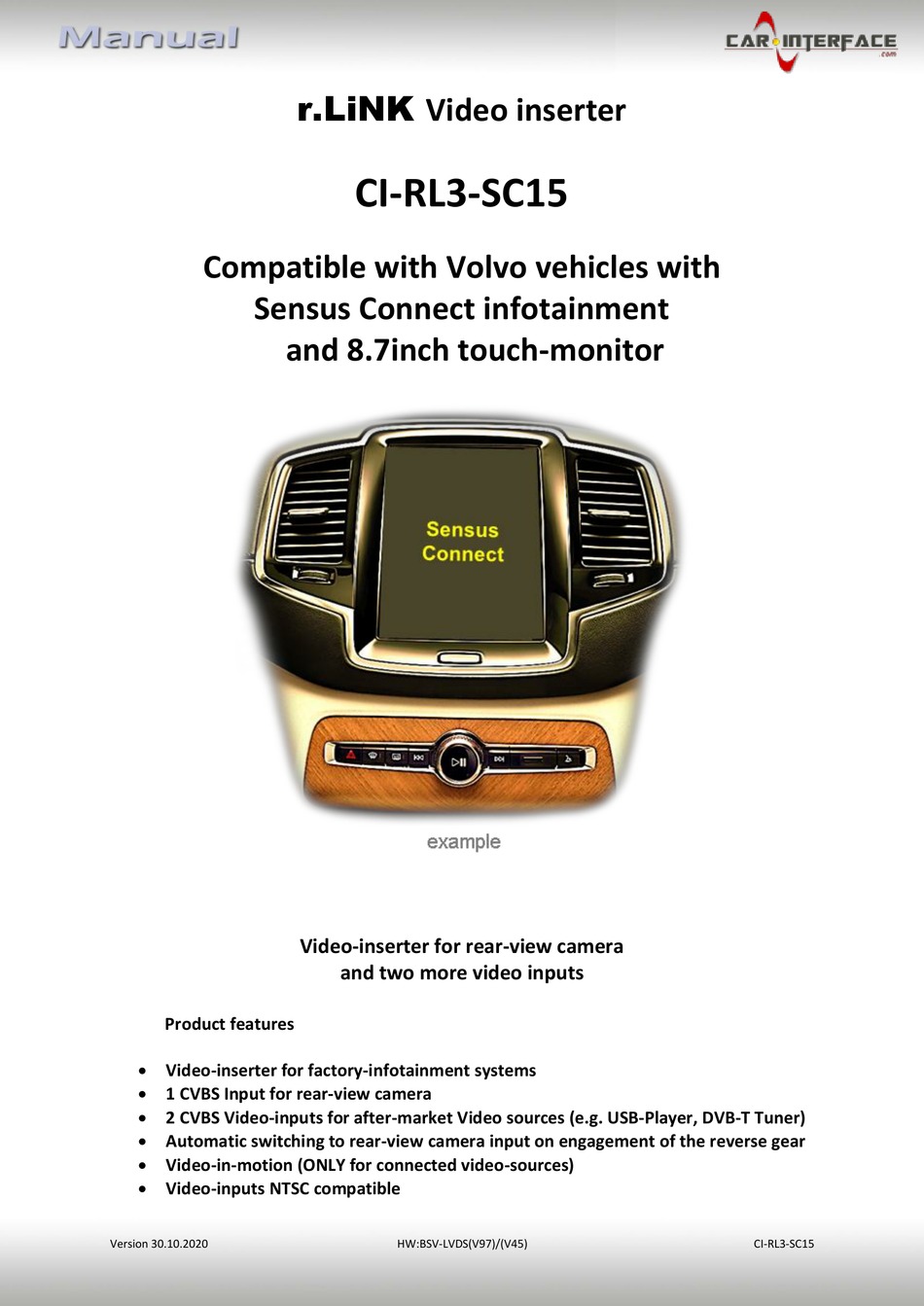

r.LiNK Video inserter
CI-RL3-SC15
Compatible with Volvo vehicles with
Sensus Connect infotainment
and 8.7inch touch-monitor
Video-inserter for rear-view camera
and two more video inputs
Product features
Video-inserter for factory-infotainment systems
1 CVBS Input for rear-view camera
2 CVBS Video-inputs for after-market Video sources (e.g. USB-Player, DVB-T Tuner)
Automatic switching to rear-view camera input on engagement of the reverse gear
Video-in-motion (ONLY for connected video-sources)
Video-inputs NTSC compatible
Version 30.10.2020
HW:BSV-LVDS(V97)/(V45)
CI-RL3-SC15
Advertisement
Table of Contents
Related Manuals for Car-Interface CI-RL3-SC15
Summary of Contents for Car-Interface CI-RL3-SC15
- Page 1 Video inserter CI-RL3-SC15 Compatible with Volvo vehicles with Sensus Connect infotainment and 8.7inch touch-monitor Video-inserter for rear-view camera and two more video inputs Product features Video-inserter for factory-infotainment systems 1 CVBS Input for rear-view camera 2 CVBS Video-inputs for after-market Video sources (e.g. USB-Player, DVB-T Tuner) ...
-
Page 2: Table Of Contents
Case 2: Interface does not receive the reverse gear signal 2.7. Connection - video-interface and external keypad 2.8. Picture settings 3. Interface operation 3.1. By factory infotainment button 3.2. By external keypad 4. Specifications 5. FAQ – Trouble Shooting-Interface functions Version 30.10.2020 HW:BSV-LVDS(V97)/(V45) CI-RL3-SC15... -
Page 3: Prior To Installation

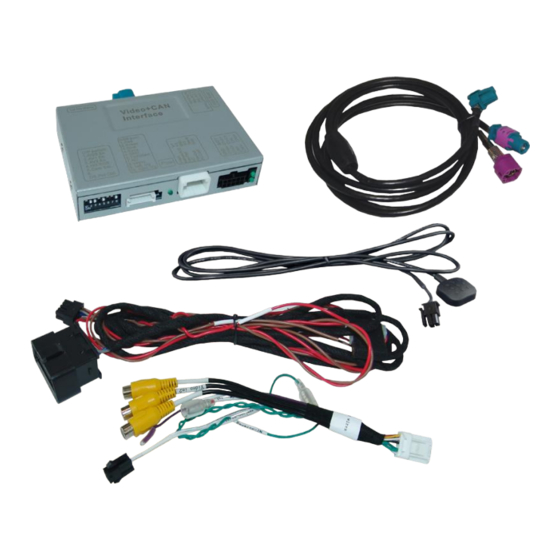

Due to changes in the production of the vehicle manufacturer there’s always a possibility of incompatibility. 1.1. Delivery contents Take down the serial number of the interface and store this manual for support purposes: ____________________ Version 30.10.2020 HW:BSV-LVDS(V97)/(V45) CI-RL3-SC15... -
Page 4: Checking The Compatibility Of Vehicle And Accessories
The video-interface converts the connected after-market sources video signals into a LVDS signal which is inserted in the factory monitor using separate trigger options. Further it reads the vehicle’s digital signals out of the vehicle’s CAN-bus and converts them for the video interface. Version 30.10.2020 HW:BSV-LVDS(V97)/(V45) CI-RL3-SC15... -
Page 5: Settings Of The 8 Dip Switches (Black)
OFF. Dip position down is ON and position up is OFF. Vehicle/Navigation Dip 1 Dip 2 Dip 3 Dip 4 Volvo XC90 After each Dip-switch-change a power-reset of the Can-box has to be performed! Version 30.10.2020 HW:BSV-LVDS(V97)/(V45) CI-RL3-SC15... -
Page 6: Installation
The interface needs a permanent 12V source! 2.1. Place of installation The interface is supposed to be installed at a suitable location behind the factory monitor. Version 30.10.2020 HW:BSV-LVDS(V97)/(V45) CI-RL3-SC15... -
Page 7: Connection Schema
2.2. Connection schema Version 30.10.2020 HW:BSV-LVDS(V97)/(V45) CI-RL3-SC15... -
Page 8: Connection - Picture Signal Cable
Connect the opposite female waterblue coloured HSD+2 connector of the picture signal cable to the waterblue coloured male HSD+2 connector of the video interface. Note: The colours of the HSD connector of head unit and factory harness may vary. Version 30.10.2020 HW:BSV-LVDS(V97)/(V45) CI-RL3-SC15... -
Page 9: Connection - 10Pin Power / Can Cable
Note: The CAN communication doesn’t succeed in all vehicles. If, after connecting the 10pin Power / CAN cable, no interface LED lightens up while the ignition is turned on, refer to chapter “Analogue power supply for the video interface”. Version 30.10.2020 HW:BSV-LVDS(V97)/(V45) CI-RL3-SC15... -
Page 10: Analog Power Supply For The Video Interface
2.5. Analog power supply for the video interface Connect the red wire ACC-OUT and the purple coloured wire Manual ACC of the 12pin interface cable to +12V ACC power supply. Version 30.10.2020 HW:BSV-LVDS(V97)/(V45) CI-RL3-SC15... -
Page 11: Connection - Video-Sources
Connect the video RCA of the Rear-view camera to the 12pin interface cable’s female RCA connector „Camera IN”. Connect the video RCA of the AV source 1 and 2 to the 12pin interface cable’s female RCA connector “Video IN 1” ” Video IN 2)”. Version 30.10.2020 HW:BSV-LVDS(V97)/(V45) CI-RL3-SC15... -
Page 12: Audio Insertion
“Camera IN” while the reverse gear is engaged. Additionally, the +12V (max. 3A) power supply for the rear-view camera can be taken from the green wire of the 12pin interface cable. Version 30.10.2020 HW:BSV-LVDS(V97)/(V45) CI-RL3-SC15... -
Page 13: Case 2: Interface Does Not Receive The Reverse Gear Signal
(86) of the relay. Connect the output connector (87) of the relay to the rear-view camera’s power- cable, like you did it to the green “Reverse-IN” cable before. Connect stabile and permanent +12V to the relay’s input connector (30). Version 30.10.2020 HW:BSV-LVDS(V97)/(V45) CI-RL3-SC15... -
Page 14: Connection - Video-Interface And External Keypad
Connect the female 4pin connector of the keypad to the male 4pin connector of the 12pin interface cable. Note: Even if switching through several video sources by the keypad mightn’t be required, the invisible connection and availability is strongly recommended. Version 30.10.2020 HW:BSV-LVDS(V97)/(V45) CI-RL3-SC15... -
Page 15: Picture Settings
The following settings are available Contrast Brightness Saturation Position H (horizontal) Position V (vertical) IR-AV1 out of function IR-AV2 out of function Guide-L out of function Guide-R out of function Guide CNTRL out of function Version 30.10.2020 HW:BSV-LVDS(V97)/(V45) CI-RL3-SC15... -
Page 16: Interface Operation
Each press will switch to the next enabled input. Inputs which are not enabled will be skipped. Switchover by vehicle buttons isn’t possible in all vehicles. In some vehicles the external keypad has to be used. Version 30.10.2020 HW:BSV-LVDS(V97)/(V45) CI-RL3-SC15... -
Page 17: Specifications
7V - 25V Stand-by power drain 12mA Power 210mA @12V Video input 0.7V - 1V Video input formats NTSC Temperature range -40°C to +85°C Dimensions video-box 118 x 25 x 104 mm (W x H x D) Version 30.10.2020 HW:BSV-LVDS(V97)/(V45) CI-RL3-SC15... -
Page 18: Faq - Trouble Shooting-Interface Functions
Camera input picture fluorescent light which shines Test camera under natural light outside the garage. flickers. directly into the camera. Camera input picture is Protection sticker not Remove protection sticker from lens. bluish. removed from camera lens. Version 30.10.2020 HW:BSV-LVDS(V97)/(V45) CI-RL3-SC15... - Page 19 Cut the grey wire of 6pin to 8pin and isolate both Interface switches compatibility to vehicle is ends. If problem still occurs, additionally cut the white video-sources by itself. limited. wire of 6pin to 8pin cable and isolate both ends. 10R-03 5384 Made in China Version 30.10.2020 HW:BSV-LVDS(V97)/(V45) CI-RL3-SC15...
