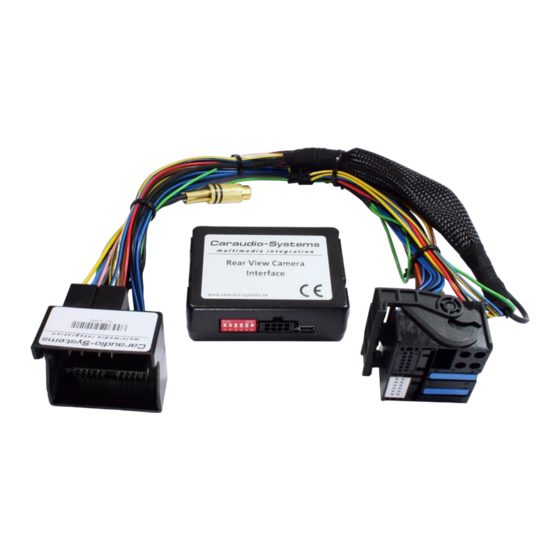

r.LiNK-Interface
CI-RL-PCM3-TF
Rear-view camera-input
and
video-in-motion
for Porsche vehicles with
PCM 3 and PCM 3.1 navigation systems
Only for vehicles WITHOUT factory rear-view camera
Product features
• Plug and play interface
• Integrated into the vehicle infotainment
• Rear-view camera input (+ coding)
• Rear-view camera power (+12V max. 400mA)
• Video-in-motion
• Automatic switching to rear-view camera input
• Optionally coding of ParkAssistant to retrofit factory PDC
Version 13.03.2015
CI-RL-PCM3-TF
Advertisement
Table of Contents
Related Manuals for Car-Interface CI-RL-PCM3-TF
Summary of Contents for Car-Interface CI-RL-PCM3-TF
- Page 1 CI-RL-PCM3-TF Rear-view camera-input video-in-motion for Porsche vehicles with PCM 3 and PCM 3.1 navigation systems Only for vehicles WITHOUT factory rear-view camera Product features • Plug and play interface • Integrated into the vehicle infotainment • Rear-view camera input (+ coding) •...
-
Page 2: Table Of Contents
Contents 1. Prior to installation 1.1. Delivery contents 1.2. Check compatibility of vehicle and accessories 1.3. Setting the Dip-switches of the CAN-Box RLC-TV-521 1.4. Pin-assignments 2. Connection schema 3. Installation 3.1. Interconnecting CAN-box, harness and factory navigation monitor 3.2. Connection to rear-view camera 3.3. -
Page 3: Prior To Installation
1. Prior to installation Read the manual prior to installation. Technical knowledge is necessary for installation. The place of installation must be free of moisture and away from heat sources. 1.1. Delivery contents Take down the SW-version and HW-version of the interface boxes, and store this manual for support purposes. -
Page 4: Pin-Assignments
1.3. Setting the dip switches of the CAN-box RLC-TV521 Vehicle/ navigation Dip 1 Dip 2 Dip 3 Dip 4 Dip 5 Dip 6 PCM 3 with video-in-motion activated PCM 3 with video-in-motion deactivated PCM 3.1 with video-in-motion activated PCM 3.1 with video-in-motion deactivated Note: Dip switch functions of the CAN-box RLC-TV-521 Dip 1 –... -
Page 5: Connection Schema
2. Connection schema Version 13.03.2015 RL-PCM3-TF... -
Page 6: Installation
3. Installation Switch off ignition and disconnect the vehicle’s battery! If according to factory rules disconnecting the battery has to be avoided, it is usually sufficient to put the vehicle in sleep-mode. In case the sleep-mode does not show success, disconnect the battery with a resistor lead. -
Page 7: Connection To Rear-View Camera
3.2. Connections to rear-view camera Connect the video RCA of the rear-view camera to the female RCA connector of harness RLC-POR03. Connect the green cable of harness RLC-POR03 to the camera power supply (+12V max 400mA). The green cable is high when reverse gear is engaged (if ignition is off, too). -
Page 8: Coding Of The Rear-View Camera (Only Pcm3.1)
3.3. Coding of the rear-view camera (only PCM3.1) HASH KEY/MODE BACK ACCEPT HANG UP Steering-wheel buttons left Steering-wheel buttons right It is necessary to code the rear-view camera input of the PCM 3.1 to use it for an after- market rear-view camera. 1. -
Page 9: Optionally Coding Of Parkassistant To Retrofit Factory Pdc (Only Pcm3.1)
3.4. Optionally coding of ParkAssistant to retrofit factory PDC (only PCM3.1) HASH KEY/MODE BACK ACCEPT HANG UP Steering-wheel buttons left Steering-wheel buttons right It is necessary to code the ParkAssistant of the PCM 3.1 to retrofit factory PDC. 1. Turn on ignition 2. -
Page 10: Alternatively Coding And Decoding Of Rear-View Camera And Parkassistant
3.5. Alternatively coding and decoding of rear-view camera and ParkAssistant (e.g. if steering-wheel buttons not existing, only PCM3.1) BACK HASH KEY/MODE ACCEPT HANG UP Alternatively to coding by steering-wheel buttons the coding and decoding of rear-view camera and ParkAssistant can be done by loose white cable in connection with dip 3 and 4 of CAN-box RLC-TV521. -
Page 11: Coding And Decoding Of Rear-View Camera (Only Cayenne With Pcm3)
3.6. Coding and decoding of rear-view camera (only Porsche Cayenne with PCM3) The rear-view camera coding and decoding can be done by loose white cable in connection with dip 3 of CAN-box RLC-TV521. Function Dip 3 Rear-view camera Coding Decoding 1. -
Page 12: Specifications
5. Specifications Operation voltage 10.5 – 14.8V Stand-by power drain <2mA Operation power drain ~60mA Power consumption ~0,08W Temperature range -30°C to +80°C Weight Measurements (box only) W x H x D 76 x 27 x 54 mm Legal disclaimer: Mentioned company and trademarks, as well as product names/codes are registered trademarks ®...
