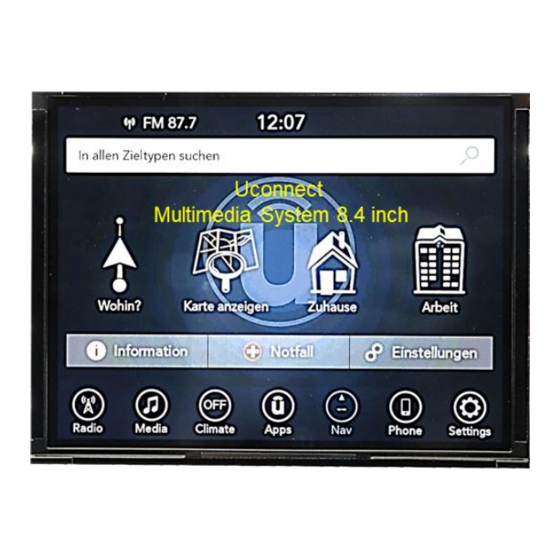

with Uconnect Multimediassystem
Video-inserter for front- and rear-view camera
Product features
Video-inserter for factory-infotainment systems
1 CVBS Input for rear-view camera
1 CVBS Input for front camera
2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner)
Automatic switching to rear-view camera input on engagement of the reverse gear
Automatic front camera switching after reverse gear for 10 seconds
Video-in-motion (ONLY for connected video-sources)
Video-inputs NTSC and PAL compatible
Version 20.08.2021
Video-inserter
CI-RL4-UCON8-CP
Compatible with
Dodge and Jeep vehicles
with 8.4" monitor
and two additional video sources
HW CANM(V100)/(V36)
CI-RL4-UCON8-CP
Advertisement
Table of Contents
Related Manuals for Car-Interface CI-RL4-UCON8-CP
Summary of Contents for Car-Interface CI-RL4-UCON8-CP

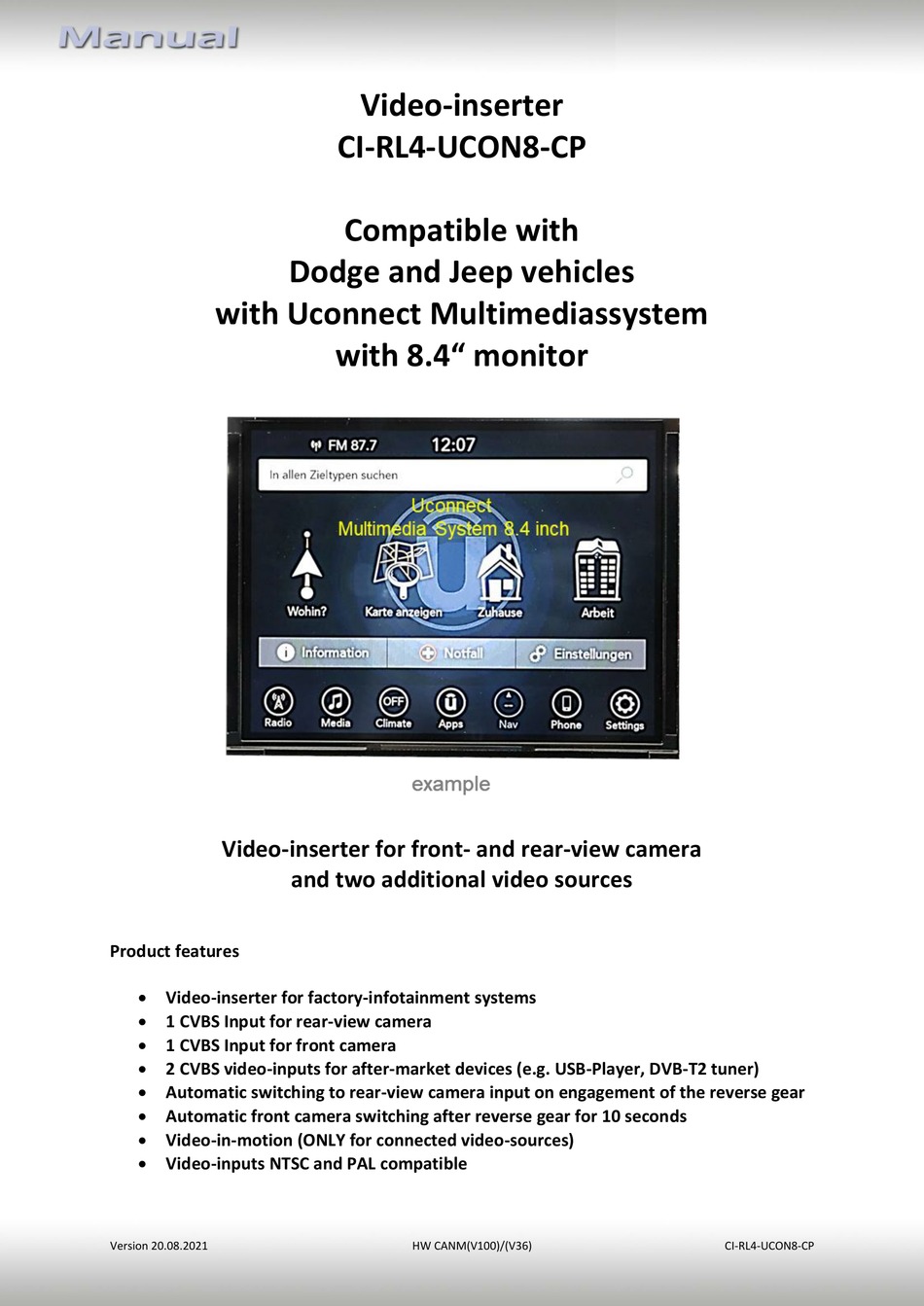

- Page 1 Video-inserter CI-RL4-UCON8-CP Compatible with Dodge and Jeep vehicles with Uconnect Multimediassystem with 8.4“ monitor Video-inserter for front- and rear-view camera and two additional video sources Product features Video-inserter for factory-infotainment systems 1 CVBS Input for rear-view camera 1 CVBS Input for front camera ...
-
Page 2: Table Of Contents
2.10.3.1. Case 1: Video-interface receives the reverse gear signal 2.10.3.2. Case 2: Video interface does not receive the reverse gear signal 2.11. Connection – external keypad Interface operation by external keypad Picture settings Specifications Frequently asked questions Version 20.08.2021 HW CANM(V100)/(V36) CI-RL4-UCON8-CP... -
Page 3: Prior To Installation
1. Prior to installation Read the manual prior to installation. Technical knowledge is necessary for installation. The place of installation must be free of moisture and away from heat sources. 1.1. Delivery contents Version 20.08.2021 HW CANM(V100)/(V36) CI-RL4-UCON8-CP... -
Page 4: Checking The Interface Compatibility Of Vehicle And Accessories
1.3. Connectors 1.3.1. Connectors - video-interface The video-interface converts the video signals of connected after-market sources in a factory monitor compatible picture signal which is inserted in the factory monitor, by using separate trigger options. Version 20.08.2021 HW CANM(V100)/(V36) CI-RL4-UCON8-CP... -
Page 5: Connectors - Daughter Pcb
1.3.2. connectors – daughter PCB Version 20.08.2021 HW CANM(V100)/(V36) CI-RL4-UCON8-CP... -
Page 6: Dip-Switch Settings
Set to OFF No function Set to OFF No function No function Set to OFF *The front camera will automatically be switched for 10 seconds after disengaging the reverse gear. See the following chapters for detailed information. Version 20.08.2021 HW CANM(V100)/(V36) CI-RL4-UCON8-CP... -
Page 7: Activating The Front Camera Input (Dip 1)
Dip position down is ON and position up is OFF. Set all dip switches to off Vehicle/Navigation Dip 1 Dip 2 Dip 3 Dip 4 All vehicles Version 20.08.2021 HW CANM(V100)/(V36) CI-RL4-UCON8-CP... -
Page 8: Installation
The interface needs a permanent 12V source! 2.1. Place of installation The video interface is designated to be connected behind the vehicle`s head unit. The daughter PCB shell be installed and connected inside the factory head unit behind the monitor panel. Version 20.08.2021 HW CANM(V100)/(V36) CI-RL4-UCON8-CP... -
Page 9: Connection Scheme - With Pnp Harness
2.2. Connection Scheme – with PNP harness Version 20.08.2021 HW CANM(V100)/(V36) CI-RL4-UCON8-CP... -
Page 10: Connection Scheme - Without Pnp Harness
2.3. Connection Scheme – without PNP harness Version 20.08.2021 HW CANM(V100)/(V36) CI-RL4-UCON8-CP... -
Page 11: Installation - Ribbon Cables Into The Monitor Panel
Installation - ribbon cables into the monitor panel Remove the factory monitor and open it`s housing. The daughter PCB is built to be installed into the optical lead between the monitor panel and mainboard of the vehicles monitor. Version 20.08.2021 HW CANM(V100)/(V36) CI-RL4-UCON8-CP... - Page 12 Version 20.08.2021 HW CANM(V100)/(V36) CI-RL4-UCON8-CP...
-
Page 13: Warning Notes, Concerning The Installation Of Ribbon Cables
2) The ribbon cable’s contacting side always has to correspond to the contacting side of the connector, concerning the mounting position. 2.5. Connection – picture signal cable Connect the opposite female 20pin connector of the pre-connected 20pin picture signal cable to the male 20pin connector of the video interface. Version 20.08.2021 HW CANM(V100)/(V36) CI-RL4-UCON8-CP... -
Page 14: Connection - 10Pin Power / Can Cable With Pnp Harness
52pin PNP connector of the 10pin Power/CAN cable. Connect the opposite female 52pin connector of the 10pin Power/CAN cable to the previously become free 52pin connector at the rear-side of the head unit. Version 20.08.2021 HW CANM(V100)/(V36) CI-RL4-UCON8-CP... -
Page 15: Connection - 10Pin Power / Can Cable Without Pnp Harness
Connect the single yellow coloured wire to stabile +12V terminal Connect the single black cable to the vehicle’s negative Ground. Connect the single blue coloured cable to High. Connect the single grey coloured cable to Low. Version 20.08.2021 HW CANM(V100)/(V36) CI-RL4-UCON8-CP... -
Page 16: Power Supply
Connect the female 12pin connector of the 12pin interface cable to the male 12pin connector of the video interface. Connect the 12pin interface cable’s purple coloured wire Manual ACC to +12V ACC terminal 15 or to +12V S-contact terminal 86s +12V (e.g. glove compartment illumination). Version 20.08.2021 HW CANM(V100)/(V36) CI-RL4-UCON8-CP... -
Page 17: Power Supply Output
+12V (max. 3A) when reverse gear is engaged incl. 10 seconds delay after reverse gear is disengaged and +12V by manual switching to front camera by keypad (short press) Dip 1 OFF +12V (max. 3A) ACC Version 20.08.2021 HW CANM(V100)/(V36) CI-RL4-UCON8-CP... - Page 18 Connect the front camera’s video RCA connector to the 12pin interface cable’s female RCA connector „Front V3“. Connect the video RCA of the AV source 1 and 2 to the 12pin interface cable’s female RCA connector “Left (V1)” ”Right (V2)”. Version 20.08.2021 HW CANM(V100)/(V36) CI-RL4-UCON8-CP...
-
Page 19: Audio Insertion
(short press) from any image mode. The power supply output gives +12V then, as well (if Dip 1 is set to ON and the front camera input is selected). Attention: A long press of the external keypad push button will switch the interface to the next source. Version 20.08.2021 HW CANM(V100)/(V36) CI-RL4-UCON8-CP... -
Page 20: After-Market Rear-View Camera
The 12 V power supply for the rear-view camera (max 3A) has to be taken from the green wire of the 20pin cable to avoid an unnecessary, permanent power supply to the camera electronic. For the operation, both green cables “Reverse IN” “Reverse OUT” have to remain onnected. Version 20.08.2021 HW CANM(V100)/(V36) CI-RL4-UCON8-CP... -
Page 21: Case 2: Video Interface Does Not Receive The Reverse Gear Signal
Connect the output connector (87) of the relay to the rear-view camera’s power- cable, like you did it to the green “Reverse-IN” cable before. Connect permanent power / 12V to the relay’s input connector (30). Version 20.08.2021 HW CANM(V100)/(V36) CI-RL4-UCON8-CP... -
Page 22: Connection - External Keypad
Connect the keypad’s female 4pin connector to the 12pin interface cable’s male 4pin connector. Note: Even if the switching through several video sources by the keypad mightn’t be required, the keypad’s invisible connection and availability is strongly recommended. Version 20.08.2021 HW CANM(V100)/(V36) CI-RL4-UCON8-CP... -
Page 23: Interface Operation By External Keypad
Short press of keypad (only if DIP 1 is set to ON) By short pressing the external keypad, the video interfaces switches from the factory video to the front camera input and back to factory video. Version 20.08.2021 HW CANM(V100)/(V36) CI-RL4-UCON8-CP... -
Page 24: Picture Settings
Contrast Brightness Saturation Position H (horizontal) Position V (vertical) IR-AV1/2 (no function) Guide L/R (no function) UI-CNTRL (no function) Size H/V (picture size horizontal/vertical) Note: To adjust the reverse picture settings, engage the reverse gear. Version 20.08.2021 HW CANM(V100)/(V36) CI-RL4-UCON8-CP... -
Page 25: Specifications
7V - 25V Stand-by power drain 15mA Power 160mA @12V Video input 0.7V - 1V Video input formats PAL/NTSC Temperature range -40°C to +85°C Dimensions daughter PCB 116 x 25 x 88mm (W x H x D) Version 20.08.2021 HW CANM(V100)/(V36) CI-RL4-UCON8-CP... - Page 26 Camera input picture fluorescent light which shines Test camera under natural light outside the garage. flickers. directly into the camera. Camera input picture is Protection sticker not Remove protection sticker from lens. bluish. removed from camera lens. Version 20.08.2021 HW CANM(V100)/(V36) CI-RL4-UCON8-CP...
- Page 27 Cut the grey wire of 6pin to 8pin and isolate both Interface switches compatibility to vehicle is ends. If problem still occurs, additionally cut the white video-sources by itself. limited. wire of 6pin to 8pin cable and isolate both ends. 10R-05 0068 Made in China Version 20.08.2021 HW CANM(V100)/(V36) CI-RL4-UCON8-CP...
