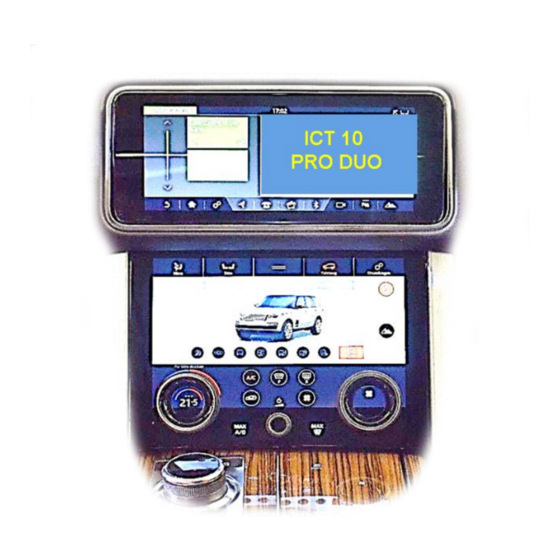

with Incontrol Touch Pro Duo infotainment
Video-inserter for one rear-view camera
Product features
Video-inserter for factory-infotainment systems
1 CVBS Input for rear-view camera
2 CVBS Video-inputs for after-market Video sources (e.g. USB-Player, DVB-T2
Tuner)
Automatic switching to rear-view camera input on engagement of the reverse gear
Activatable parking guide lines for rear-view camera (not available for all vehicles)
Video-in-motion (ONLY for connected video-sources)
Video-inputs NTSC compatible
Version 29.01.2020

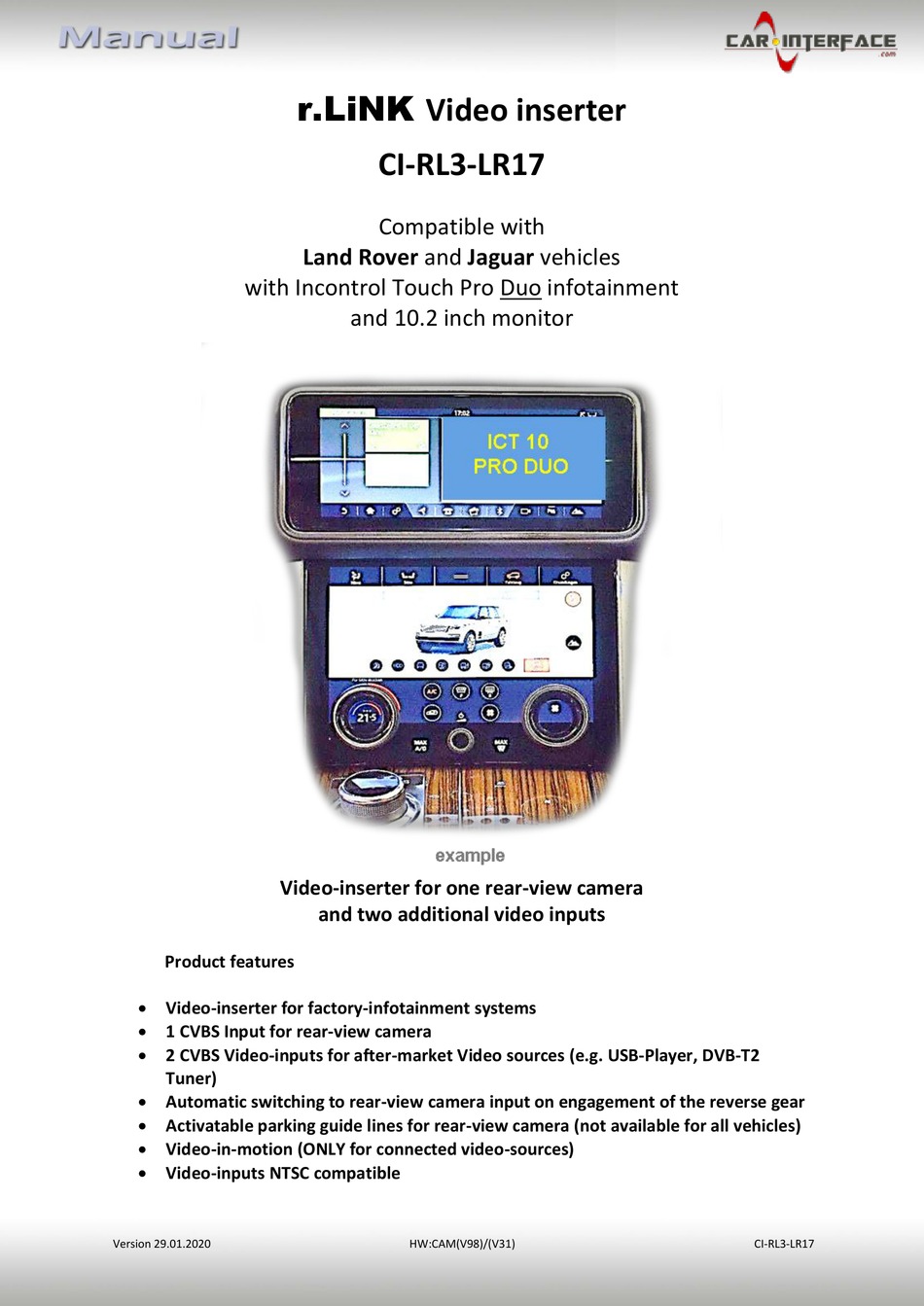

r.LiNK Video inserter
CI-RL3-LR17
Compatible with
Land Rover and Jaguar vehicles
and 10.2 inch monitor
and two additional video inputs
HW:CAM(V98)/(V31)
CI-RL3-LR17
