v.LOGiC Intelligent Solution
Interface
CI-V5-CIC-F-PNP
Compatible with the F-series BMW with
navigation system or radio and 7" or 10.2"
monitor with 4pin HSD
LVDS connector
Version 25.09.2017
CI-V5-CIC-F-PNP

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CI-V5-CIC-F-PNP and is the answer not in the manual?

Questions and answers

Summary of Contents for Car-Interface CI-V5-CIC-F-PNP

  • Page 1 Intelligent Solution Interface CI-V5-CIC-F-PNP Compatible with the F-series BMW with navigation system or radio and 7” or 10.2” monitor with 4pin HSD LVDS connector Version 25.09.2017 CI-V5-CIC-F-PNP...
  • Page 2  Picture-in-picture mode combining after-market rear-view and front camera picture(s) with factory parking sensor graphics  Compatible with all factory video accessories (e.g. rear-view camera, Top-View, nightvison, DVD-changer, TV-tuner)  USB update-port for software-updates by consumer Version 25.09.2017 CI-V5-CIC-F-PNP...
  • Page 3: Table Of Contents

    OSD – On-screen display 4.1.1. OSD – Operation 4.1.1.1. 8-button iDrive 4.1.1.2. 2-button iDrive in Mini 4.1.2. OSD – Additional setting options 4.2. Video-in-motion function 4.3. Selecting the interface as current video source 5. Specifications 6. Connections (interface-box) Version 25.09.2017 CI-V5-CIC-F-PNP...
  • Page 4 To receive a free update, the interface must be sent in at own cost. Labor cost for and other expenses involved with the software-updates will not be refunded. Version 25.09.2017 CI-V5-CIC-F-PNP...
  • Page 5: Prior To Installation

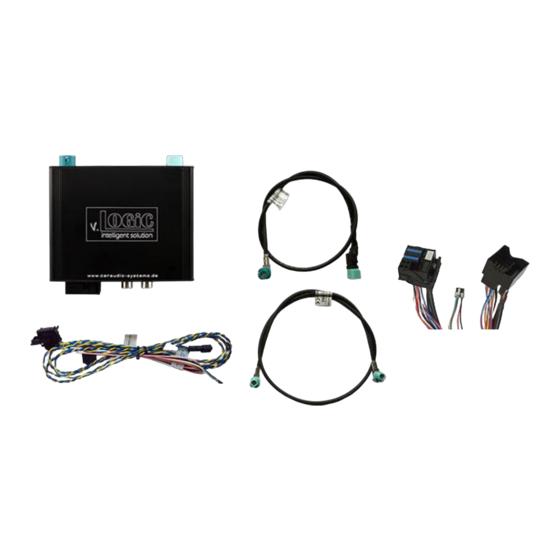

    Interface-box V5C-M636 HW_____ SW_____ TV-BM01 harness V5C-UNI02 LVDS cable harness CAB-HSD-DD075-O 1.1. Check compatibility of vehicle and accessories Requirements Navigation F-series with navigation system or radio with 7“ or 10“ monitor (F-series) with 4pin HSD LVDS connector Version 25.09.2017 CI-V5-CIC-F-PNP...
  • Page 6: Setting The Dip Switches Of The Interface-Box V5C-M636

    No function CIC-F (F-series), 10“ monitor No function After each change of the dip switch settings you have to execute a power reset of the interface-box! 1.3. LED‘s of the interface-box V5C-M636 Valid input source CAN ok Power Version 25.09.2017 CI-V5-CIC-F-PNP...
  • Page 7: Connection Schema

    Back of CAB-HSD-MR-060-OZ head unit 4-Pin HSD LVDS female vehicle harness TV-BM01 harness +12V switching output Rear gear signal input (+12V) Interface-box V5C-M636 FRONT Rear-view camera V5C-UNI02 harness Front camera +12V switching output Quadlock female vehicle harness iDrive Version 25.09.2017 CI-V5-CIC-F-PNP...
  • Page 8: Installation

    Quadlock connector of harness TV-BM01 at the same position. Connect female Quadlock connector of vehicle harness to the male Quadlock connector of harness TV-BM01. Connect female Quadlock connector of harness TV-BM01 to the male Quadlock connector of the navigation computer Version 25.09.2017 CI-V5-CIC-F-PNP...
  • Page 9: Lvds Connection

    4pin HSD LVDS connector (LVDS-OUT) on the rear of the interface-box V5C-M636. Connect the female 4pin HSD LVDS connector of the LVDS cable CAB-HSD-DD075-O to the pink male 4pin HSD LVDS connector on the rear of the head unit. Version 25.09.2017 CI-V5-CIC-F-PNP...
  • Page 10: Connection To The Idrive

    Pin the green/orange cable CAN-high (green cable CAN-low) of the vehicle harness into pin 1 of the included female 2pin AMP connector. Connect female 2pin AMP connector to 2pin AMP connector (yellow/black and blue/black cable) of harness V5C-UNI02. Version 25.09.2017 CI-V5-CIC-F-PNP...
  • Page 11: After-Market Front Camera

    The pink wire of harness V5C-UNI02 can be used for +12V electric power supply (max. 1A) of the after-market front camera. Configure in the OSD- menu “MISC”, menu item “POWER OUT 2” the designated electric power supply (see chapter “Configurable switching outputs”). Version 25.09.2017 CI-V5-CIC-F-PNP...
  • Page 12: Settings For Connecting An After-Market Front Camera

    (e.g. radio). After deactivation you can’t enable the parking process again until the vehicle is diving faster than 20km/h, the ignition is switched off and on or the PDC will be disabled and enabled again, if existing. Version 25.09.2017 CI-V5-CIC-F-PNP...
  • Page 13: After-Market Rear-View Camera

    On some vehicles the reverse light signal doesn’t exist on the CAN-bus. Connect the white wire of harness TV-BM01 to reverse light signal (+12V of reverse light) if the system doesn’t switch to the rear-view camera automatically after the described OSD-setup (see next chapter). Version 25.09.2017 CI-V5-CIC-F-PNP...
  • Page 14: Settings For Connecting An After-Market Rear-View Camera

    (e.g. radio). After deactivation you can’t enable the parking process again until the vehicle is diving faster than 20km/h, the ignition is switched off and on or the PDC will be disabled and enabled again, if existing. Version 25.09.2017 CI-V5-CIC-F-PNP...
  • Page 15: Configurable Trigger Outputs

    +12V when the interface is on (red LED on) Ignition +12V when ignition is on +12V when the rear-view camera input is POWER OUT1 RearCam activated (pink) MISC POWER OUT2 (green) Reverse Gear +12V when reverse gear is engaged Trigger putput deactivated Version 25.09.2017 CI-V5-CIC-F-PNP...
  • Page 16: Picture Settings

    You can change the picture settings in the OSD-menu IMAGE (Operation of the OSD: see chapter “OSD-Operation”). ◦ Brightness ◦ Contrast ◦ Saturation ◦ Hue ◦ Sharpness Note: The picture settings will be retained for each AV-source separately. Version 25.09.2017 CI-V5-CIC-F-PNP...
  • Page 17: Operation

    4. Operation 4.1. OSD – On-screen display You can change the basic configurations of the interface in the OSD (on screen display). 4.1.1. OSD – Operation You can control the OSD by iDrive. 4.1.1.1. 8-button iDrive Version 25.09.2017 CI-V5-CIC-F-PNP...
  • Page 18: 2-Button Idrive In Mini

    (Operation of the OSD: see chapter “OSD-Operation”): OSD-menu Menu item Setting Explication H POSITION 0-xxx Horizontal position of the OSD V POSITION 0-xxx Vertical position of the OSD VERSION X.XX.XX Displays the current SW-version MISC FACTORY RESET Resetting to factory settings Version 25.09.2017 CI-V5-CIC-F-PNP...
  • Page 19: Video-In-Motion Function

    Short press CD button respectively MENU button to switch the video sources (cameras). Each short press will switch to the next enabled input. If all inputs are enabled the order is:   FRONT CAM REAR CAM … Inputs which are not enabled are skipped. Version 25.09.2017 CI-V5-CIC-F-PNP...
  • Page 20: Specifications

    Male 4pin HSD Male 4pin HSD V5C-M636 LVDS connector LVDS connector FRONT Front camera Female input update-connector Mini USB Legal disclaimer: Mentioned company and trademarks, as well as product names/codes are registered trademarks ® of their corresponding legal owners. Version 25.09.2017 CI-V5-CIC-F-PNP...
  • Page 21 Version 25.09.2017 CI-V5-CIC-F-PNP...
