- Page 1 CI-CARPLAY-MMI3G INSTRUCTION MANUAL CarPlay Integration for Audi MMI 3G system Model No. CI-CARPLAY-MMI3G MCU Ver. 06.16 SW Ver. 5.0.X Manual Ver. Date Dec. 21. 2018...
-
Page 2: Table Of Contents
Content: Warning Compatibility Features Package Components Connection Diagram How to connect an external MIC (optional) DIP Setting Operation Instruction How to switch from original to add-on interface Apple CarPlay ... -
Page 3: Warning
△ Warning: In order to protect the driving safety and avoid break the traffic law; please DO NOT operate the interface while driving. The reversing surveillance function just is used in reversing assistance. Please check the entire surroundings while reversing. - Page 4 Please give the feedback to the supplier/manufacturer if there have any questions. Please note that put the disassembled automotive components in a good way on the installation process, avoid scratching the instrument panel, the leftovers of connecting cables need to handle and DO NOT leave it in the car. The connecting plug must be insulated in order to short circuit.
-
Page 5: Compatibility
Compatibility: Brands Model Years Original System Select vehicles with MMI 3G system, A4/S4 2010 - 2015 7.0 inch monitor 4 pin LVDS connector A5/S5 2010 - 2015 2009 - 2011 Audi 2010 - 2017 2009 - 2011 NOTE! NOT available for select vehicles with MMI 3G Basic (Resolution 400*240). -
Page 6: Features
Features: Integrated 3 in 1 module supports Apple CarPlay, Android Auto, and screen mirroring functions Screen mirroring supports both iOS & Android devices Supports USB HD video and lossless music playback (APE, WAV, FLAC, MP3, WMA, etc.) ... -
Page 7: Package Components

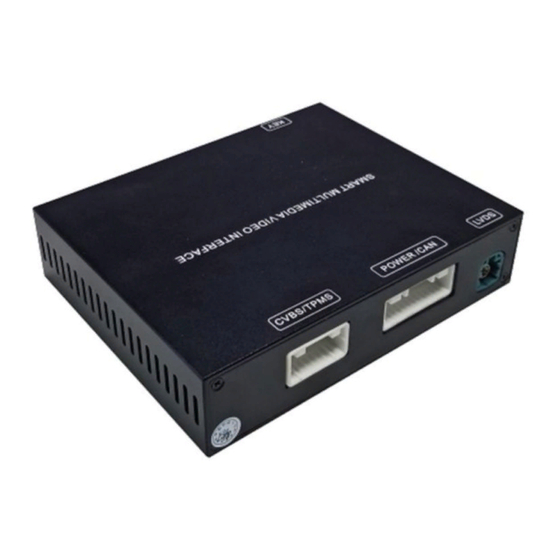

Package Components: Quadlock Main Power Cable 4 pin LVDS Cable Optional Component: Main Unit Dimension: 130*105*30 mm USB Cable External Microphone (Needed when a car without MIC) 7 / 15 www.car-interface.com... -
Page 8: Connection Diagram
Connect to head unit Head Unit Provided female LVDS connects to OEM Screen OEM male LVDS cable from screen Provided 4pin LVDS Quadlock Main Power Cable Cable OEM Quadlock LVDS POWER/CAN Connector CarPlay Integration for Audi MMI 3G Connection Diagram... -
Page 9: How To Connect An External Mic (Optional)
How to connect an external MIC: OEM quadlock connector MIC+ MIC- MIC- MIC+ DONE Connect the external microphone to pinout MIC+ and MIC- of OEM quadlock connector. NOTE! Ignore this page if your car integrates original microphone. 9 / 15... -
Page 10: Dip Setting
DIP Setting: DIP NO. Selection of car model 2013-2017 A4/S4/A5/S5/Q5 2010-2012 A4/S4/A5/S5/Q5 2009-2011 A6/Q7 NOTE! Please reboot the interface for effective after changing any DIP setting. 10 / 15 www.car-interface.com... -
Page 11: Operation Instruction
Operation Instruction: Add on module UI: How to switch from Original to Add-on interface Return to Original Long press “NAV” for 3s Android Apple Order: OEM - Add on - OEM CarPlay Auto Mirroring Add on Module OEM UI... -
Page 12: Apple Carplay
Apple CarPlay NOTE! Disconnect the Bluetooth connection between the phone and car stereo when using Apple CarPlay. Return to add-on module UI ○ ○ : Return to the previous step ○ : Turn the dial to move menu pointer; press for confirm ○... -
Page 13: Android Auto
Android Auto ○ ○ ○ A area ○ B area NOTE! ○ : Click for switching to A area; long press for display the menu of upper left Make sure smartphone connect to original car stereo Bluetooth for phone call audio delivering when using Android Auto. -
Page 14: Mirroring
Mirroring NOTE! Please always trust or allow when display a popup notification Enabling “USB Debugging” on an Android device Connect Android smartphone/iPhone with USB cable, and then Android device must connect to car stereo BT for all audio delivering enter “AutoLink/Airplay”... - Page 15 Copyright © Car-Interface.com. All rights reserved. 15 / 15 www.car-interface.com...
