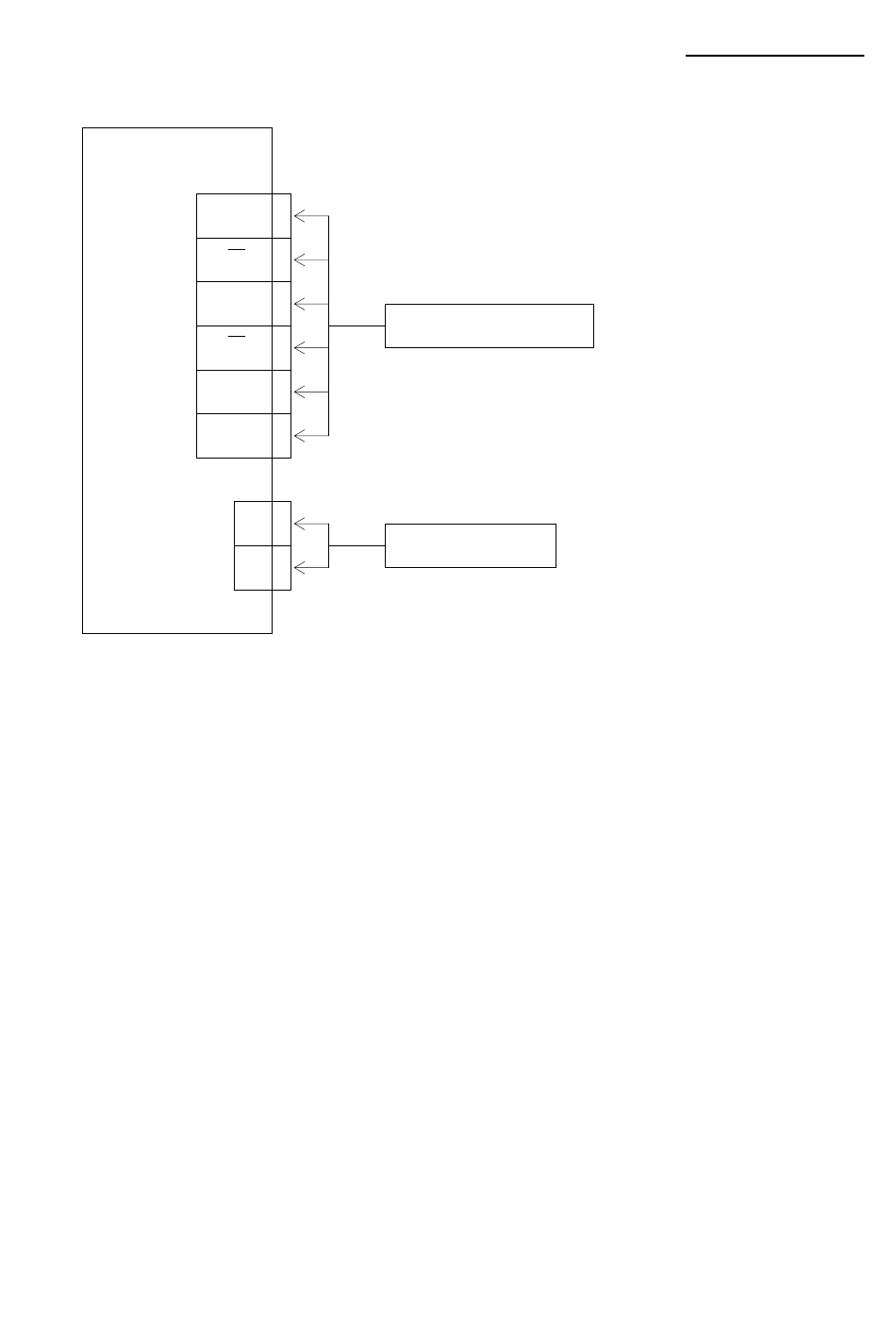

３－２．DC Input/Motor Output Connector（Ｊ２，Ｊ３）
ADB-2F45U
J3
A
A
B
B
A.COM
B.COM
DC+24V DC+ 1
0V DC- 2
３－３．POWER LED
POWER LED(GREEN) comes on upon inputting power.
３－４．O.H.A LED
O.H.A LED（RED）comes on when internal temperature
of the driver has reached approx. 70℃ or more.
1
2
3
Motor output terminal
4
●Outputs current to drive the motor.
5
6
J2
DC input terminal
●Power input terminal.
DC power supply is connected.
