Connecting to

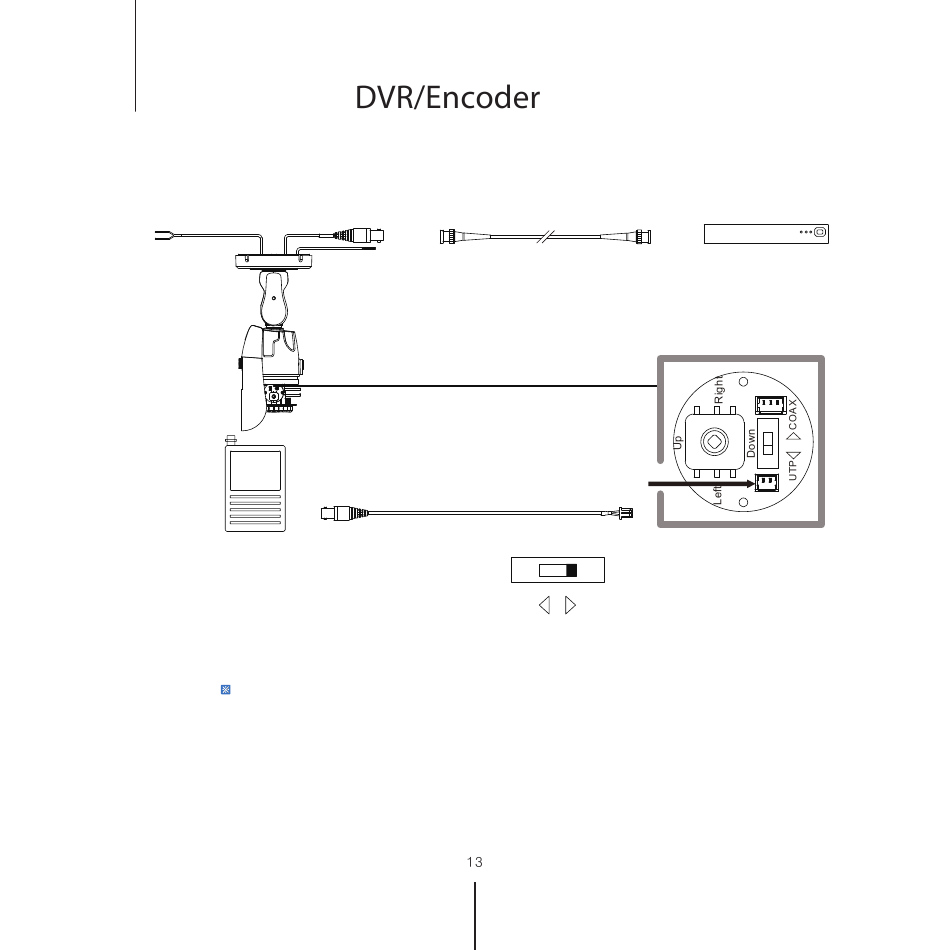

Use the diagram below to connect to an Universal DVR or CRT Monitor properly.
Coax Video Output Mode (Default Mode)
12VDC/24VAC
Monitor
- Power Connection - 12VDC/24VAC Dual Voltage(Auto Polarity Detection and Protection)
- All cameras are equipped with a test video output for on-site configuration.
Note : When switching to UTP/Coax switch to Coax, the image will not be output when switched to UTP.
(Coax)
COAX
Test Video Output
UTP/Coax switch
UTP
COAX
UNIVERSAL DVR
2ND
