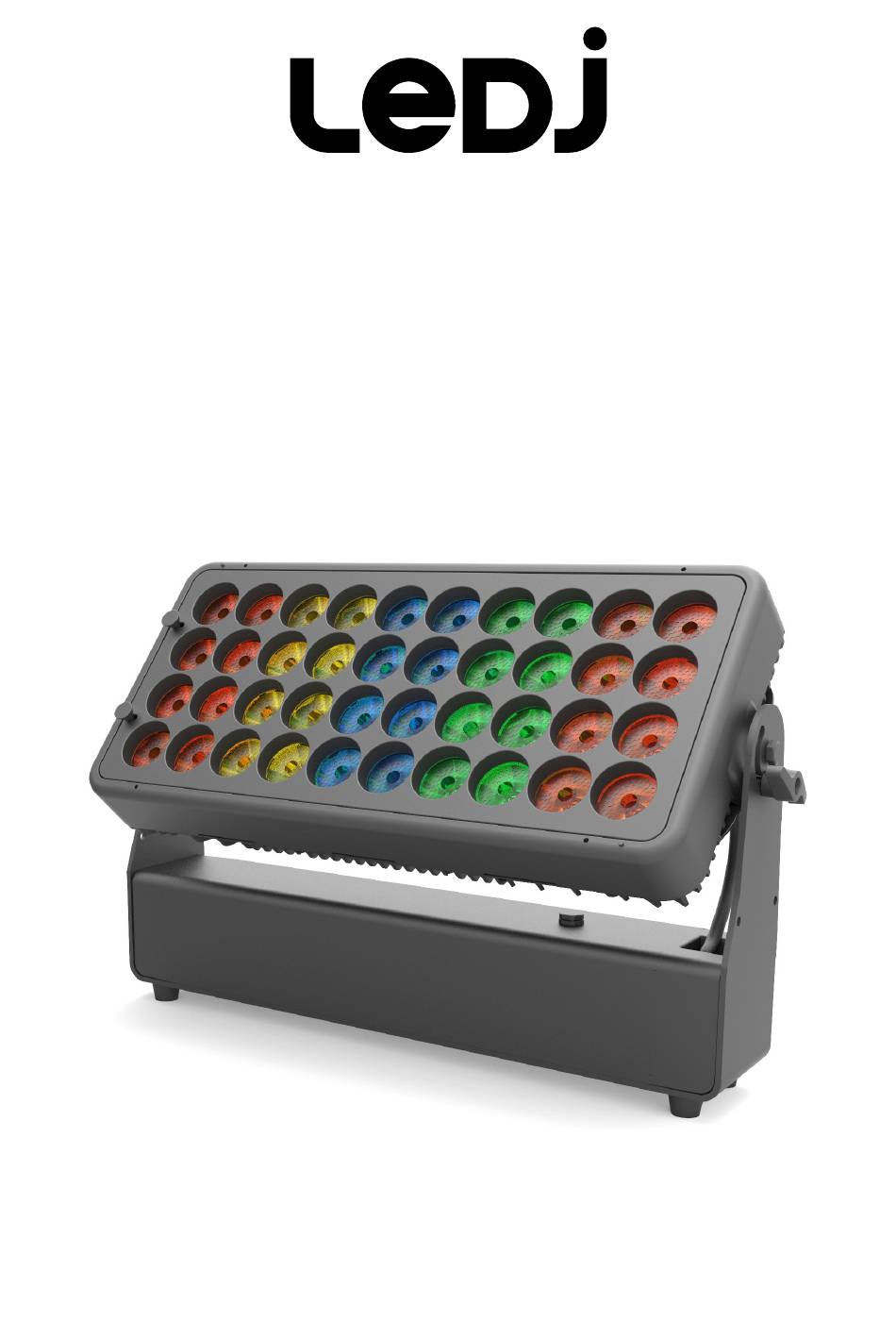

Spectra QX40 Pixel
Exterior Fixture
User Manual
Order code: LEDJ296

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Spectra QX40 Pixel and is the answer not in the manual?

Questions and answers

Related Manuals for Ledj Spectra QX40 Pixel

Summary of Contents for Ledj Spectra QX40 Pixel

  • Page 1 Spectra QX40 Pixel Exterior Fixture User Manual Order code: LEDJ296...

  • Page 2: Safety Advice

    Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk Spectra QX40 Pixel User Manual...
  • Page 3 67600 16910 7555 3360 2720 FULL ON 20420 5220 2320 1374 10100 3089 1360 3707 20860 6147 2768 1291 7475 1989 4070 1327 1460 27210 8041 3594 1670 1290 9670 2500 1113 20° 40° www.prolight.co.uk Spectra QX40 Pixel User Manual...

  • Page 4: Technical Specifications

    06 - PowerCON TRUE1 output 1 x power cable & 03 - Function buttons 07 - IP rated 5-Pin XLR input 1 x user manual 04 - Wireless DMX antenna 08 - IP rated 5-Pin XLR output www.prolight.co.uk Spectra QX40 Pixel User Manual...
  • Page 5 Release the spring clips which will fix the lens in place. Reverse the above steps to release the lens. Underside mounting points: Please note: Only 2 omega clamps supplied. www.prolight.co.uk Spectra QX40 Pixel User Manual...

  • Page 6: Operating Instructions

    5) Red 2 000-255 3) Part Dimmer 6) Green 2 000-255 Zone Manual Dimming Mode 7) Blue 2 000-255 8) White 2 000-255 9) Red 3 000-255 10) Green 3 000-255 11) Blue 3 000-255 www.prolight.co.uk Spectra QX40 Pixel User Manual...
  • Page 7 Reset Factory Defaults Versions: Temperature: 7: Information Fixture Information Signal: UID: PLEASE NOTE: The DMX Synchronisation setting should be set to on when using the built-in presets via DMX to ensure the fixtures stay synchronised. www.prolight.co.uk Spectra QX40 Pixel User Manual...
  • Page 8 Press the “SET” button and use the “UP” and “DOWN” buttons to select “No”. Press the “SET” button to confirm the setting. The green LED will go off to confirm W-DMX has been disabled. To exit out of any of the above options, press the “MENU” button. www.prolight.co.uk Spectra QX40 Pixel User Manual...
  • Page 9 167-172 Deep Blue 173-178 Blue 179-184 Congo Blue 185-190 Surprise Pink 191-196 Fuchsuia Pink 197-202 Follies Pink 203-208 Special Rose Pink 209-214 Pink 215-220 Moroccan Pink 221-226 Warm White 227-232 Cold White 233-255 White www.prolight.co.uk Spectra QX40 Pixel User Manual...
  • Page 10 143-148 State Blue 149-154 Double CT Blue 155-160 Medium Blue 161-166 Just Blue 167-172 Deep Blue 173-178 Blue 179-184 Congo Blue 185-190 Surprise Pink 191-196 Fuchsia Pink 197-202 Follies Pink 203-208 Special Rose Pink www.prolight.co.uk Spectra QX40 Pixel User Manual...
  • Page 11 000-255 White 3 (0-100%) 000-255 Red 4 (0-100%) 000-255 Green 4 (0-100%) 000-255 Blue 4 (0-100%) 000-255 White 4 (0-100%) 000-255 Red 5 (0-100%) 000-255 Green 5 (0-100%) 000-255 Blue 5 (0-100%) 000-255 White 5 (0-100%) www.prolight.co.uk Spectra QX40 Pixel User Manual...
  • Page 12 208-223 Program 13 083-088 Moss Green 224-239 Program 14 089-094 Primary Green 240-255 Program 15 095-100 Dark Green 000-255 Program Speed (slow-fast) 101-106 Green 000-010 No function 107-112 Medium Blue/Green 011-255 Strobe (slow-fast) 113-118 Light Blue www.prolight.co.uk Spectra QX40 Pixel User Manual...

  • Page 13: Dmx Setup

    Please quote: 3-Pin: CABL10 – 2m CABL11 – 5m CABL12 – 10m 5-Pin: CABL185 – 2m CABL187 – 5m CABL188 – 10m Also remember that DMX cable must be daisy chained and cannot be split. www.prolight.co.uk Spectra QX40 Pixel User Manual...
  • Page 14 5-pin XLR (male) 3-pin XLR (female) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk Spectra QX40 Pixel User Manual...
  • Page 15 Please note: Caution should be used when power linking other fixtures to the Spectra QX40 Pixel as the power consumption of other fixtures will vary. Fixtures fitted with lamps often require 2/3 times more current on startup, these may require their own power source.

  • Page 16: Weee Notice

    Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Spectra QX40 Pixel User Manual...
