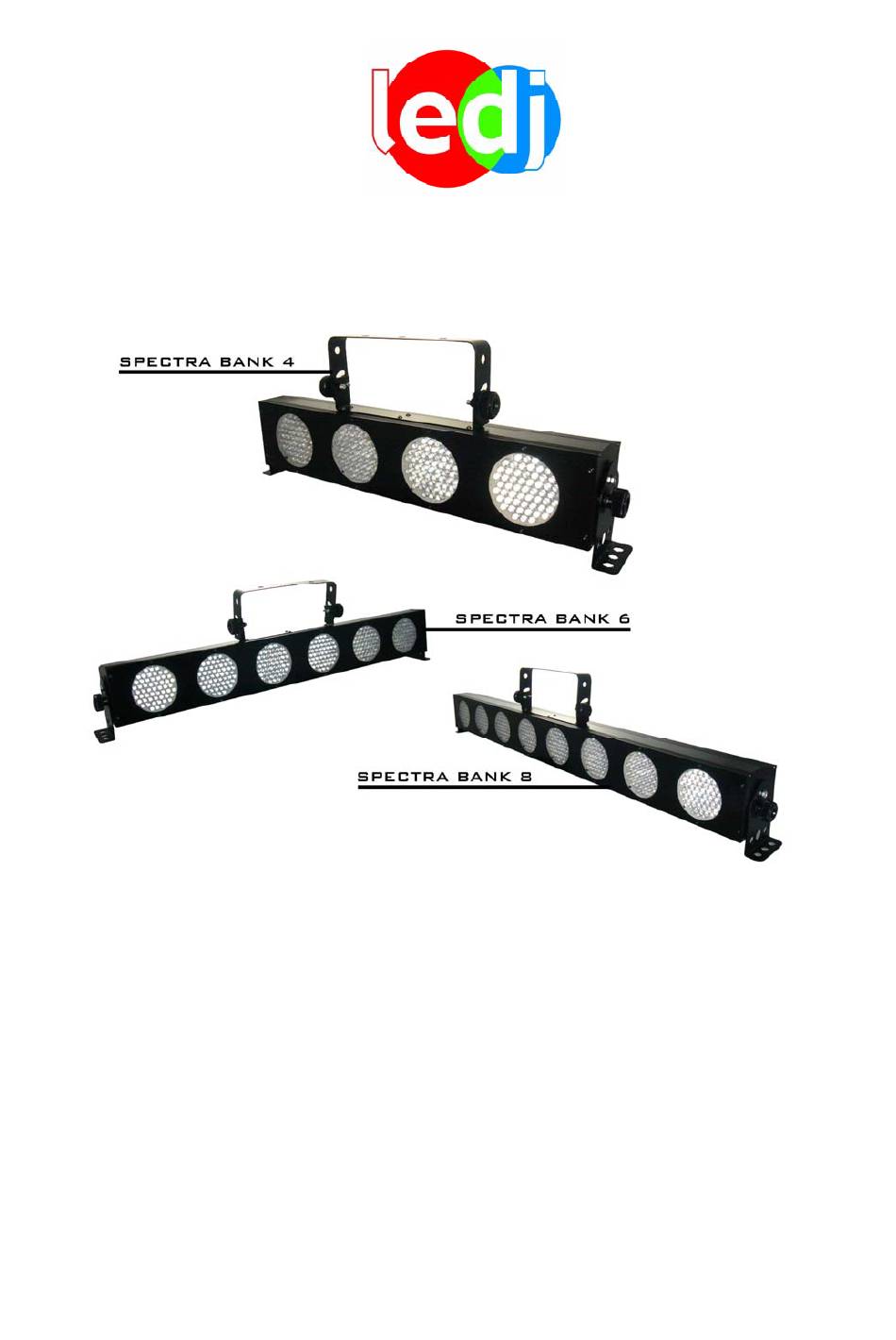

- Page 1 SPECTRA BANK 4, 6 & 8 (ORDER CODES: LEDJ60/LEDJ61/LEDJ62) USER MANUAL...
-
Page 2: Safety Instructions
LEDJ SPECTRA BANK 4, 6, 8 SAFETY WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! Keep this equipment away from rain, Moisture and liquids. SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this... -
Page 3: Operating Determinations
Incorrect operation may lead to danger e.g.: short-circuit, burns, electric shocks, lamp failure etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and property! LEDJ SPECTRA BANK 4, 6, 8 DESCRIPTION... -
Page 4: Front View

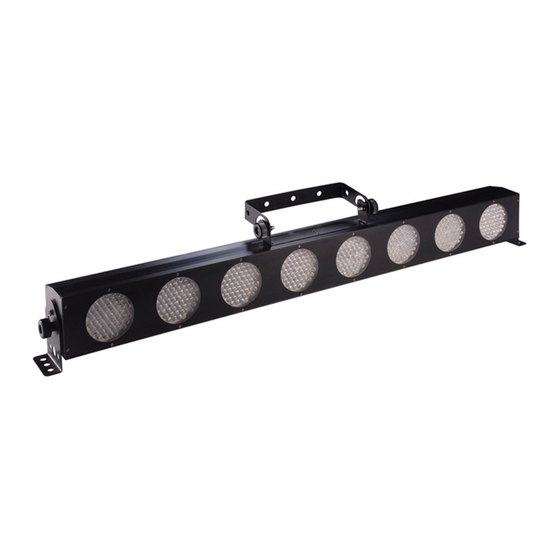

Description of the equipment Features The Spectra Bank is a high output LED spot bank. • Spectra Bank 4 – 4 Spots • Spectra Bank 6 – 6 Spots • Spectra Bank 8 – 8 Spots • Built-in microphone • Linkable •... -
Page 5: Back View
LEDJ SPECTRA BANK 4, 6, 8 BACK VIEW BACK VIEW FIG 2 1) DMX input 2) DMX output 3) Audio sensitivity control 4) LCD menu display 5) Menu selection buttons 6) Internal microphone 7) Power switch 8) Mains socket (fused) - Page 6 LEDJ SPECTRA BANK 4, 6, 8 OPERATION Operation After you have connected the Spectra Banks to the mains, the 10mm LED bar/s start chasing. The LCD display lights up and you can then choose the desired mode via the MODE button: •...
- Page 7 DMX mode The control panel allows you to assign the DMX unit address, which is defined as the first channel from which the Spectra Bank 4, 6 & 8 will respond to the controller. Addressing Press the SET UP button until the display shows DMX mode DMX address 001.
- Page 8 LEDJ SPECTRA BANK 4, 6, 8 CHANNELS...
- Page 9 LEDJ SPECTRA BANK 4, 6, 8 DMX SET UP DMX-512: • DMX (Digital Multiplex) is a universal protocol used as a form of communication between intelligent fixtures and controllers. A DMX controller sends DMX data instructions form the controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture via the DATA “IN”...
- Page 10 LEDJ SPECTRA BANK 4, 6, 8 DMX SET UP Notice: • Be sure to follow figures 2 & 3 when making your own cables. Do not connect the cable’s shield conductor to the ground lug or allow the shield conductor to come in contact with the XLR’s outer casing.
- Page 11 Always disconnect the electric mains power supply before cleaning or servicing. Damages caused by non-observance are not subject to warranty. - The LEDJ Spectra Bank requires almost no maintenance. However, you should keep the unit clean. Wipe the cover with a damp cloth.
